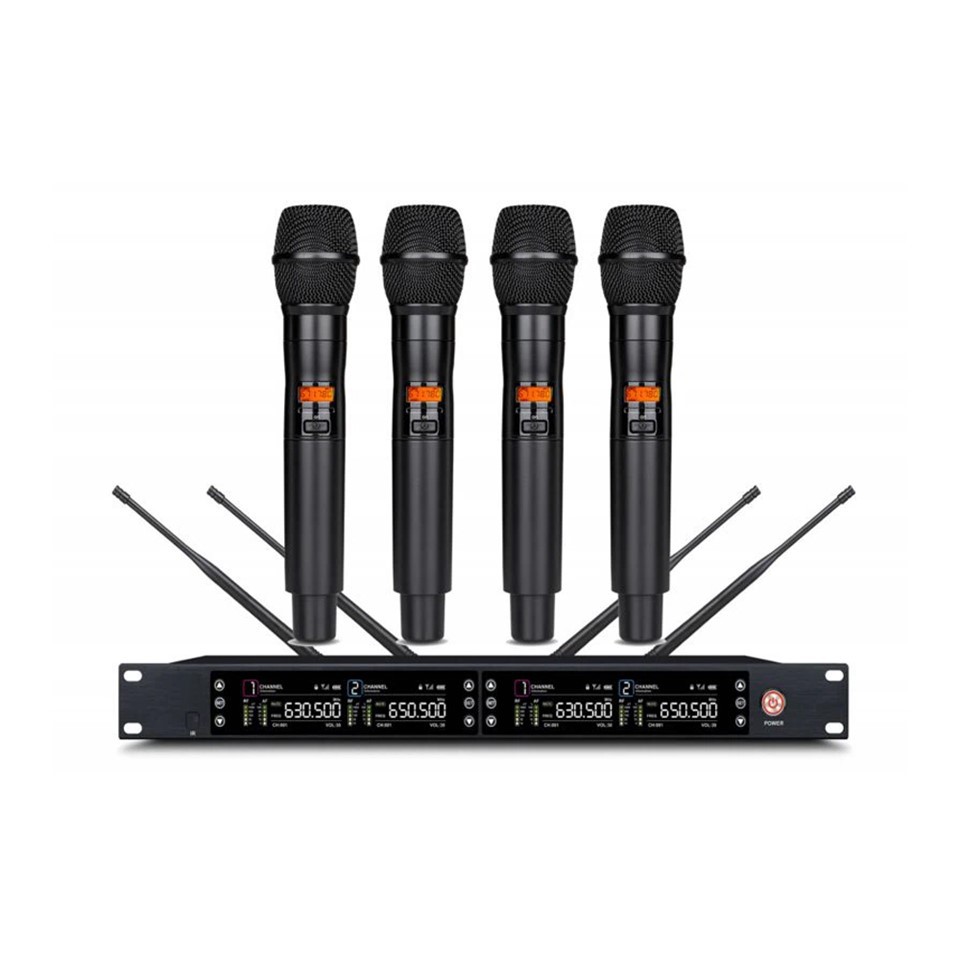

4CH Wireless Handheld Microphone System

Txheej txheem cej luam

Lub kaw lus wireless siv UHF band wireless kis tau tus mob, plaub lub kav hlau txais xov thiab plaub txoj kev tau txais cov teeb liab, thiab muaj 200 txoj kev xaiv, uas yooj yim rau ntau lub tshuab siv tib lub sijhawm thiab yooj yim zam ntau yam cuam tshuam. Rack-mounted receiver yog ib qho yooj yim rau nruab rau ntawm qhov chaw.

Plaub-channel receiver siv plaub lub kav hlau txais xov, ib qho kev tsim tawm, thiab tsis siv neeg taug qab kev siv tshuab los xyuas kom meej tias lub kaw lus tswj kev ruaj ntseg zoo ntawm txhua zaus. Nws yog txawm peem rau nrog plaub handheld condenser microphones, siv high-zoo dynamic pickups, thiab advanced suab kis tau tus mob technology los xyuas kom meej tias lub rooj sib tham chav tsev muaj meej suab zoo thiab siab fidelity.

Nta

UHF zaus band kis tau tus mob teeb liab, infrared zaus txuam, phau ntawv zaus xaiv yog yooj yim rau ntawm qhov chaw debugging;
Siv ruaj khov PLL digital theem-locked voj synthesis thev naus laus zis thiab ntse digital circuit kom tsis txhob cuam tshuam ntau zaus;
Ob txoj kev tuaj yeem tau txais cov teeb liab mus txog 200 raws, uas yog universal rau handheld duav packs, muaj zog tiv thaiv kev cuam tshuam, thiab muaj peev xwm sib txuas lus thiab siv ib leeg nyob rau hauv cov channel, qhia ib tug humanized high-tech tsim;
Txhua channel tau nruab nrog tus lej ID tshwj xeeb los txhim kho kev cuam tshuam kev cuam tshuam, txhawb nqa txog 12 units siv tib lub sijhawm (xws li 12 receivers thiab 24 transmitters);
Lub vaj huam sib luag tswj hwm siv cov txheej txheem xim aluminium alloy, thiab txhua lub channel muaj 3 lub khawm ua haujlwm kom ua tiav ntau txoj haujlwm;
Quadruple LCD zaub npo, qhia txog kev ua haujlwm, kev ua haujlwm zaus, RF tau txais teeb liab, AF suab teeb liab, ntsuas lub ntsuas phoo, lub sijhawm lub zog ntawm lub rooj sib tham, thiab cov lus tawm tswv yim ntawm lub sijhawm ua haujlwm;
Nws muaj qhov hloov suab nrov tshem tawm Circuit Court kom tsis txhob muaj qhov cuam tshuam loj ntawm lub suab thaum tig rau ntawm qhov hloov, ua kom muaj kev nyab xeeb ntawm lub suab nrov tom qab thiab hais lus;
Nws muaj ib qho tseem ceeb tsis siv neeg tshawb nrhiav rau qhov tsis siv neeg zaus cov ntsiab lus thiab ib qho tseem ceeb ntawm kev kaw haujlwm;
Nrog rau kev mob siab rau condenser microphone core thiab nws tus kheej tsim suab ua tshuab, nws zoo txhim kho qhov kev ncua deb thiab kev hais lus meej, nrog cov suab nrov nruab nrab thiab siab zaus, ntau qhov sib txawv, lub suab sib nqus thiab tuab, thiab cov suab nrov ntawm tib neeg, muab kev sib tham zoo dua;
Siv nrug: Qhib ib puag ncig: 80-100 meters Complex ib puag ncig: 50-80 meters

Cim npe nrov: Tuam Tshoj 4ch wireless microphone system manufacturers, lwm tus neeg, Hoobkas

SPECIFICATIONS

Kev ua tau zooNtawm Receiv
Tus naj npawb ntawm cov channel	Plaub channel
RF kev ua haujlwm ntau	640- 690 MH Z (ntau zaus siv tau raws li ntau lub tebchaws thiab cheeb tsam)
Ntau tshaj ntawm cov channel	200
Suab ntau zaus	40 -16 kHz (± 3dB)
Modulation	FM
Harmonic distortion	<0.5% (1kHz, 25mVrms)
Comprehensive signal-to-noise ratio	Ntau dua lossis sib npaug li 60 dB
Dynamic Range	Ntau dua lossis sib npaug li 100 dB
Qhov ntau zaus sib txawv	± 30KHz
Channel sib nrug	250 KHz
Ntau zaus stability	±0.001%
Lub zog specifications	DC 12V / 1.5A
Qhov Loj (L x W x H)	480mm x 180mm x 45mm
Qhov hnyav	1, 85 Kg

Kev ua tau zooNtawm HandheldMicrophone
RF ntau zaus	640- 690MHz (yeem)
rhiab heev	-40 dB
Kev taw qhia	Lub plawv
Pickup Hom:	Lub capacitive
Oscillation hom	PLL
Suab ntau zaus	20Hz - 16KHz (± 3dB)
Ntau zaus stability	±0.001%
Harmonic distortion	<0.5% (1kHz, 25mVrms)
Dynamic Range	Ntau dua lossis sib npaug rau 106dB
Teeb liab-rau-Noise Ratio	9 5 dB(A)
Adjacent Channel Interference Ratio	>80dB ib
Roj teeb Specifications	1.5V AA roj teeb 2 daim
Microphone siv zog	120 mA, roj teeb lub neej: 10-15 teev
Qhov hnyav	0.35 Kg
