Txheej txheem cej luam
SKY-4611 yog multimedia faib kev sib tham sib sib koom ua ke encoder lossis decoder, ib qho kev sib koom ua ke codec, txhawb phau ntawv hloov mus rau encoding lossis decoding node, kev xa tawm kev txhawb nqa ob qho tib si nruab nrab thiab nruab nrab xa tawm hom, uas tuaj yeem xaiv los ntawm kev thov hauv qhov project . Thaum siv los ua qhov encoding node, nws txhawb 3 840 * 2160@60 video teeb liab tau txais thiab encoding; thaum siv los ua ib qho kev txiav txim siab, nws txhawb 8K @ 60 video decoding thiab 3840 x 2160 @ 60 tso zis tso saib.
Nta
High txhais, multi-function
- Txhawb 8K @ 60 video decoding, 3840 * 2160 @ 60 daws teeb meem tso zis zaub;
- Txhawb 3840 * 2160 @ 60 daws teeb meem tau txais thiab encoding;
- Txhawb KVM tus neeg sawv cev thov.
Kev txawj ntse splicing, kev tswj hwm kev sib koom ua ke
- Txhawb synchronous zaub ntawm LED / LCD npo splicing dluab;
- Txhawb kev tswj hwm kev sib koom ua ke thiab kev tswj hwm kev faib tawm platform software;
- Txhawb video duab windowing, cross-screen, roaming, thiab overlay zaub.
Muaj kev nyab xeeb thiab txhim khu kev qha
- Cov chips hauv tsev, embedded Linux system, tsis muaj kab mob;
- Txhawb PoE fais fab mov thiab sab nraud fais fab mov thaub qab;
- Txhawb video tswv yim thiab tso zis redundant thaub qab;
- Txhawb optical link backup.
Kev saib xyuas yooj yim
- Fanless thiab ntsiag to tsim;
- Integrated tsim, manually hloov mus rau encoding los yog decoding;
- Txhawb 2 sab-los-sab installation; Txhawb 8 centralized installation;
- Txhawb lub vev xaib hloov kho tshiab.

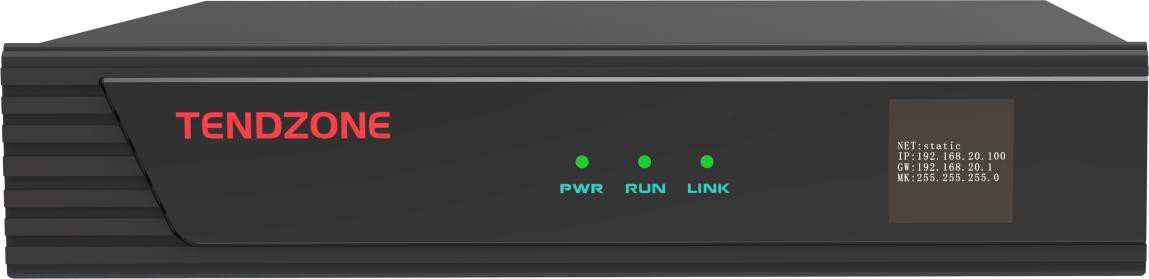

Pem hauv ntejVaj huam sib luag
(1) Lub zog taw qhia (2) Qhov taw qhia ua haujlwm (3) Qhov taw qhia kev sib txuas (4) LCD zaub
Lub Vaj Huam Sib Luag
(1) Hauv av terminal
(2) 3.5 hli headset jack
(3) MIC hauv microphone input chaw nres nkoj
(4) LINE IN stereo input chaw nres nkoj
(5) LINE OUT lub tso suab tso zis chaw nres nkoj
(6) RELAY low-voltage relay chaw nres nkoj
(7) I/O chaw nres nkoj
(8) IR infrared tswj chaw nres nkoj
(9) RS232 tswj chaw nres nkoj
(10) RS485 tswj chaw nres nkoj
(11) debug chaw nres nkoj
(12) 12VDC fais fab chaw nres nkoj
(13) HDMI IN1 input (nrog suab)
(14) HDMI IN2 input (nrog suab)
(15) HDMI OUT1 tso zis (nrog suab)
(16) HDMI OUT2 tso zis (nrog suab)
(17)USB3.0 Hom-A chaw nres nkoj
(18)USB2.0 Hom-A chaw nres nkoj
(19) Kev hloov pauv hloov lossis lub Hoobkas pib dua (nias thiab tuav rau 10 vib nas this)
(20) Hom-C chaw nres nkoj (kho dua tshiab)
(21) SFP Gigabit optical network chaw nres nkoj
(22) PoE Gigabit Ethernet chaw nres nkoj
Cim npe nrov: 4k60 4:4:4 network av encoder/decoder, Tuam Tshoj 4k60 4:4:4 network av encoder/decoder manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
||
|
Kho vajtse Configuration |
Domestic codec nti, tswj tus kheej; tsim raws li embedded Linux system, tsis muaj kev pheej hmoo ntawm tus kab mob los yog Trojan intrusion; |
|
|
Pem hauv ntej vaj huam sib luag |
Lub vijtsam LCD yog 1.3 nti loj thiab qhia txog lub npe ntaus ntawv, ntaus qauv, kho vajtse version, software version, serial tooj, thiab IP chaw nyob cov ntaub ntawv; 3 cov xwm txheej qhia: PWR, RUN, thiab LINK; |
|
|
Video Interface |
2- txoj kev HDMI video input; 2-txoj kev HDMI video tso zis; Txhawb HDMI tsau buckle; |
|
|
Suab Interface |
1- txoj kev 3.5mm lub mloog pob ntseg jack input; 1 sib npaug MIC audio input, txhawb phantom fais fab mov; 1 balanced LINE audio input; 1 sib npaug LINE suab tso zis; |
|
|
Cov ntaub ntawv interface |
{{0}} txoj kev USB 3.0 Host; {{0}} txoj kev USB 2.0 Host; 1 hom-c interface, txhawb OTG; |
|
|
Tswj interface |
1 relay; 1 IO; 1 IR; 1 RS232; 1 RS485; 1 RS232 debug chaw nres nkoj; |
|
|
Lub zog interface |
1 DC fais fab mov interface, 12V / 2A input; |
|
|
Cov cuab yeej siv hluav taws xob |
Tsawg dua lossis sib npaug li 12 W; |
|
|
Kev tiv thaiv tam sim no |
0.25mA |
|
|
Ua haujlwm ib puag ncig |
Qhov kub thiab txias 0 ~ 45 degree; Humidity 10% mus rau 90%; Qhov siab tsawg dua lossis sib npaug li 5,000 meters; |
|
|
Cia ib puag ncig |
Kub -20 degree -60 degree ; Humidity 5% mus rau 90%; Qhov siab tsawg dua lossis sib npaug li 5,000 meters; |
|
|
Kev teeb tsa |
Ob lub 1U txee ntsia ib sab; |
|
|
Loj |
Khoom loj: 220 * 190 * 45mm; Ntim loj: 560 * 408 * 135mm; Net nyhav: 1.28KG; Qhov hnyav tag nrho: 4.12KG; |
|
|
Network Interface |
1 1 000Mbps optical network chaw nres nkoj; 1 1 000Mbps Ethernet chaw nres nkoj, txhawb POE fais fab mov; |
|
|
kev txiav txim siab |
coding |
|
|
Video Input thiab Output |
1 channel 3840 * 2160 @ 60 fps video tso zis; 1 channel 3840 * 2160 @ 60 fps tso zis redundancy thaub qab; Txhawb 3840 * 2160 @ 60fps tso zis daws teeb meem, uas yog rov qab tau tshaj, thiab txhawb kev cai daws teeb meem tso zis; |
1 channel 3840 * 2160 @ 60fps video voj-tawm, 1 ntawm 2 lub voj-tawm interfaces; 1 channel 3840 * 2160 @ 60 video input thiab encoding, 1 channel video input redundant thaub qab; |
|
Video Codec |
Txhawb H 264 / H265 video decoding; Txhawb 8K @ 60 video decoding; |
Txhawb H 264 / H265 video encoding; txhawb encoding peb kwj ib txhij; Txhawb encoding daws teeb meem, nrog 1080P / 720P / FD1 / CIF kev xaiv; Txhawb kev cai kis tus nqi me ntsis, hloov tus nqi me ntsis 128Kbps ~ 100Mbps; txhawb nqa tus nqi hloov pauv ntau yam 5 ~ 60 ntas; |
|
Audio Input thiab Output |
1- txoj kev 3.5mm lub mloog pob ntseg jack input; 2 - txoj kev HDMI OUT suab tso zis ; 1 sib npaug LINE suab tso zis; 1- txoj kev 3.5mm lub mloog pob ntseg tso zis ; |
1- txoj kev 3.5mm lub mloog pob ntseg jack input; 1 sib npaug MIC suab input, txhawb phantom fais fab mov; 1 balanced LINE audio input; HDMI interface audio input; HDMI voj - los ntawm lub interface suab tso zis; |
|
Audio Codec |
AAC dual-channel, G.711a, G.711u, G.722, O PUS suab raws tu qauv, 48KHz 24-ntsis sampling tus nqi; |
Txhawb AAC, G.711a, G.711u, G.722 audio format encoding, 48KHz 24-ntsis sampling tus nqi; |
|
Video Paub |
Txhawb kev qhia tsis siv neeg ntawm EDID txuas ntxiv cov cim qhia; Txhawb HDCP kev tiv thaiv kev cai lij choj; Tau tshaj scan P system thiab interlaced scan i system input; |
|
|
Kev sib txuas lus Network |
Txhawb kev sib txuas lus hla ntu; Txhawb DH CP kom tau txais IP chaw nyob dynamically; Txhawb RTSP/RTP raws tu qauv; Txhawb unicast thiab multicast; |
|
|
Cov cuab yeej siv ua haujlwm thiab tu |
Txhawb kom tau txais cov ntaub ntawv muaj sia nyob ntawm cov cuab yeej, cov ntaub ntawv siv lub cim xeeb, cov ntaub ntawv khiav sijhawm, CPU nyob tus nqi, thiab kev siv disk siv thiab cov ntaub ntawv tu; Txhawb nqa web page configuration; Kev them nyiaj yug network configuration, ntaus ntawv txawj tej yam ntxiv, restart, cav export, configuration ntshuam/export, ntshiab neeg configuration, thiab Hoobkas restore; |
|
|
Subtitles / keeb kwm yav dhau |
Txhawb kev teeb tsa keeb kwm yav dhau; Txhawb subtitle nqis; Txhawb banner zaub; |
|
|
Daim ntawv thov |
Txhawb KVM tus neeg sawv cev daim ntawv thov; Txhawb splicing zaub daim ntaub ntawv; Txhawb ultra-high-resolution video synchronization daim ntawv thov; |
|
