Ceiling Microphone Txheej txheem cej luam

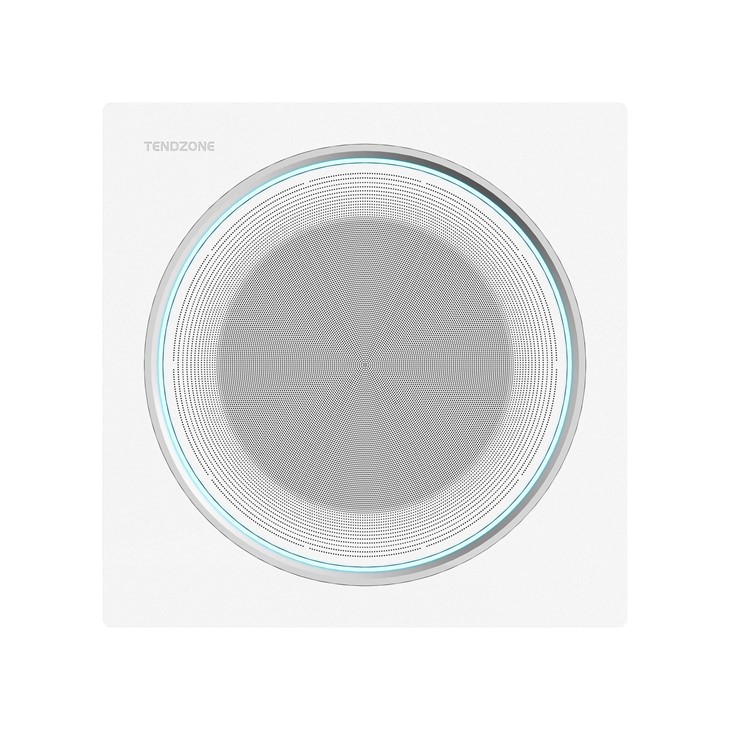

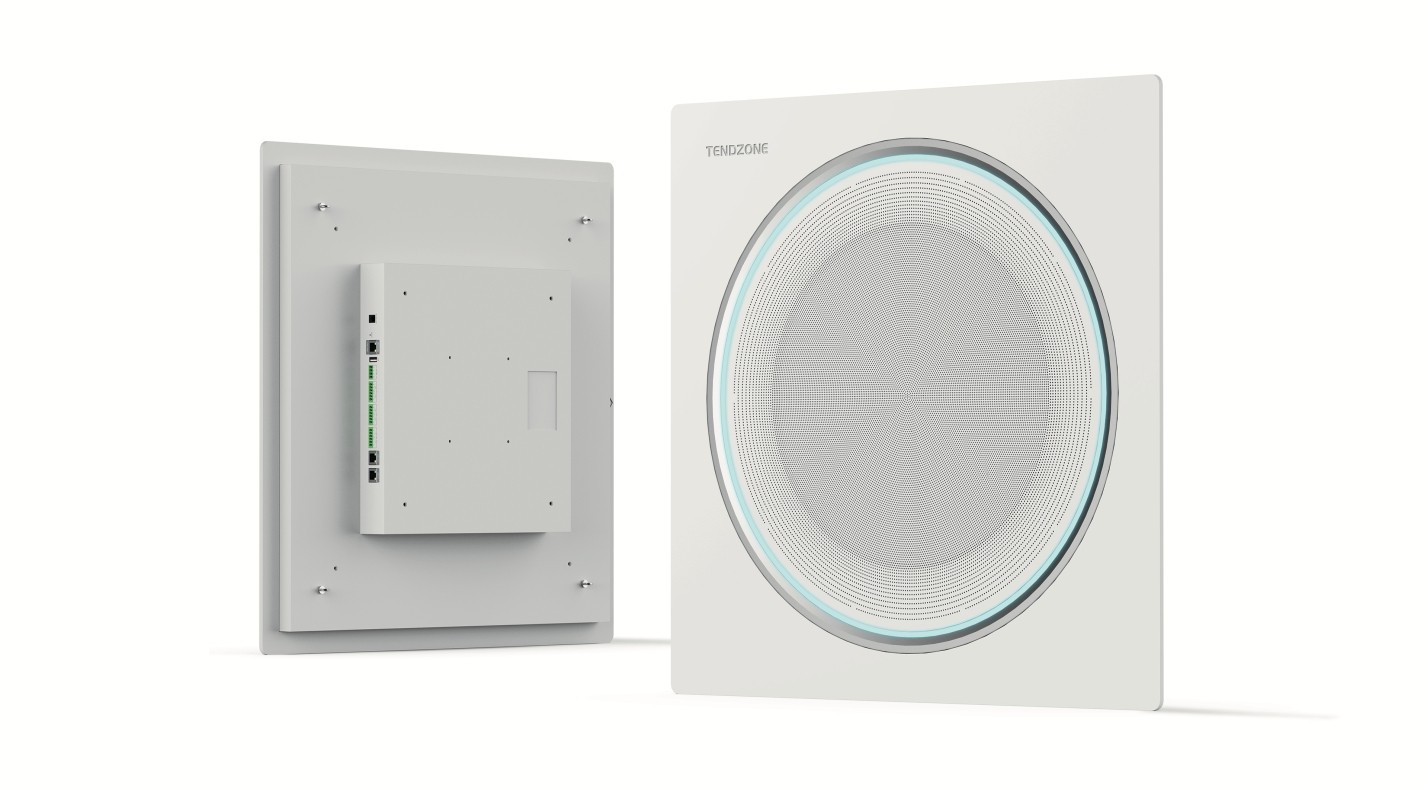

Lub TENDZONE CAM-60 rooj sablaj qab nthab array microphone siv kev lag luam cov thev naus laus zis thev naus laus zis los tsim cov kab teeb tsa tshwj xeeb txhawm rau txhim kho lub teeb liab lub zog hauv lub hom phiaj kev taw qhia, muaj txiaj ntsig zoo thiab txo cov suab nrov thiab cuam tshuam sab nraud ntawm thaj chaw tuaj tos, thiab ua tiav ntau dua yog lub cheeb tsam tuaj tos los ntawm kev tswj hwm ywj pheej thiab kev hloov kho ntawm 12 kab teeb. Lub rooj sablaj qab nthab array microphone muaj ntau yam haujlwm xws li AEC, txo suab nrov, tshem tawm reverberation, tsis siv neeg nce, sib npaug, thiab lwm yam, nws tsim nyog rau lub suab hauv zos, kev sib tham video thiab lwm yam xwm txheej.
Nta
32 MASbulit-hauvmicrophones: nrog lub peev xwm ua tau zoo ntawm lub suab.
12 suab pickup beams: txhua kab teeb npog 33 degrees kom khaws lub suab hauv lub vojvoog ntawm 5 meters.
Beamforming technology: txhawm rau txhim kho lub teeb liab lub zog hauv lub hom phiaj kev taw qhia.
Local suab txhim kho: Lub suab clarity yog txhim kho nyob rau hauv ib lub vojvoog ntawm tsib meters.
Lub suab nrov txo technology: zoo suppresses ib puag ncig lub suab nrov xws li npuaj teg, hneev taw, tapping ntawm lub rooj, tig nplooj ntawv, kev sib txhuam, thiab lwm yam.
Multi-point cascading technology: los npog lub suab khaws cov kev xav tau ntawm cov chaw loj dua
Dantenetwork audiothiabPoE +fais fab mov technology: ib lub network cable daws cov khoom siv hluav taws xob thiab cov teeb liab kis tau tus mob.
Khoom siv
4 steel hlau hlua
Kev teeb tsa
Kev teeb tsa kev ncua: tshem tawm ntawm lub qab nthab nrog 4 steel hlau hlua.
Cim npe nrov: Tuam Tshoj analog qab nthab array microphone manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
|
|
Zaus teb |
160Hz ~ 18KHz ({2}}dB) |
|
Tus nqi piv txwv |
48kHz, 24 ntsis |
|
Ua-hauv DSP |
Beamforming thiab taug qab, dynamic suab nrov txo, AGC, AEC, reverberation tshem tawm, dynamic tawm tswv yim, sib npaug, thiab lwm yam |
|
Number ntawm beam |
12 |
|
Beam dav |
33 degrees |
|

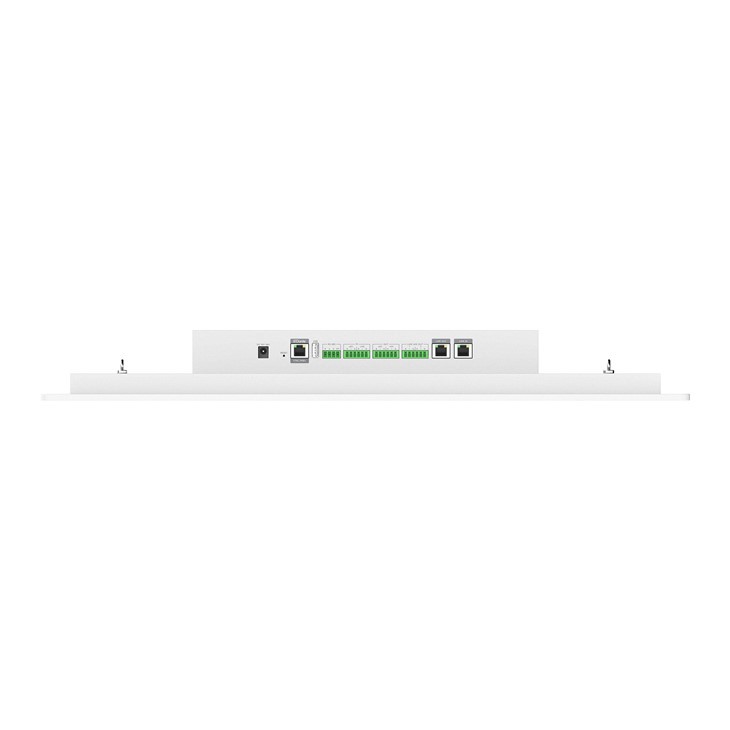

Suab Input/Output |
|
|
Qauv |
CAM-60 |
|
Txuas |
3.81 hli terminal blocks |
|
Number of Analog Channels |
1xAEC hauv thiab 1xLINE IN |
|
Lwm yam kev sib txuas |
|
|
Tswj Chaw nres nkoj |
1xRS485, 3.81mm terminal blocks |
|
LINK Chaw nres nkoj |
1 RJ45 LINK IN, 1 RJ45 LINK OUT |
|
USB |
1 USB rau debugging thiab kho dua tshiab |
|
Hluav taws xob thiab lub cev Parameters |
|
|
Fais fab mov |
DC 12V -36V |
|
Kev siv fais fab |
15W |
|
Ua haujlwm kub |
0 degree -40 degree |
|
Qhov ntev |
600mm x 600mm x 65mm (L x W x H) |
|
Pob loj |
720mm x 720mm x 65mm (L x W x H) |
|
Net nyhav |
5.8KG ib |
|
Shipping Nyhav |
8.35 KWG |
Daim ntawv thov
Cov Rooj Sib Tham
Conference Center
Tsev Teev Ntuj
Rooj zaum
Cov chav kawm
Cov chav kawm
Kev lag luam
Tsev so
Txhua Qhov Tes Tes
