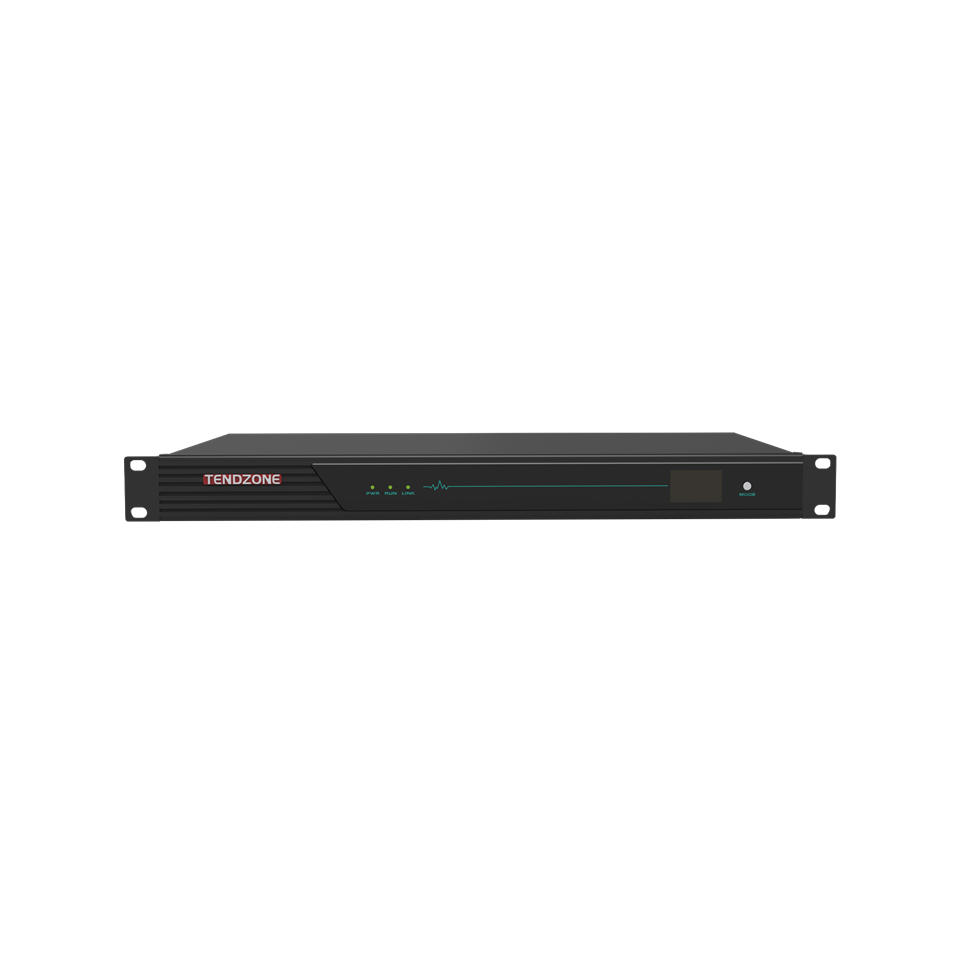

WeGem 1616 DSP Txheej txheem cej luam

Lub Tendzone WebGem 1616 DSP muaj ib qho kev sib xyaw ua ke ntawm cov cuab yeej hloov kho lub suab DSP tsim rau AV integrators. Qhov no DSP nta 16 analog audio inputs thiab outputs, ua tau raws li ntau yam ntawm cov txheej txheem suab. Nrog Tendzone's intuitive Web-UI, DSPs tso cai rau kev tswj hwm ob txoj kev siv RS-232, TCP / IP, thiab GPI, kom ntseeg tau tias muaj kev sib raug zoo nrog ntau lub koom haum thib peb nrov. Rau kev tswj hwm ntawm qhov chaw, cov neeg siv tuaj yeem tsim lub vev xaib tswj hwm tus kheej uas ua haujlwm ntawm ntau lub platform, xws li Windows, iOS, macOS, thiab Android. Tendzone WebGem series sib txuas ua haujlwm ua suab nrov nrog ntau yam kev xaiv, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau AV kev koom ua ke hauv cov chaw xws li chav sib tham, tsev kawm ntawv, tsev so, thiab chav tsev hais plaub.

Nta

Cov cuab yeej nta 16 sib npaug microphone / kab inputs nrog 48V phantom fais fab hloov.
Kev paub tshwj xeeb suab zoo ntawm 48kHz / 24bit.
Qhov optimized preamp nce muaj ntau yam kev hloov kho ntawm 0dB, 10dB, 20dB, 30dB, thiab 40dB, ua rau nws haum rau MIC thiab LINE theem.
Nws suav nrog USB2.0 audio interface rau kaw thiab rov ua haujlwm ntawm USB tsav.
USB-B suab daim npav interface txhawb nqa 2x2 lub suab kis tau tus mob, sib xws nrog cov khoom siv khiav Windows, iOS, Android, thiab HarmonyOS.
Adaptive Echo Cancellation (AEC) zoo tshem tawm cov suab nrov thaum lub rooj sib tham video.
Adaptive Feedback Cancellation (AFC) siv lub high-speed floating-point digital algorithm los txwv cov lus tawm tswv yim ntawm txhua lub microphone channel.
Tsis Siv Neeg Gain Control (AGC) ua kom muaj qhov tso zis zoo ib yam tsis hais tus hais lus nyob deb ntawm lub microphone, muaj txiaj ntsig zoo rau cov neeg mloog.
Ib qho ntse Ducker feature tso cai rau kev yooj yim tsuj ntawm cov suab paj nruag keeb kwm yav dhau, hais txog lub suab meej.
Lub instant teb limiter tiv thaiv cov khoom siv downstream zoo.
Tau txais kev sib koom Automatic Mixing (AM) thiab qhov pib-raws li Automatic Mixing (GAM) ua kom yooj yim rau kev tswj hwm ntawm ntau lub microphone ua ke.
Cov tswv yim thiab cov zis theem tswj tau teeb tsa, txwv qhov siab tshaj plaws thiab yam tsawg kawg nkaus qhov tseem ceeb los txhim kho kev siv tau.
Lub intuitive graphical software tswj interface yog ua raws li B/S architecture, ua kom muaj kev hloov pauv ntawm qhov browser nrog kev txhawb nqa rau Askiv thiab Suav.
Cov neeg siv tuaj yeem hloov kho lub interface, uas yog cross-platform sib xws nrog ntau yam kev khiav haujlwm, suav nrog Android, iPad, Windows, HarmonyOS, thiab KylinOS.
A 1.
Muaj 8 configurable GPIO interfaces uas tuaj yeem teeb tsa ntawm software rau kev tawm tswv yim lossis tso tawm.
Lub cuab yeej txhawb nqa cov txheej txheem tswj hwm thib peb, tso cai rau kev tswj hwm thiab tswj ntawm UDP lossis RS-232.

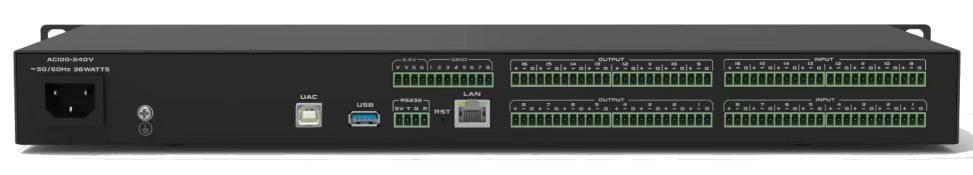

Lub Vaj Huam Sib Luag

607

Cim npe nrov: Tuam Tshoj 16x16 web based audio processor manufacturers, lwm tus neeg, Hoobkas

SPECIFICATIONS

Kev ua tau zoo
Kev teb zaus (A/D/A)	20Hz-20kHz (± 0.5dB)
Tus nqi piv txwv	48kHz, 24 ntsis
Dynamic Range (A/D/A)	>110dB,A-qhov hnyav (20Hz-20kHz@0dB nce)
THD	Tsawg dua lossis sib npaug rau 0.005%@1kHz, +4dBu
Latency (A / D / A)	5.8 mS, inputs routed rau outputs
Noise Floor (A-weighted)	Tsawg dua los yog sib npaug rau -90dBu
Crosstalk	Tsawg dua los yog sib npaug rau -105dB@+20dBu,1kHz
S/N ratio	>110dB,A-qhov hnyav (20Hz-20kHz@0dB nce)
Kev cais tawm Channel	Tsawg dua los yog sib npaug rau -105dB@+20dBu,1kHz
Preset Numbers	50
Suab Input/Output
Qauv	TIAB SA 1616
Txuas	3.81 hli terminal blocks
Number of Analog Channels	16in16 ua
Phantom Hwj chim	DC 48 ± 6V, 10mA
Input Impedance	2KΩ sib npaug
Cov zis impedance	200Ω sib npaug
Qib siab tshaj tawm	20dB ib
Qib tso zis ntau tshaj	20dB ib
Max Input Gain	40dB ib

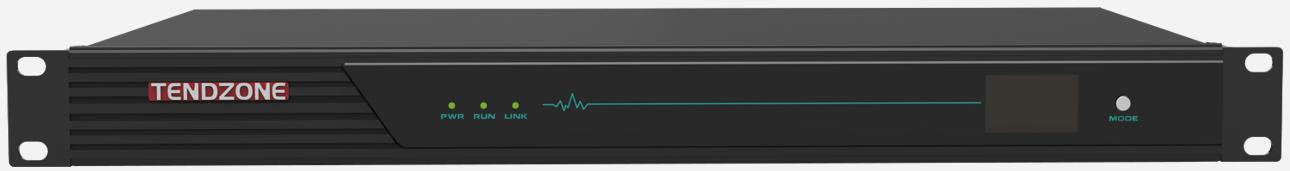

Pem hauv ntej vaj huam sib luag
Qhov taw qhia Teeb	Fais fab/RUN/LINK
Zaub Screen	1.8 "xim LCD zaub Qhia lub npe ntaus ntawv, tus IP chaw nyob, cov tswv yim / tso zis theem thiab cov xwm txheej tsis zoo, qhov chaw tam sim no, software version
Xaiv Khawm	Ib lub laub-rau-tig khawm

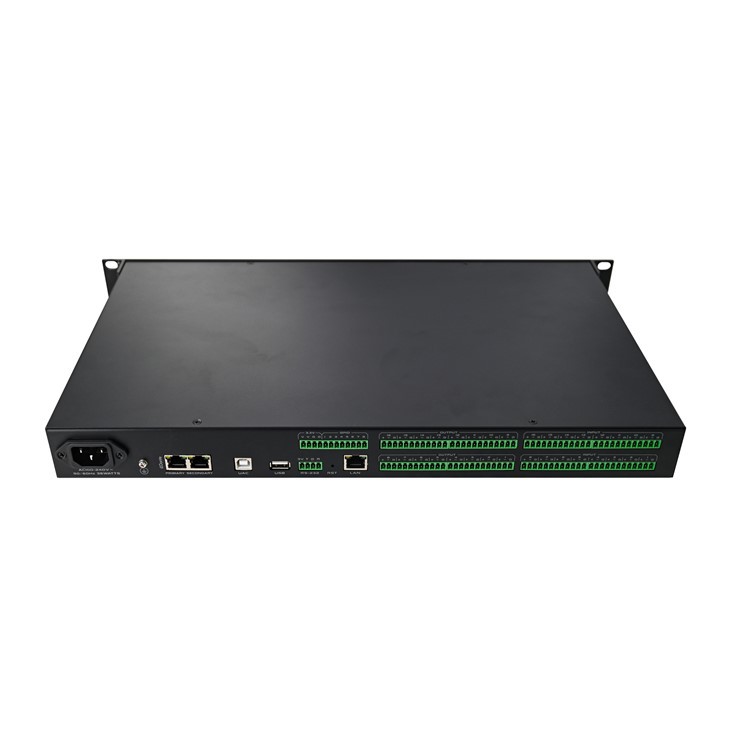

Lub Vaj Huam Sib Luag
UAC (USB Bidirectional Audio)	2x2 suab daim npav, piv txwv tus nqi 48kHz, 16 ntsis, interface hom USB-B, cov ntaub ntawv kis raws tu qauv USB2.0;
USB	Hom interface yog USB-A thiab cov ntaub ntawv hloov chaw yog USB2.0. Txhawb cov ntaubntawv povthawj siv thiab playback, tuaj yeem ua si MP3 / WAV hom suab ntaub ntawv, txhawb FAT32 hom U disk, kaw cov ntaub ntawv hom WAV
TSI RS232	4pin 3.81 Phoenix davhlau ya nyob twg
GPIO	8ch, Customized input thiab output, 12pin 3.81 Phoenix davhlau ya nyob twg
LAN (TCP / IP Network Chaw nres nkoj)	Ethernet 10/100/1000MB RJ45
Hluav taws xob thiab lub cev Parameters
Fais fab mov	AC 100-240V ± 10%, 50/60Hz
Kev siv fais fab	24W
Ua haujlwm kub	0 degree -45 degree
txheeb ze humidity	30%-70％R.H.
Qhov ntev	484mm * 280mm * 44mm
Pob loj	570mmx410mmx135mm
Net nyhav	3.1Kg ib
Shipping Nyhav	3.6 Kg
