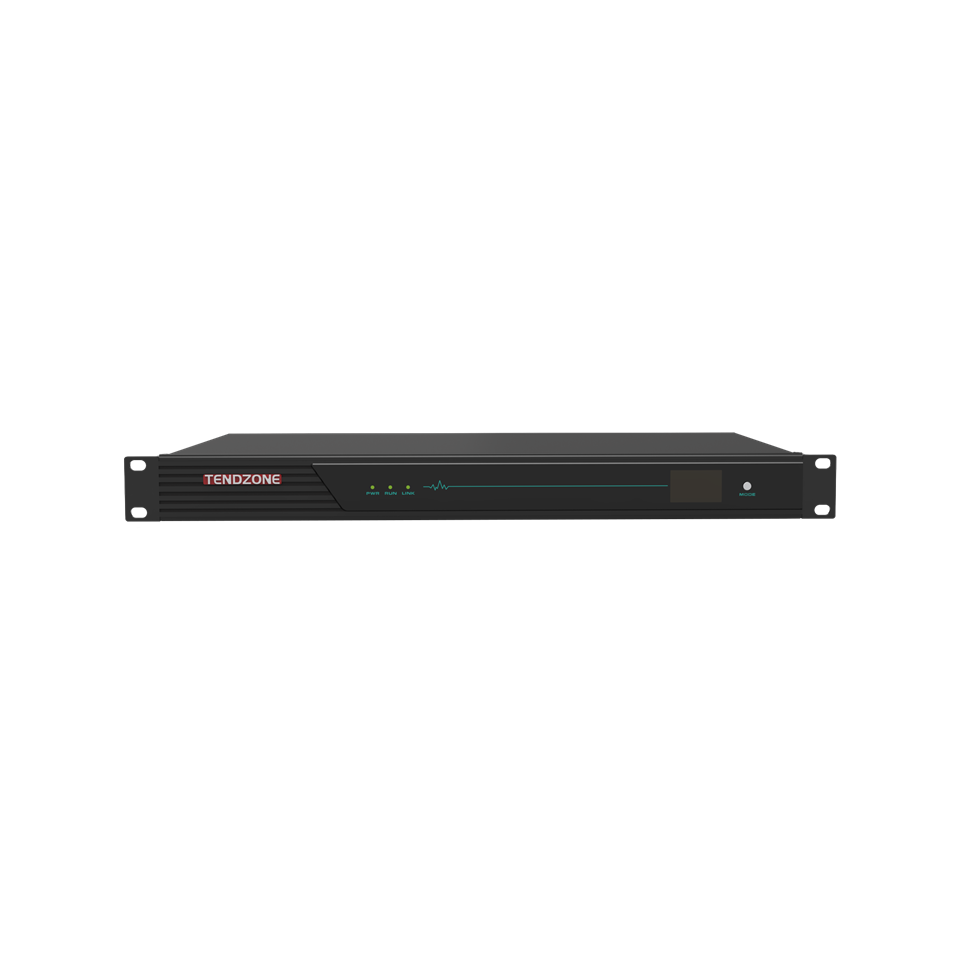

WeGem 0808 DSP Txheej txheem cej luam

Lub WebGem 0808 DSP los ntawm Tendzone nthuav tawm cov khoom siv dav dav ntawm ntau yam suab DSP cov cuab yeej tsim tshwj xeeb rau AV integrators. WeGem 0808 DSP muaj yim analog audio input channels thiab yim analog audio output channels.

Tendzone tus neeg siv-phooj ywg Web-UI interface, DSPs txhawb cov txheej txheem kev tswj xyuas ob sab ntawm RS-232, TCP / IP, thiab GPI, ua rau lawv sib xws nrog cov neeg thib peb cov kev tswj hwm nrov. Rau kev tswj hwm chav hauv zos, cov neeg siv tuaj yeem tsim qhov kev cai web tswj interface uas ua haujlwm thoob plaws ntau lub platform, suav nrog Windows, iOS, macOS, thiab Android.

Tendzone WebGem series muab lub peev xwm ua suab nrov ua ke nrog cov kev xaiv tswj tau yooj yim, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau AV kev sib koom ua ke, dav siv hauv chav sib tham, kev kawm, tsev so, tsev hais plaub thiab lwm yam.

Nta

Comprehensive DSP: Txhua tus qauv suav nrog Automatic Gain Control (AGC), compressor/limiter, expander, matrix mixing, thiab tus qauv 5-band parametric EQ.Tus neeg hais lus adaptable processor muaj 10, 15, lossis 31-band equalization, ncua, crossover, thiab filtering.
Txhim kho lub suab Clarity: Adaptive Echo Cancellation (AEC) thiab Adaptive Feedback Cancellation (AFC) technologies, kom ntseeg tau lub suab zoo tshaj plaws rau txhua daim ntawv thov.
Suab Zoo: Muab 24-ntsis/48kHz suab zoo, nrog 16 in/16 tawm Dante network suab uas yog AES67 tau tshaj.
Intelligent Ducker:DUCKER muaj nuj nqi txo cov suab paj nruag keeb kwm yav dhau thaum hais lus.
Nws pib Mix:Tau txais kev sib koom hom (AM) thiab qhov pib hom (GAM) pib sib xyaw los tswj ntau lub microphone tso tawm.
Limiter:Tiv thaiv cov khoom siv rov qab los ntawm kev puas tsuaj, ua kom lub neej ntev ntawm koj lub suab.
Customization Options: Peb muab customizable user control interfaces, tso cai rau cov neeg siv los tsim lawv tus kheej cov neeg siv interfaces los ntawm cov nplooj ntawv web rau kev ncaj ncees.
Muti tswj muaj nuj nqi: Nrog RS-232, TCP/IP thiab GPIO interfaces rau kev tswj kom tiav.
Tus neeg siv-phooj ywg Web-UI: Yooj yim configuration los ntawm ib tug ncaj graphical interface, sib xws nrog ntau lub platforms xws li Windows, iOS, macOS, thiab Android.
USB interface:USB2.

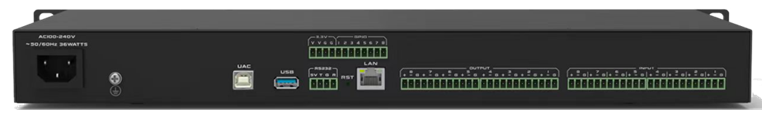

Lub Vaj Huam Sib Luag

product-764-117

Cim npe nrov: Tuam Tshoj 8x8 web raws li suab processor manufacturers, lwm tus neeg, Hoobkas

SPECIFICATIONS

Kev ua tau zoo
Kev teb zaus (A/D/A)	20Hz-20kHz (± 0.5dB)
Tus nqi piv txwv	48kHz, 24 ntsis
Dynamic Range (A/D/A)	>110dB,A-qhov hnyav (20Hz-20kHz@0dB nce)
THD	Tsawg dua lossis sib npaug rau 0.005%@1kHz, +4dBu
Latency (A / D / A)	5.8 mS, inputs routed rau outputs
Noise Floor (A-weighted)	Tsawg dua los yog sib npaug rau -90dBu
Crosstalk	Tsawg dua los yog sib npaug rau -105dB@+20dBu,1kHz
S/N ratio	>110dB,A-qhov hnyav (20Hz-20kHz@0dB nce)
Kev cais tawm Channel	Tsawg dua los yog sib npaug rau -105dB@+20dBu,1kHz
Preset Numbers	50
Suab Input/Output
Qauv	wb 0808
Txuas	3.81 hli terminal blocks
Number of Analog Channels	8in8 ua
Phantom Hwj chim	DC 48 ± 6V, 10mA
Input Impedance	2KΩ sib npaug
Cov zis impedance	200Ω sib npaug
Qib siab tshaj tawm	20dB ib
Qib tso zis ntau tshaj	20dB ib
Max Input Gain	40dB ib
Pem hauv ntej vaj huam sib luag
Qhov taw qhia Teeb	Hwj chim/RUN/LINK
Zaub Screen	1.8 "xim LCD zaub Qhia lub npe ntaus ntawv, tus IP chaw nyob, cov tswv yim / tso zis theem thiab cov xwm txheej tsis zoo, qhov chaw tam sim no, software version
Xaiv Khawm	Ib lub laub-rau-tig khawm
Lub Vaj Huam Sib Luag
UAC (USB Bidirectional Audio)	2x2 suab daim npav, piv txwv tus nqi 48kHz, 16 ntsis, interface hom USB-B, cov ntaub ntawv kis raws tu qauv USB2.0;
USB	Hom interface yog USB-A thiab cov ntaub ntawv hloov chaw yog USB2.0. Txhawb cov ntaubntawv povthawj siv thiab playback, tuaj yeem ua si MP3 / WAV hom suab ntaub ntawv, txhawb FAT32 hom U disk, kaw cov ntaub ntawv hom WAV
TSI RS232	4pin 3.81 Phoenix davhlau ya nyob twg
GPIO	8ch, Customized input thiab output, 12pin 3.81 Phoenix davhlau ya nyob twg
LAN (TCP / IP Network Chaw nres nkoj)	Ethernet 10/100/1000MB RJ45
Hluav taws xob thiab lub cev Parameters
Fais fab mov	AC 100-240V ± 10%, 50/60Hz
Kev siv fais fab	24W
Ua haujlwm kub	0 degree -45 degree
txheeb ze humidity	30%-70％R.H.
Qhov ntev	484mm * 280mm * 44mm
Pob loj	570mmx410mmx135mm
Net nyhav	3. 0Kg
Shipping Nyhav	3.5 Kg
