Txheej txheem cej luam

Tendzone ADM2150 amplifier yog lub tshuab hluav taws xob digital ua haujlwm siab, siv cov cuab yeej siv qib D qib siab, tsim tshwj xeeb rau cov neeg siv uas nrhiav tshwj xeeb suab zoo thiab yooj yim. Qhov no amplifier boasts ib qho kev ua tau zoo ntawm ntau tshaj 90%, kom ruaj khov cov zis txawm nyob rau hauv hnyav load, muab kev txhawb zog rau koj cov khoom siv suab.

Nrog nws cov qauv tsim ultra-slim 1U, lub tshuab hluav taws xob no yog lub teeb yuag thiab yooj yim heev rau nqa thiab nruab, ua rau nws zoo meej rau ntau yam kev ua yeeb yam thiab suab tshuab. Tsis tas li ntawd, nws muaj kev tiv thaiv kev ua haujlwm zoo, suav nrog kev txwv tsis siv neeg tso tawm, luv luv Circuit Court, overloading, overheating, thiab fais fab tuag qeeb, ua kom koj cov cuab yeej ua haujlwm nyab xeeb hauv ib puag ncig, yog li txuas ntxiv nws txoj sia. Tsis tas li ntawd, lub amplifier suav nrog kev ncua kev pib ua haujlwm kom zoo tiv thaiv cov neeg hais lus los ntawm kev cuam tshuam, tiv thaiv kev puas tsuaj.

Nta

Siv Class D thev naus laus zis, kev hloov pauv kev ua haujlwm tuaj yeem ncav cuag ntau dua 90%;
1U tsim, lub teeb lub cev, yooj yim nqa thiab nruab;
Tsis siv neeg txwv qhov tso zis, luv luv Circuit Court, overload, tshaj qhov kub, lub zog-ntev ncua thiab lwm yam kev tiv thaiv kev ua haujlwm;
Lub amplifier tau nruab nrog lub sijhawm pib qeeb los tiv thaiv cov neeg hais lus los ntawm kev puas tsuaj vim muaj kev cuam tshuam;

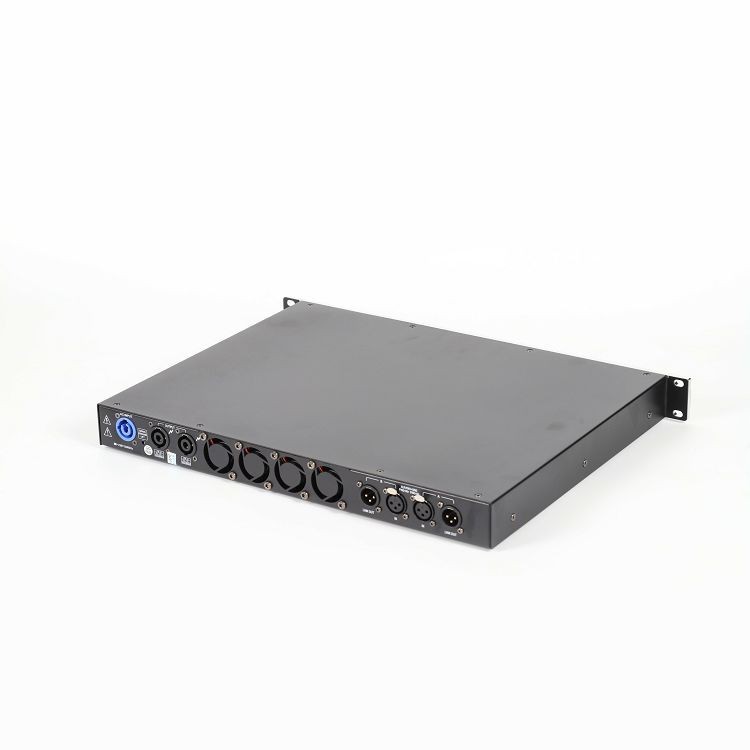

Lub rear vaj huam sib luag yog nruab nrog dual-channel, ib-channel, thiab choj tso zis hloov dua siab tshiab;
Sib npaug input interface, SPEAKON tso zis;
Lub amplifier switching fais fab mov muaj qhov sib cais txias;
Lub kiv cua txias yog tswj los ntawm qib siab stepless ceev-hloov Circuit Court.

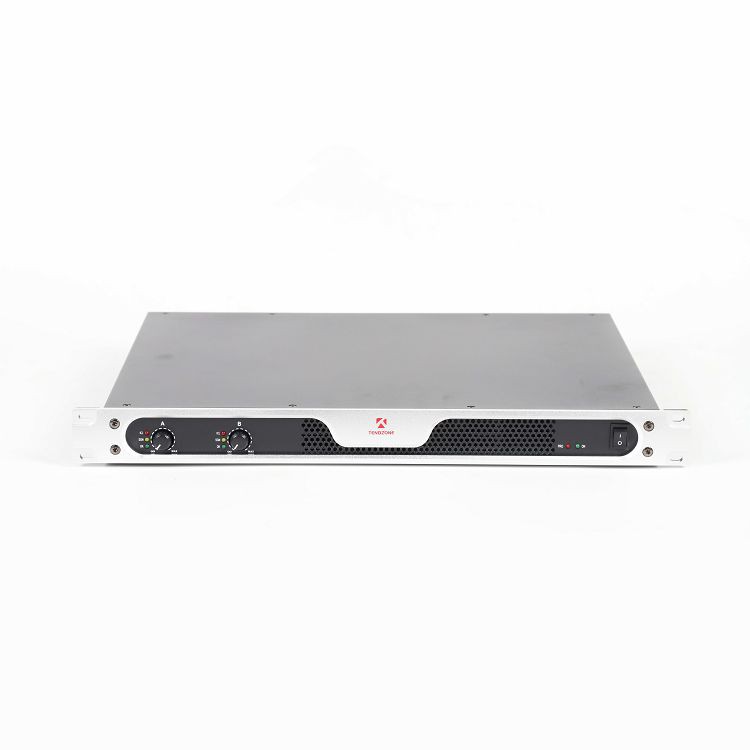

Lub Vaj Huam Sib Luag

Cim npe nrov: Tuam Tshoj 2ch digital fais fab amplifier manufacturers, lwm tus neeg, Hoobkas

SPECIFICATIONS

Kev ua tau zoo
Tus naj npawb ntawm cov channel	2 aav
Stereo hom @8Ω, txhua channel	150W
Lub tso suab hom @4Ω, txhua channel	250W
Choj hom @8Ω	500W
Zaus teb	20 Hz -20 kHz (± 3 dB)
Teeb liab-rau-Noise Ratio/S/N	Ntau dua lossis sib npaug li 80dB
Tag nrho Harmonic Distortion	Tsawg dua lossis sib npaug rau 0.05% (8Ω, 150W)
Input rhiab heev	+4dB * (1.23V)
Input Impedance	10kΩ (electronically sib npaug)
Dimensions (W x H x D)	483 × 45 × 240 hli
net luj	3.4kg ib
Cov tswv yim (CH1-2)	XLR Input Connectors
Cov zis (CH1-2)	Hais lus tso zis
