WeGem 0808 DSP Txheej txheem cej luam
Lub WebGem 0808 DSP los ntawm Tendzone yog nruab nrog lub zog muaj zog ntawm ntau lub hom phiaj suab DSP cov cuab yeej tsom rau AV integrators. Nws nta yim analog audio input thiab output channels, thiab nws 16x16 tsim txhawb Dante ™ teeb liab txuas ntxiv, hais txog ntau qhov xwm txheej ntawm kev ua suab. Nrog rau qhov yooj yim-rau-siv Web-UI, DSPs txhawb cov txheej txheem kev tswj hwm ob txoj kev los ntawm RS-232, TCP / IP, thiab GPI, kom ntseeg tau tias lawv ua haujlwm zoo nrog cov neeg thib peb tswj hwm. Tsis tas li ntawd, cov neeg siv tuaj yeem teeb tsa lub vev xaib kev tswj hwm lub vev xaib rau thaj chaw ua haujlwm hauv chav, sib xws nrog cov platforms xws li Windows, iOS, macOS, thiab Android. Tendzone's WebGem series sib koom ua ke lub zog ua suab nrov nrog kev tswj hwm kev hloov pauv, ua rau nws yog ib qho kev daws teeb meem zoo tshaj plaws rau AV kev koom ua ke hauv cov chav sib tham, ib puag ncig kev kawm, tsev so, thiab chav tsev hais plaub.
Nta
1. Inputs thiab Outputs:
- Lub kaw lus suav nrog 16 qhov sib npaug microphone / kab nkag nrog lub qhov muag muag rau kev ua kom lub zog 48V phantom.
- Nws muaj 16 qhov sib npaug ntawm cov kab tawm thiab txhawb nqa lub network suab los ntawm 16x16 Dante nrog AES67 kev sib raug zoo.
2. Audio Quality:
- Cov neeg siv tau txais txiaj ntsig zoo ntawm lub suab zoo ntawm qhov piv txwv ntawm 48kHz thiab 24- ntsis tob.
3. Preamplifier Nta:
- Lub preamp yog optimized rau qhov sib txawv nce qib, kho tau ntawm 0dB, 10dB, 20dB, 30dB, thiab 40dB, haum rau MIC thiab LINE signals.
4. Suab Interfaces thiab kev sib txuas:
- Cov cuab yeej suav nrog USB2.0 suab interface rau kev kaw thiab rov qab los ntawm USB drives.
- USB-B suab daim npav interface ua rau muaj 2x2 lub suab sib txuas rau cov khoom siv ntawm Windows, iOS, Android, thiab HarmonyOS rau kev sib kis ntawm ob lub suab.
5. Kev Tso Tawm Tshuab:
- Lub Adaptive Echo Cancellation (AEC) feature zoo tshem tawm cov suab nrov thaum hu video.
- Lub Adaptive Feedback Cancellation (AFC) siv lub nrawm nrawm-point digital algorithm los tswj cov lus qhia rau txhua lub microphone.
6. Tau Txais Kev Tswj thiab Ducker Feature:
- Tsis Siv Neeg Gain Control (AGC) tuav lub ntim tso zis tsis tu ncua, ywj siab ntawm tus neeg hais lus nyob deb ntawm lub microphone.
- Qhov ntse Ducker feature tso cai rau cov neeg siv kom yooj yim txwv cov suab paj nruag keeb kwm yav dhau los txhawm rau txhim kho lub suab kom meej.
7. Kev tiv thaiv thiab kev sib xyaw nta:
- Cov lus teb tam sim limiter tiv thaiv cov khoom siv qis los ntawm kev thauj khoom ntau dhau.
- Lub kaw lus txhawb nqa kev sib koom tsis siv neeg sib xyaw (AM) thiab qhov pib-raws li kev sib xyaw tsis siv neeg (GAM) rau kev tswj hwm ntau lub microphones.
8. Input/Output Level Management:
- Cov neeg siv tuaj yeem teeb tsa qhov tshwj xeeb rau kev tawm tswv yim thiab tso zis ntau ntau, nrog rau qhov siab tshaj plaws thiab yam tsawg kawg nkaus kom tswj tau yooj yim dua.
9. Graphical Software Control:
- Lub graphical control interface, raws li B/S architecture, tso cai rau kev hloov pauv suab hauv web browsers, muaj ua lus Askiv lossis Suav.
- Nws tuaj yeem hloov kho rau cov neeg siv khoom nyiam thiab sib xws nrog ntau yam kev khiav haujlwm, suav nrog Android, iPad, Windows, HarmonyOS, thiab KylinOS.
10. Zaub thiab GPIO Interfaces:
- A 1.
- Nws nta 8 GPIO interfaces uas tuaj yeem teeb tsa raws li kev tawm tswv yim lossis kev tso tawm los ntawm kev teeb tsa software.
11. Cov Txheej Txheem Thib Peb Kev Tswj Xyuas:
- Lub kaw lus txhawb qhib cov txheej txheem tswj hwm thib peb ntawm UDP lossis RS -232 rau kev tswj hwm thiab kev ua haujlwm.
Lub Vaj Huam Sib Luag
Cim npe nrov: Tuam Tshoj 16x16 web raws li dante audio processor manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
||||
|
Kev teb zaus (A/D/A) |
20Hz-20kHz (± 0.5dB) |
|||
|
Tus nqi piv txwv |
48kHz, 24 ntsis |
|||
|
Dynamic Range (A/D/A) |
>110dB,A-qhov hnyav (20Hz-20kHz@0dB nce) |
|||
|
THD |
Tsawg dua lossis sib npaug rau 0.005%@1kHz, +4dBu |
|||
|
Latency (A / D / A) |
5.8 mS, inputs routed rau outputs |
|||
|
Noise Floor (A-weighted) |
Tsawg dua los yog sib npaug rau -90dBu |
|||
|
Crosstalk |
Tsawg dua los yog sib npaug rau -105dB@+20dBu,1kHz |
|||
|
S/N ratio |
>110dB,A-qhov hnyav (20Hz-20kHz@0dB nce) |
|||
|
Kev cais tawm Channel |
Tsawg dua los yog sib npaug rau -105dB@+20dBu,1kHz |
|||
|
Preset Numbers |
50 |
|||
|
Suab Input/Output |
||||
|
Qauv |
wb 0808 |
TIAB SA 1616 |
wb 0808d |
WebGem 1616D |
|
Txuas |
3.81 hli terminal blocks |
|||
|
Number of Analog Channels |
8in8 ua |
16in16 ua |
8in8 ua |
16in16 ua |
|
Tus naj npawb ntawm Dante Channel |
/ |
16in16 ua |
16in16 ua |
|
|
Phantom Hwj chim |
DC 48 ± 6V, 10mA |
|||
|
Input Impedance |
2KΩ sib npaug |
|||
|
Cov zis impedance |
200Ω sib npaug |
|||
|
Qib siab tshaj tawm |
20dB ib |
|||
|
Qib tso zis ntau tshaj |
20dB ib |
|||
|
Max Input Gain |
40dB ib |
|||
|
Pem hauv ntej vaj huam sib luag |
||||
|
Qhov taw qhia Teeb |
Fais fab/RUN/LINK |
|||
|
Zaub Screen |
1.8 "xim LCD zaub Qhia lub npe ntaus ntawv, tus IP chaw nyob, cov tswv yim / tso zis theem thiab cov xwm txheej tsis zoo, qhov chaw tam sim no, software version |
|||
|
Xaiv Khawm |
Ib lub laub-rau-tig khawm |
|||
|

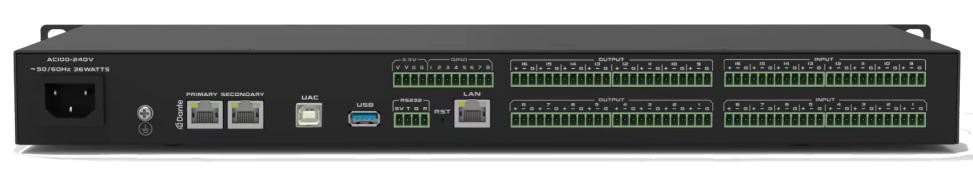

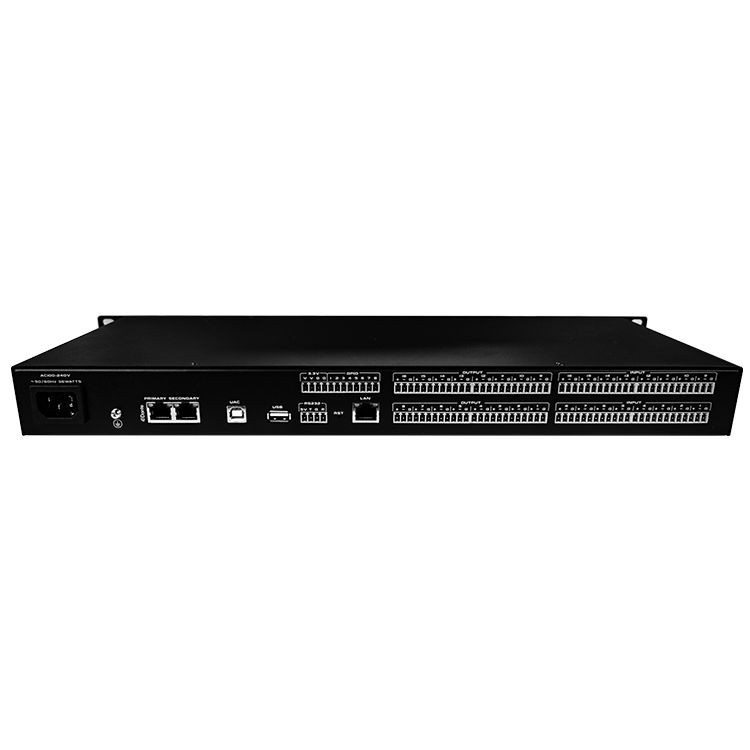

Lub Vaj Huam Sib Luag |
||||
|
UAC (USB Bidirectional Audio) |
2x2 suab daim npav, piv txwv tus nqi 48kHz, 16 ntsis, interface hom USB-B, cov ntaub ntawv kis raws tu qauv USB2.0; |
|||
|
USB |
Hom interface yog USB-A thiab cov ntaub ntawv hloov chaw yog USB2.0. Txhawb cov ntaubntawv povthawj siv thiab playback, tuaj yeem ua si MP3 / WAV hom suab ntaub ntawv, txhawb FAT32 hom U disk, kaw cov ntaub ntawv hom WAV |
|||
|
Dante PRIMARY & SECONDARY |
/ |
2X1000MRJ-45; 16x16; Txhawb redundancy, hloov hom; |
||
|
TSI RS232 |
4pin 3.81 Phoenix davhlau ya nyob twg |
|||
|
GPIO |
8ch, Customized input thiab output, 12pin 3.81 Phoenix davhlau ya nyob twg |
|||
|
LAN (TCP / IP Network Chaw nres nkoj) |
Ethernet 10/100/1000MB RJ45 |
|||
|
Hluav taws xob thiab lub cev Parameters |
||||
|
Fais fab mov |
AC 100-240V ± 10%, 50/60Hz |
|||
|
Kev siv fais fab |
24W |
36W |
||
|
Ua haujlwm kub |
0 degree -45 degree |
|||
|
txheeb ze humidity |
30%-70％R.H. |
|||
|
Qhov ntev |
484mm * 280mm * 44mm |
|||
|
Pob loj |
570mmx410mmx135mm |
|||
|
Net nyhav |
3. 0Kg |
3.1Kg ib |
3.1Kg ib |
3.2 Kg |
|
Shipping Nyhav |
3.5 Kg |
3.6 Kg |
3.6 Kg |
3.7Kg ib |
