Txheej txheem cej luam
Tendzone ADM2150 amplifier yog lub tshuab hluav taws xob digital ua haujlwm siab, siv cov cuab yeej siv qib D qib siab, tsim tshwj xeeb rau cov neeg siv uas nrhiav tshwj xeeb suab zoo thiab yooj yim. Qhov no amplifier boasts ib qho kev ua tau zoo ntawm ntau tshaj 90%, kom ruaj khov cov zis txawm nyob rau hauv hnyav load, muab kev txhawb zog rau koj cov khoom siv suab.

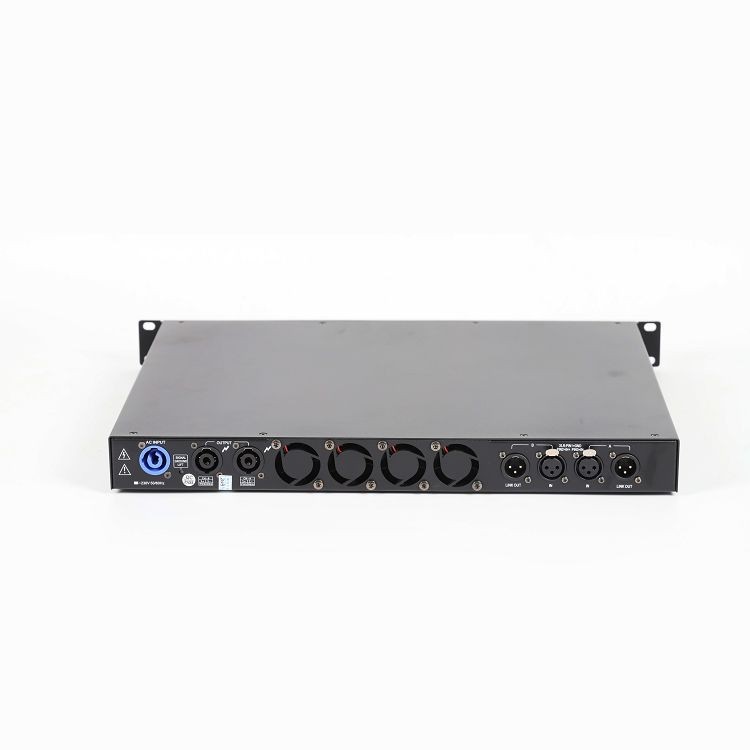

Nyob rau hauv cov nqe lus ntawm cov zis, lub rear vaj huam sib luag yog tsim los nrog saj zawg zog kev xaiv rau dual-channel, ib leeg-channel, thiab bridging outputs kom tau raws li cov kev xav tau ntawm daim ntawv thov sib txawv. Nws yog txawm peem rau nrog balanced input interfaces thiab SPEAKON outputs, muab ruaj khov thiab txhim khu kev qha kev sib txuas.
Txhawm rau txhim kho kev ua haujlwm txias, lub tshuab hluav taws xob hloov pauv lub zog muaj qhov ua kom txias txias, kom ntseeg tau tias cov cuab yeej tseem txias txawm tias nyob rau hauv cov xwm txheej siab. Lub kiv cua txias siv cov cuab yeej ua haujlwm tsis tu ncua tsis tu ncua ceev Circuit Court tswj tshuab, tso cai rau nws tuaj yeem kho cov kiv cua nrawm raws li lub tshuab hluav taws xob lub sijhawm ntsuas kub, ua kom muaj kev ua haujlwm ntsiag to.
Nta
- Ua haujlwm Class D thev naus laus zis, lub tshuab hluav taws xob no ua tiav ntau dua 90% kev hloov dua siab tshiab.
- Lub compact 1U daim ntawv zoo ua rau nws hnav thiab yooj yim rau kev thauj thiab nruab.
- Nws suav nrog ntau yam kev tiv thaiv xws li kev txwv tsis siv neeg tso zis, kev tiv thaiv luv luv, kev tiv thaiv overload, kev tiv thaiv thermal, thiab lub hwj chim-on ncua feature.
- Lub kaw lus ncua kev pib yog kev sib koom ua ke los tiv thaiv cov neeg hais lus los ntawm kev puas tsuaj tshwm sim los ntawm kev nce siab.
- Lub vaj huam sib luag nram qab muaj cov kev xaiv rau dual-channel, ib-channel, thiab txuas cov khoom tsim tawm.
- Features sib npaug input interface nrog rau SPEAKON tso zis sib txuas.
- Lub switching fais fab mov yog nruab nrog ib tug ywj siab txias mechanism.
- Lub kiv cua txias siv qhov sib txawv ntawm qhov sib txawv ntawm qhov ceev tswj Circuit Court rau kev ua haujlwm zoo.
Cim npe nrov: Tuam Tshoj 2ch digital fais fab amplifier manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
|
|
Tus naj npawb ntawm cov channel |
2 aav |
|
Stereo hom @8Ω, txhua channel |
350W |
|
Lub tso suab hom @4Ω, txhua channel |
550W |
|
Choj hom @8Ω |
1100W |
|
Zaus teb |
20 Hz -20 kHz (± 3 dB) |
|
Teeb liab-rau-Noise Ratio/S/N |
Ntau dua lossis sib npaug li 80dB |
|
Tag nrho Harmonic Distortion |
Tsawg dua lossis sib npaug rau 0.05% (8Ω, 350W) |
|
Input rhiab heev |
+4dB * (1.23V) |
|
Input Impedance |
10kΩ (electronically sib npaug) |
|
Dimensions (W x H x D) |
483 × 45 × 240 hli |
|
net luj |
3.4kg ib |
|
Cov tswv yim (CH1-2) |
XLR Input Connectors |
|
Cov zis (CH1-2) |
Hais lus tso zis |
