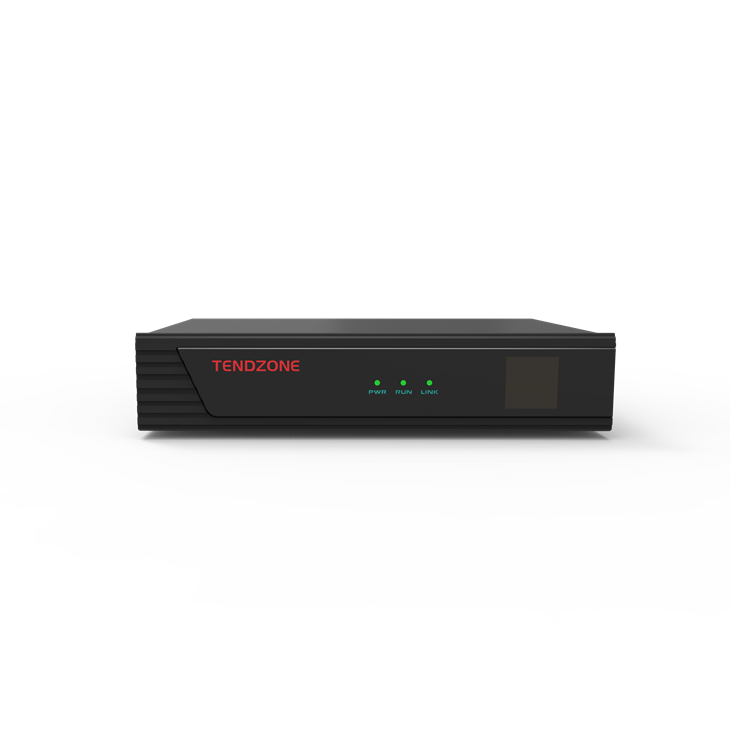

Amber NV880 Txheej txheem cej luam
Amber NV880 yog ib qho kev faib tawm hauv lub network audio input thiab output node, muab 8 channel analog audio input thiab 8 channel analog tso zis. Nws txhawb Tendzone Vailink raws tu qauv nrog 8x8 raws. Nws yog tswj hwm thiab teeb tsa los ntawm lub platform software ua ib feem ntawm kev sib koom ua ke. Cov cuab yeej no feem ntau yog muab tso rau ze rau pem hauv ntej-kawg multimedia qhov chaw lossis rov qab-kawg fais fab amplifier, ua tus choj rau cov teeb liab txuas.
Nta
- Txais yuav domestic ARM nti ua tus txheej txheem tseem ceeb rau kev tswj cov cuab yeej thiab kev xa suab
- 8 sib npaug microphone / kab inputs, txhawb 48V phantom zog, thiab siv 3.81 phoenix davhlau ya nyob twg thaiv
- 8 channel tso zis, siv 3.81 phoenix davhlau ya nyob twg thaiv
- 8 x 8 Vailink network audio transmission channels, realizing network audio transmission on standard Ethernet
- Ob lub 1000M Ethernet interfaces txhawb nqa tsis muaj kev cuam tshuam rov qab rov qab ntawm lub network suab xa mus
- Txhawb Web interface nkag mus rau kev teeb tsa yooj yim, kev saib xyuas thiab txhim kho kev ua haujlwm
- Txhawb PoE fais fab mov
- Fanless thiab ntsiag to tsim rau kho vajtse

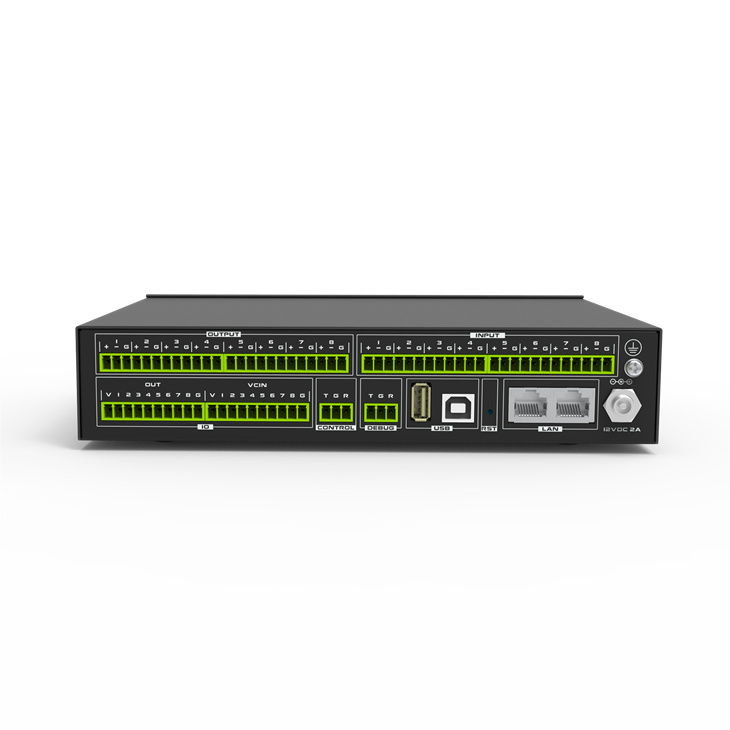

Lub Vaj Huam Sib Luag
Cim npe nrov: 8x8 vailink i/o interface, Tuam Tshoj 8x8 vailink i/o interface manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
|
|
Zaus teb |
20Hz-20kHz (± 0.5dB) |
|
Tus nqi piv txwv |
48kHz, 24 ntsis |
|
Dynamic Range |
>103dB ib |
|
THD |
Tsawg dua los yog sib npaug rau 0.006% |
|
Suab nrov pem teb |
<-90dBu@ 0dB Gain |
|
Kev cais tawm Channel |
>110 dB |
|
Suab Input/Output |
|
|
Txuas |
3.81 hli terminal blocks |
|
Number of Analog Channels |
8in8 ua |
|
Tus naj npawb ntawm Vailink Channels |
8in8 ua |
|
Phantom Hwj chim |
DC 48 |
|
Sensitivity Xaiv |
0dBu, -10dBu, -20dBu, -30dBu, -40dBu |
|
Input Impedance |
10KΩ sib npaug |
|
Cov zis impedance |
200Ω sib npaug |
|
Qib siab tshaj tawm |
{{0}} dBu @ 0dB nce |
|
Qib tso zis ntau tshaj |
+18 dBu |
|
Hluav taws xob thiab lub cev Parameters |
|
|
Fais fab mov |
DC 12V,<2A |
|
Kev siv fais fab |
10W |
|
Ua haujlwm kub |
0 degree -40 degree ua haujlwm |
|
txheeb ze humidity |
10% ~ 90% tsis muaj condensation |
|
Qhov ntev |
220mm * 191mm * 44.5mm |
|
Net nyhav |
0.46Kg |
