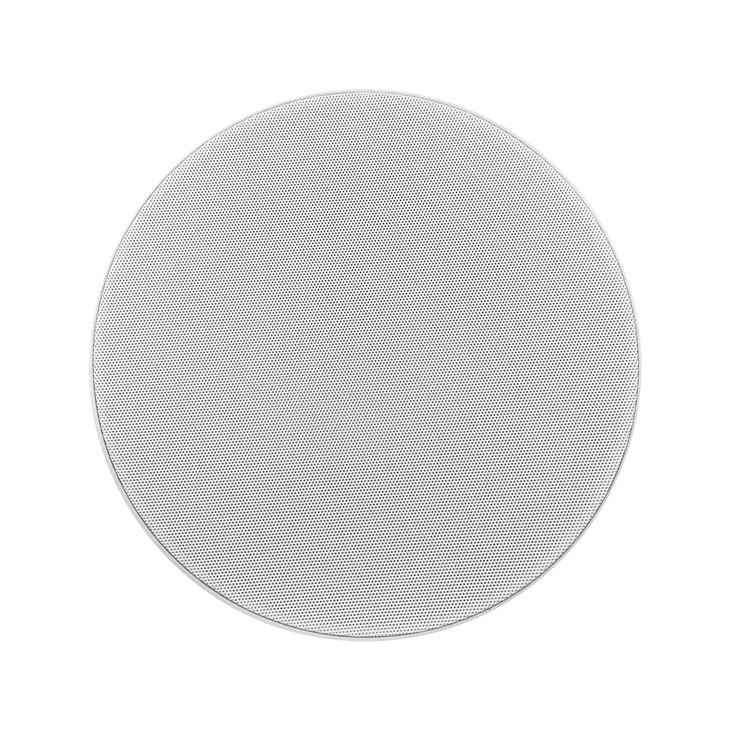

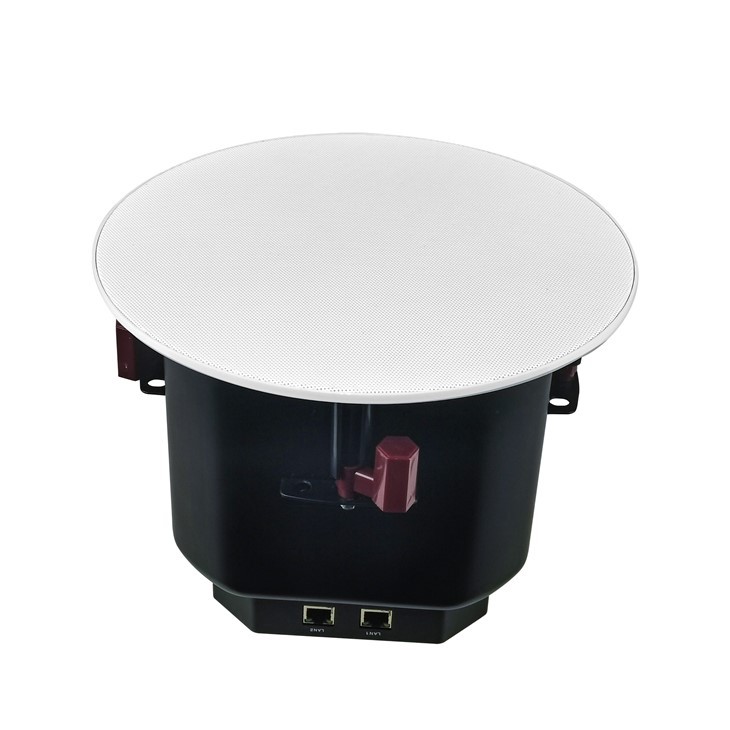

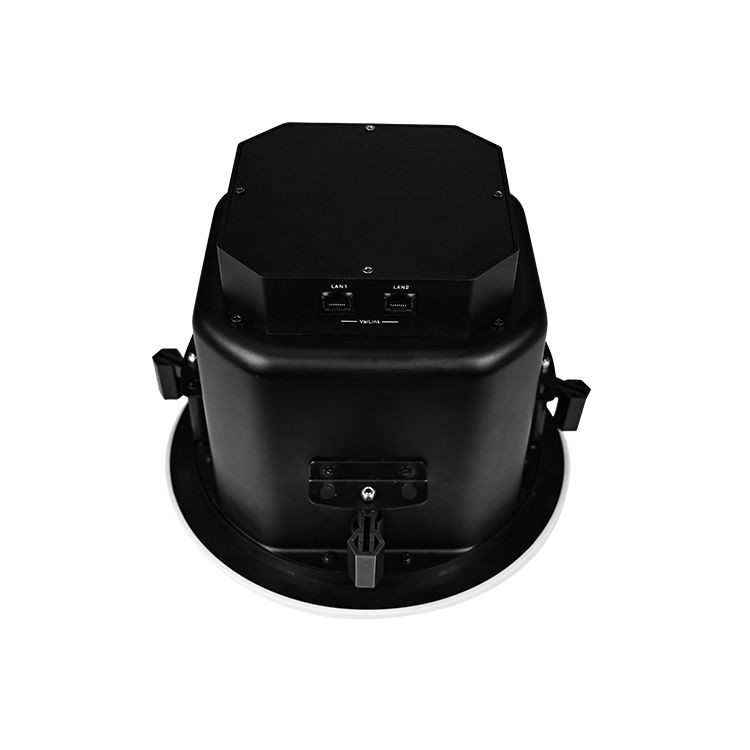

Txheej txheem cej luam ntawm Amber SC06P
Lub Amber series ntawm cov neeg hais lus siv tau tshwj xeeb yog tsim los rau kev txhim kho cov ntse network.
Cov neeg hais lus no muaj ob qho tib si digital thiab analog dual-link backup inputs. Siv TENDZONE cov cuab yeej ua suab tshwj xeeb, cov koob no muab cov suab paj nruag zoo nkauj thaum tswj TENDZONE lub suab zoo. Cov neeg hais lus Amber ntiav TENDZONE Vailink network kis raws tu qauv, ua kom lub suab hloov mus rau hauv lub network ntawm RJ45 interface nrog kev sib txuas ua ke. Qhov kev tsim no ua kom muaj kev tiv thaiv zoo thiab ruaj ntseg rau cov haujlwm tseem ceeb ntawm kev sib koom ua ke.
Nta
- Nruab nrog ib qho kev sib koom ua ke ntawm cov teeb liab ua haujlwm, siv Suav Rockchip ARM ua qhov tseem ceeb hauv kev ua haujlwm thiab kev tswj hwm.
- Txhawb PoE++/PoE+ kev xaiv fais fab mov.
- Ua raws li Vailink network audio transmission protocol, tso cai rau kev sib txuas tsis sib haum nrog AI audio algorithm ua kev pabcuam platform. Tus tsim software enables centralized teeb liab routing thiab kev tswj, pab txhawb kev sib koom ua ke ntawm ntau yam khoom siv thiab tso cai rau tej thaj chaw deb fais fab rau / tawm switching.
- suav nrog ob lub Vailink gigabit network interfaces uas muab kev sib txuas dual-txuas nrog rov qab tsis tau. Nyob rau hauv qhov kev tshwm sim ntawm qhov txuas tsis ua hauj lwm, lub kaw lus yuav txiav thiab seamlessly hloov mus rau lwm qhov txuas.
- Lub platform software tso cai rau cov chaw taws teeb saib xyuas ntawm tus neeg hais lus txoj haujlwm ua haujlwm, uas suav nrog: cov zis tam sim no, cov zis tawm hluav taws xob, ntsuas kub, lus ceeb toom rau kev tiv thaiv cov xwm txheej, tso saib ntawm amplifier module channel mute raws li txoj cai, thiab tso tawm cov lus ceeb toom txwv.
Cim npe nrov: 6' vailink network coaxial qab nthab hais lus, Tuam Tshoj 6' vailink network coaxial qab nthab hais lus manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
GeneralTsis muaj |
|
|
Qauv |
Lub Npe: Amber SC06P |
|
Tsawg zaus Unit |
6 ntiv |
|
Chav tsev siab |
1 nti coaxial horn tweeter |
|
Hais lus Rated Power |
60W (POE++) |
|
Maximum SPL |
103dB nruam, 107dB ncov |
|
Zaus teb (-10dB) |
80Hz-20kHz |
|
Lub kaum sab xis |
H100 degree × V100 degree |
|
Ua hauj lwm hom |
Txais ob lub zog amplifier tsav: tsawg zaus, siab zaus; teeb liab ua: domestic ARM |
|
Muaj nuj nqi |
|
|
Kev sib txuas |
Vailink raws tu qauv, 2 RJ45, 1000M / 100M adaptive, dual-link kis tau tus mob & tswj, tsis siv neeg hloov |
|
Kev tswj hwm |
Centrally tswj los ntawm lub suab algorithm ua kev pab cuam platform, seamless kev twb kev txuas |
|
Chaw taws teeb hloov |
Lub platform remotely tswj lub cuab yeej hloov |
|
Kev saib xyuas kev ua haujlwm |
Tso zis tam sim no, tso zis voltage, load, kub, tso zis tiv thaiv raws li txoj cai ceeb toom, mute raws li txoj cai zaub, tso zis txwv ceeb toom |
|
Tshawb nrhiav ntaus ntawv |
Nrhiav tej thaj chaw deb, hais lus hom backlight flashes |
|
Zaub Screen |
1. |
|
Tus neeg siv tswj |
Txhawb kho ntim, mute, thiab nplooj ntawv |
|
Hluav taws xob thiab lub cev Parameters |
|
|
Fais fab mov |
PoE++/PoE+, 802.3bt, tau tshaj 802.3at |
|
Ua haujlwm kub |
0 ~ 45 degree |
|
Qhov ntev |
Φ264 × 202 hli |
|
Installation Qhov Loj |
Φ240 hli |
|
Qhov hnyav |
3.7kg ib |
Daim ntawv thov
Cov tsev hais plaub
Cov chav kawm
Chav kawm
Cov Rooj Sib Tham
Conference Center
Tsev Teev Ntuj
Tsev so
Lecture Halls
Txhua Qhov Tes Tes
