Txheej txheem cej luam
MCU-1090 yog streaming media processing Cheebtsam ntawm lub platform faib, siv rau streaming media forwarding thiab transcoding, txhawb peb-tog mainstream brand standard saib xyuas platforms thiab lub teb chaws tus qauv GB/T28181 xyuas platforms, los yog mainstream brand video conferencing platforms , txhawb IP C network lub koob yees duab streaming media forwarding, txhawb synchronization ntawm tus tswv nodes, thiab muab kev pab cuam rau LED synchronization ntawm lub vijtsam.
Nta
Kev ua haujlwm siab, ntau channel
- Txhawb 4K@60 H.265 video decoding, 1080P@60 video encoding, thiab 16-channel 1080P@30 video transcoding;
- Txhawb nqa video kwj xa mus thiab on-screen zaub;
- Txhawb nqa 48-channel IPC network koob yees duab video xa mus.
Kev txawj ntse compatibility
- Txhawb nqa docking nrog cov khoom lag luam tseem ceeb saib xyuas lub platform xws li Hikvision, Dahua, Uniview, thiab Keda;
- Txhawb docking nrog video platforms xws li Huawei thiab Polycom;
- Txhawb kev ua tus tswv ntawm synchronization hauv ib cheeb tsam hauv zos kom ua tiav LED synchronization splicing;
- Txhawb kev tswj lub davhlau ya nyob twg UI interface tswj thiab lub sijhawm tiag tiag video ncha.
ruaj khovthiab ntseeg tau
- Txais kev kos Linux system, tsis muaj kab mob;
- Txhawb nqa adapter fais fab mov thiab PoE fais fab mov thaub qab;
- Kev txhim kho kev nyab xeeb tau ua tiav ntawm lub Hoobkas kom ua tau raws li qhov yuav tsum tau ua ntawm kev ntsuas kev nyab xeeb.
Cov khoom siv daim ntawv
- Fanless thiab ntsiag to tsim, txhawb 1U ywj siab txee installation;
- 3 Gigabit network ports, txhawb PoE fais fab mov.

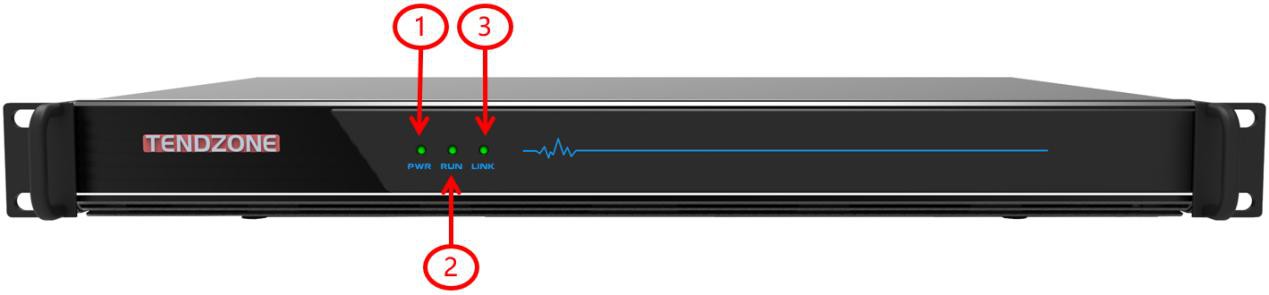

Pem hauv ntejVaj huam sib luag
(1) Lub hwj chim taw qhia (2) lub teeb qhia kev ua haujlwm (3) Qhov taw qhia kev sib txuas

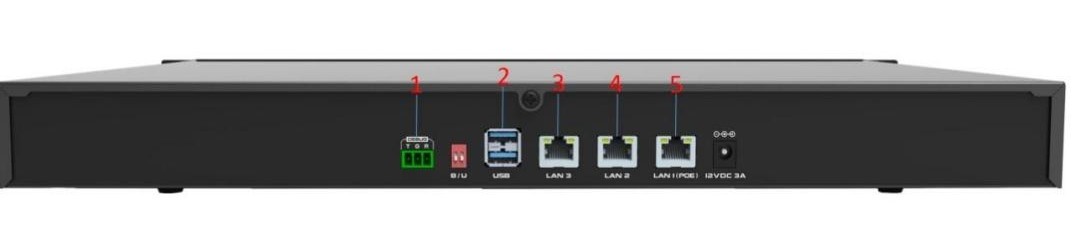

Lub Vaj Huam Sib Luag
(1) Debug chaw nres nkoj * 1;
(2) USB2.
(3) RJ45 Gigabit Ethernet chaw nres nkoj 3 (txhawb LED splicing synchronization)
(4) RJ45 Gigabit Ethernet chaw nres nkoj 2 (phab ntsa mount);
(5) RJ45 Gigabit Ethernet chaw nres nkoj 1 (txhawb PoE fais fab mov).
Cim npe nrov: Tuam Tshoj transcoding media service platform manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
|
|
Muaj kev nyab xeeb thiab ruaj khov |
Txais siv cov chips tsim hauv tsev, tsim raws li cov kab ke hauv Linux, tsis muaj kab mob nkag mus; |
|
Kho vajtse Configuration |
CPU core: HiSilicon Hi 3536, quad-core A17 processor, lub ntsiab zaus 1.4 GHz; RAM: 2 GB Internal cia: 1 GB; |
|
Cov ntaub ntawv interface |
USB2.0 Hom- A Ntaus Chaw nres nkoj *1; USB3.0 Hom- A Ntaus Chaw nres nkoj *1; |
|
Network Interface |
3 RJ45 Gigabit Ethernet chaw nres nkoj, txhawb PoE fais fab mov; |
|
Tus ntaus ntawv loj |
Chassis loj: 436.8 * 280 * 46.5mm; Dimensions nrog dai pob ntseg: 482 * 300 * 46.5; |
|
Input voltage |
DC12V, Tsawg dua lossis sib npaug rau 1A; |
|
Kev tiv thaiv tam sim no |
3.5mA ua |
|
Cov cuab yeej siv hluav taws xob |
Tsawg dua lossis sib npaug li 7 W; |
|
Khoom siv suab nrov |
Fanless thiab ntsiag to tsim; |
|
Ua haujlwm kub |
- 10 degree ~ 45 degree ua haujlwm kub; |
|
Qhov hnyav |
Net nyhav 3.16 Kg, tag nrho hnyav 4.60 Kg; |
|
Qhov taw qhia Teeb |
Lub hwj chim qhia lub teeb: Lub teeb yuav nyob rau thaum lub server yog powered ib txwm; Khiav lub teeb qhia: Lub teeb yuav flash thaum lub server pib thiab khiav ib txwm; Kev sib txuas qhov taw qhia: tshwj tseg, flashes randomly thaum ua haujlwm; |
|
Kev teeb tsa |
Kev them nyiaj yug 1U ywj siab txee installation; |
|
Saib xyuas Fusion |
Txhawb docking nrog Hikvision, Dahua, Uniview, Keda, Jinzhi, Infinova, Axis, Tiandiweiye thiab lub teb chaws tus qauv GB /T- 28181 raws tu qauv, thiab kuj txhawb SDK docking nrog Hikvision soj ntsuam platform; |
|
Video Conferencing Convergence |
Txhawb nqa kev sib tham video hauv xov tooj cua tus neeg muag khoom raws tu qauv SIP / H.323, xws li pob ntawv ntes kwj nkag ntawm Huawei/Polycom/Dongwei video conferencing systems; |
|
Transcoding kev ua tau zoo |
Ib chav tsev tuaj yeem txiav txim siab txog 1 channel ntawm 8K60@H.265 lossis 1 channel ntawm 8K30@H.264, thiab encode mus txog 1 channel ntawm 8K30 thiab 4 channels ntawm 4K30. Ib chav tsev ib leeg tuaj yeem txhawb kev saib ua ntej, ncha thiab pom kev teem sijhawm txog li 16 raws ntawm HD 1080P30 transcoded signals tib lub sijhawm; thiab tuaj yeem txhawb nqa kev nthuav dav. |
|
IPC Fusion Kev Ua Haujlwm |
Txhawb H.264 lossis H.265 ntshiab IPC kev twb kev txuas rau SD kwj saib ua ntej thiab HD kwj zaub; |
|
Flow kev ua tau zoo |
Txhawb 48-channel concurrent streaming media proxy forwarding, nrog rau tag nrho cov tsheb khiav ceev tshaj plaws ntawm 256 Mbps |
|
Lub koob yees duab tswj |
Txhawb nqa IPC kev sib hloov los yog lub koob yees duab kev sib hloov ntawm kev saib xyuas platform PTZ |
|
Kev sib txuas lus muaj nuj nqi |
Txhawb multicast, multicast chaw nyob thiab chaw nres nkoj tuaj yeem teeb tsa; Txhawb kev sib koom ua ke ntawm UDP cov ntaub ntawv tau txais thiab xa cov chaw nres nkoj rau static NAT daim ntawv qhia; |
|
Kev tu vaj tse |
Txhawb Web interface nkag mus rau kev teeb tsa yooj yim, txij nkawm thiab txhim kho kev ua haujlwm; Txhawb nqa yam tsawg kawg nkaus thiab yuam kev hloov kho, thiab txhawb USB hloov kho; |
