Txheej txheem cej luam
Cov khoom no yog tsim tshwj xeeb rau cov txheej txheem kaw thiab tshaj tawm ib puag ncig hauv kev kawm. Nws nta cov thev naus laus zis thev naus laus zis thev naus laus zis, lub koob yees duab panoramic ze-up, lub microphone dual-function, muaj peev xwm taug qab kev txawj ntse, thiab kev daws teeb meem ultra-siab, tag nrho cov uas tso cai rau kev piav qhia meej ntawm txhua yam. Lub teeb yuag thiab nqa tau yooj yim, nws yog tsim los hloov kho kom haum rau ntau qhov chaw kaw lus thiab ua tiav cov kev xav tau ntawm ntau yam kev siv, suav nrog cov ntaub ntawv kaw hauv chav kawm.
Nta

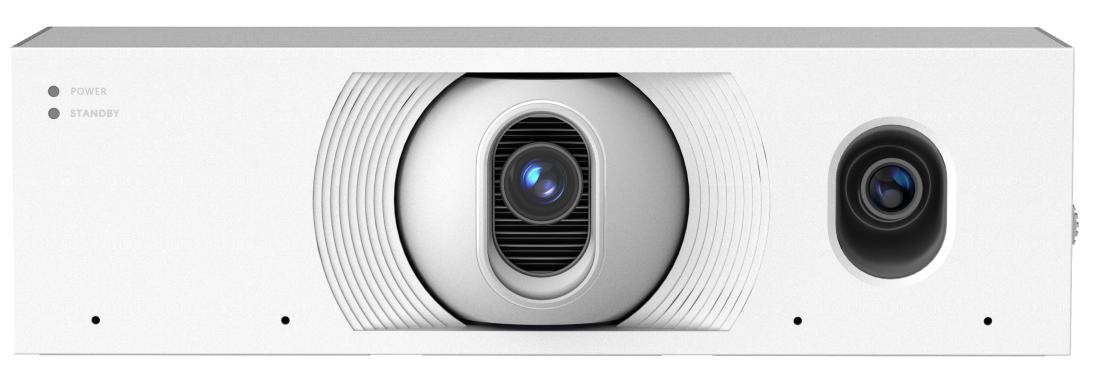

- Cov cuab yeej no muaj cov qauv tsim dual-lens uas sib txuas lub lens panoramic nrog lub lens ze, suav nrog 8-megapixel lens ze-up thiab 5-megapixel wide-angle panoramic lens. Qhov kev teeb tsa no tso cai rau kev qhia dav dav ntawm tag nrho cov chav kawm thaum muab cov duab kaw lus siab.
- Kaw-up txhaj koob tshuaj tivthaiv nrog ib tug nqaim teb ntawm saib ho txhim khu cov duab clarity. Kev txhaj tshuaj 21 degree ze-up rau cov kws qhia ntawv thiab 43 degree ze-up txhaj rau cov tub ntxhais kawm, ob qho tib si ntawm 8-megapixel daws teeb meem, xa qhov pom tseeb piv rau lub lens 95 degree.
- Nruab nrog cov duab paub txog qib siab thiab kev taug qab algorithms, lub cuab yeej ua rau kev taug qab du thiab ntuj yam tsis tas yuav tsum muaj lub koob yees duab ntxiv los yog nrhiav tus tswv. Cov koob yees duab sib txawv tuaj yeem sib sau ua ke thaum lub sijhawm tsim khoom los pab txhawb cov kws qhia lossis cov tub ntxhais kawm taug qab. Tsis tas li ntawd, nws tuaj yeem ua ib txhij tso tawm ntau txoj hauv kev txog li 5M panoramic thiab 4K cov duab ze-up.
- Tus tsim tshiab micro-mechanical lauj kaub / qaij system muaj kab rov tav kev sib hloov ntawm ± 40 degree. Nrog rau qhov pib-focus ze-up lens (tsim rau cov kws qhia), kev pom tau zoo dua. Lub kaw lus tseem txhawb nqa hluav taws xob yias / qaij ua haujlwm kom yooj yim zoom thiab pom tseeb. Kev sib koom ua ke ntawm cov tshuab hluav taws xob thiab hluav taws xob yias / qaij tshuab txo qis me me kev hloov pauv ntawm cov khoom siv tshuab.
- Cov cuab yeej txhawb nqa ntau qhov kev sib txuas video tso tawm, suav nrog PoE thiab USB 3.0.
- Cov cuab yeej txhawb nqa ob qho tib si sab nraud thiab built-in tus thawj coj ua haujlwm. Cov kws qhia ntawv thiab cov tub ntxhais kawm lub khoos phis tawj tuaj yeem ua khub los tso tawm ntau lub koob yees duab qhia cov kwj ntawm lub network lossis USB interfaces.
Lub Vaj Huam Sib Luag
Cim npe nrov: Tuam Tshoj 4k binocular ntse qhia tub kawm lub koob yees duab, Tuam Tshoj 4k binocular ntse qhia tub kawm lub koob yees duab manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kaw-upCamera |
|
|
sensor |
1/2.7 nti, CMOS, zoo pixels: 8.29 lab vam meej |
|
Txoj kev luam theej duab |
Kab ntawm Kab |
|
Lens Mount hom |
M12 |
|
Xib fwb zeej |
Focal ntev: f=12.49mm, kab rov tav pom: 26 degree |
|
Digital zoom |
2x |
|
Yam tsawg kawg illumination |
0.5 Lux @ (F2.4, AGC ON) |
|
Electronic shutter |
1/30s-1/10000s |
|
White Balance |
Pib, Sab Hauv Tsev, Sab Nraud, Ib qho kov, Phau Ntawv Qhia, Cov xim kub tshwj xeeb |
|
Digital suab nrov txo |
2D & 3D cov suab nrov txo |
|
Backlight them nyiaj |
kev txhawb nqa |
|
Kab rov tav rotation ntau |
± 40 degree |
|
Vertical rotation ntau |
+5 degree --30 degree |
|
Kev sib hloov ceev tshaj plaws |
Kab rov tav: 30 degree / s, ntsug 30 degree / s (xib fwb) |
|
Kab rov tav thiab ntsug tig |
kev txhawb nqa |
|
Duab khov |
kev txhawb nqa |
|
Tus naj npawb ntawm preset txoj haujlwm |
255 |
|
Preset txoj hauj lwm raug |
0.5 degree |
|
PanoramicCamera |
|
|
sensor |
1/2.7 nti, CMOS, zoo pixels: 4.93 lab vam meej |
|
Txoj kev luam theej duab |
Kab ntawm Kab |
|
Lens Mount hom |
M12 |
|
Xib fwb panoramic lens |
Focal ntev: f=7.37mm, kab rov tav pom: 43 degree |
|
Yam tsawg kawg illumination |
0.5 Lux @ (F2.4, AGC ON)) (Xib fwb Panorama) |
|
Electronic shutter |
1/30s ~ 1/10000s |
|
White Balance |
Pib, Sab Hauv Tsev, Sab Nraud, Ib qho kov, Phau Ntawv Qhia, Cov xim kub tshwj xeeb |
|
Digital suab nrov txo |
2D & 3D cov suab nrov txo |
|
Backlight them nyiaj |
kev txhawb nqa |
|
Vertical rotation ntau |
+0 degree --24 degree |
|
Duab khov |
kev txhawb nqa |
|
Kab rov tav thiab ntsug tig |
kev txhawb nqa |
|
Suab |
|
|
Analog Audio Input |
Txhawb nqa 1- txoj kev tawm tswv yim |
|
Analog audio tso zis |
Txhawb nqa 1- txoj kev tawm tawm |
|
Digital Audio Interface |
Txhawb 1 channel USB audio input thiab tso zis |
|
Txhawb 1 channel network audio input thiab output, txhawb 1588-raws li lub moos synchronization |
|
|
USB nta |
|
|
Txhawb kev khiav hauj lwm systems |
Windows ® 7 (txhawb 1080p thiab hauv qab nkaus xwb), Windows 8.1, Windows 10, Windows 11 lossis siab dua |
|
macOS™ 10.10 lossis siab dua |
|
|
Google™ Chromebook™ Version 29.0.1547.70 lossis siab dua |
|
|
Linux (yuav tsum tau txhawb nqa UVC) |
|
|
Hardware xav tau |
2.4 GHz Intel ® Core 2 Duo processor lossis siab dua |
|
2 GB RAM lossis siab dua |
|
|
USB 3.0 lossis USB 2.0 interface |
|
|
Xim chaw / compression |
YUY2/MJPEG/H.264 |
|
Video hom ntawv |
Mus txog 4K thiab lwm yam video tawm tswv yim nrog cov nqi sib txawv thiab kev daws teeb meem |
|
USB Video Communication Protocol |
UVC 1.1 |
|
USB Audio |
Qhov siab tshaj plaws 48K sampling tus nqi, txhawb UAC1.0 |
|
UVC PTZ tswj |
kev txhawb nqa |
|
Network yam ntxwv |
|
|
Video Coding Standards |
H.265 / H.264 / MJPEG |
|
Video kwj |
Thawj tus lej kwj dej, tus lej thib ob, tus lej thib peb, tus lej thib plaub |
|
Close-up main stream daws teeb meem |
3840x2160, 1920x1080,1280x720, 1024x576, 960x540, 640x480,640x360,320x240,320x180 |
|
Panorama lub ntsiab kwj daws teeb meem |
2880x1620,1920x1080,1920x1080,1280x720,1024x576,720x576(50Hz), 720x480(60Hz), 720x408,640x360,480x270 |
|
Close-up theem nrab kwj daws teeb meem |
1920x1080,1280x720,1024x576,960x540,720x576(50Hz), 720x480(60Hz), 720x408,640x360,480x270,320x240,320x |
|
Panoramic auxiliary stream daws teeb meem |
1920x1080,1280x720,1024x576,960x540,720x576(50Hz), 720x480(60Hz), 720x408,640x360,480x270,320x240,320x |
|
Video bitrate |
32Kbps ~ 16384Kbps |
|
Kev tswj tus nqi me ntsis |
Hloov pauv bitrate, Tsau bitrate |
|
Ncej tus nqi |
25/30fps Default 25fps |
|
Suab compression qauv |
AAC/G.711A |
|
Audio bitrate |
96Kbps, 128Kbps, 256Kbps |
|
Kev Txhawb Nqa Daim Ntawv Pom Zoo |
TCP/IP, HTTP, HTTPS, NDI, SRT, RTSP, RTMP, Onvif, DHCP, GB28181, multicast, thiab lwm yam. |
|
Input thiab output interface |
|
|
USB interface |
1 channel, USB 3.0: TYPE-C |
|
Network Interface |
Txhawb 10M / 100M hloov kho, txhawb POE fais fab mov (802.3af), xaiv kev txhawb nqa NDI raws tu qauv |
|
Kab input interface |
1 channel, Kab Hauv, 3.5mm audio input interface |
|
Kab tso zis interface |
1 channel, Kab tawm, 3.5mm audio output interface |
|
Lub zog interface |
DC005 hom (DC 12V) |
|
Pib dua khawm |
RESET |
|
Qhov taw qhia Teeb |
POWER xiav, STANDBY ntsuab |
|
General Specifications |
|
|
Input voltage |
DC 12V / PoE (802.3af) |
|
Input Tam sim no |
Max 1A |
|
Ua haujlwm kub |
0 degree ~ 40 degree |
|
Cia kub |
-40 degree ~ 60 degree |
|
Kev siv fais fab |
Max 12 W |
|
qhov loj |
242.05 * 86.03 * 70.55 hli |
|
net luj |
0.62 kg |
|
Lub sijhawm nruab nrab ntawm kev ua tsis tiav |
30000h |
