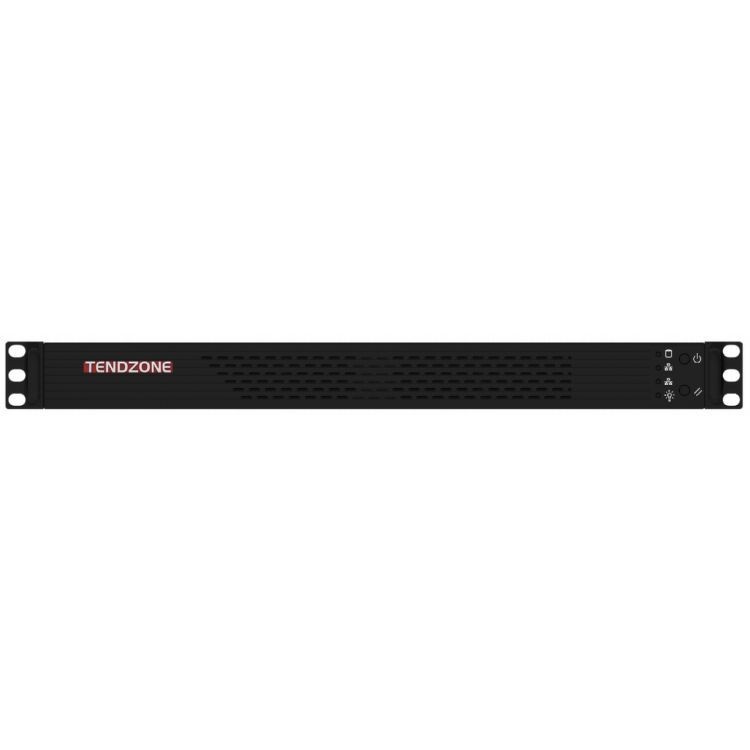

Kev nthuav dav Midis System Server

Kev Ua Haujlwm General

Muaj kev nyab xeeb thiab ruaj khov

Caws kev lag luam Industrial-qib architecture, tsim raws li Linux system, tus kab mob-pub dawb

Cov Khoom Kho Vajtse

CPU: Intel Xeon Bronze 3204 Processor / 1.90 GHEz, 6 CORES;

RAM: 8GB

Sab hauv: 2 TB;

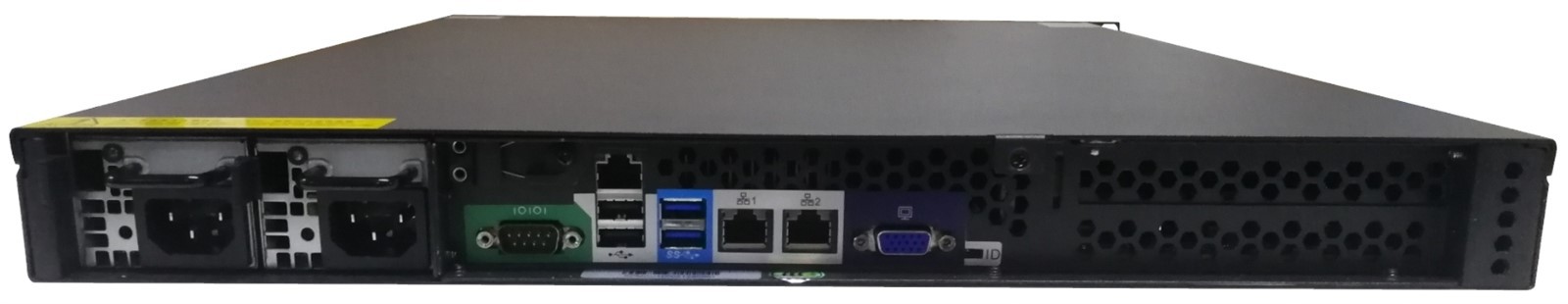

Cov ntaub ntawv interface

USB2. {0 yam chaw nres nkoj * 2;

Network interface

RJ45 Kev tswj hwm network chaw nres nkoj * 1; RJ45 Gigamp Chaw nres nkoj * 2;

Lwm yam kev cuam tshuam

VGA interface * 1;

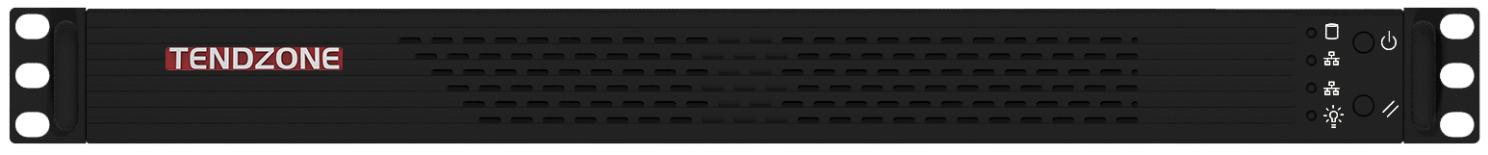

Qhov taw qhia teeb

Hard disk qhia lub teeb: Lub teeb yuav nyem thaum lub hard disk ua haujlwm;

Qhov taw tes teeb tsa Network 1: Thaum lub network txuas rau chaw nres nkoj 1, qhov kev coj ua chaw nres nkoj teeb yuav nyem;

Qhov taw qhia lub teeb 2: Thaum lub network txuas rau chaw nres nkoj 2, qhov kev coj ua chaw nres nkoj teeb yuav nyem;

Lub zog hluav taws xob taw qhia lub teeb: luv xovxwm kom tig lub zog, lub teeb yuav nyob rau thaum lub server pib thiab khiav ib txwm;

Cov hauj lwm tseem ceeb

Lub Hwj Chim Hloov: MATEX hloov, xovxwm luv los qhib lub zog; ntev xovxwm rau 10 vib nas this los yuam kev kaw;

Restart khawm: Luv Nias lub khawm Restart thiab lub server yuav cia li pib dua;

Kev muab cia

Txhawb nqa 1 u ywj pheej txee installation;

Ntaus Cov Ntaus Loj

Chassis loj: 430 * 543.8 * 4 (dav * ntev * qhov siab) hli;

Ntim loj: 680 * 910 * 220 (dav * ntev * qhov siab) hli;

Cov Khoom Siv Hluav Taws Xob

{{0 {0}} kub-swappable redundant hwj chim; 220V ac tswv yim;

Ntaus Khoom Siv Hluav Taws Xob

kev noj

Tsawg dua los yog sib npaug rau 300 w;

Kev tiv thaiv xau

niaj hnub

5ma

Thaj kub cua sov

Lub sijhawm ua haujlwm: 10 degree ~ 35 degree;

- Kev khiav hauj lwm: {{{1} degree ~ 55 degree;

Tus txheeb ze cov av noo

95% Thaum tsis ua haujlwm, tsis muaj hws ntawm 25 degree ~ 30 degree;

Cov Khoom Siv Hluav Taws Xob

Net Nyhav 10.94 kg, tag nrho qhov hnyav 16.52 kg;

Cov Nta

Cov cuab yeej txhawb nqa kev tswj, kev tswj hwm Codecs, cov tswv yim tswj hwm, xov xwm network, saib xyuas IPcs thiab cov khoom siv thib peb tog;

Txhawb tswj hwm kev tswj hwm cov cim media media thiab cov ntsiab lus ultra daws;

Txhawb cov neeg siv ntau yam kev tswj hwm thiab cov neeg siv kev cai kev teeb tsa;

Txhawb tau ntau-System cascading muaj nuj nqi kom paub qhov sib cuam tshuam ntawm audio thiab video xov xwm ntawm cov tshuab;

Txhawb nqa ntau qhov screen kev tswj hwm, pom tseeb lcd / LED screen Splicing, thiab tswj lub cim taw teeb;

Txhawb kev tshuaj ntsuam tus chij teeb tsa;

Txhawb streaming Media xa mus rau tom qab muaj nuj nqi, RTSP streaming media xa tawm yog tso tawm ntawm lub vijtsam;

Txhawb cov neeg rau zaub mov kub kub rov qab ua kom muaj kev kub ntxhov ntxiv;

Kev txhawb nqa Central tswj lub luag haujlwm, paub cov khoom siv tswj ib puag ncig, thiab txhawb nqa ob txoj kev tswj ntawm cov khoom siv ib puag ncig (xws li taug qab cov koob yees duab ib puag ncig (xws li taug kev lub koob yees duab ib puag ncig (xws li taug kev lub koob yees duab ib puag ncig (xws li taug kev lub koob yees duab ib puag ncig (xws li kev taug qab ib puag ncig (xws li taug kev lub koob yees duab ib puag ncig (xws li kev taug qab ib puag ncig (xws li taug kev lub koob yees duab ib puag ncig (xws li kev taug qab ib puag ncig (xws li taug kev lub koob yees duab ib puag ncig (xws li kev taug qab ib puag ncig (xws li taug kev lub koob yees duab);

Txhawb nqa thib peb tog platform platform, xws li saib xyuas platforming (GB / T28181 raws sijhawm McU, thiab Customized docking ntawm lwm tus thib peb cov qauv nyiaj API thiab SDK protocol khoom;

Txhawb nqa qhib neeg rau zaub mov platform API API interface raws tu qauv rau thib peb docking;

Codec Node Kev Tswj thiab Kev Tswj

Txhawb ntaus ntawv online li kev tswj hwm;

Txhawb nqa online batch txhim kho ntawm ntaus ntawv software;

Txhawb nqa kev kho lub vijtsam thiab encoding daim video qhia cov duab tom qab;

Txhawb cov cim txiav txim siab, teeb liab zaub, thiab tshuaj ntsuam kev hloov chaw;

Txhawb Codec ntawm ntim tswj thiab Central tswj CALL INTERFINE Kev tswj;

Audio Processor Tswj

Txhawb cov antio processor scene hu, tab sis tsis txhawb nqa scene txuag;

Txhawb nqa lub tswv yim tswj thiab ntim tswj ntawm cov audio processor tawm thiab cov zis raws cov lus tawm tswv yim ntawm lub suab tawm suab, thiab txhawb kev sib xyaw ua ke;

Hyper-converged ntawm

Kev Tswj thiab Kev Tswj Xyuas

Txhawb kev hyper-converved node ntaus ntawv tswj; Txhawb kev tswj hwm hyper-convervation ntawm cov ntaubntawv thiab tshaj tawm cov chaw hloov, RTSP ACCESS hloov, RTS-Revos Audio channel tswj, built-in central tswj (serial Chaw nres nkoj, infrared transmitter chaw nres nkoj, sijhawm sij hawm fais fab tuag), thiab ib-tseem ceeb pab tau kev ua haujlwm;

Mos Ntsuam Xyuas Projection

Txhawb cov qhov rais lossis Mac Computers muab wireless / wired network screen cov kev pab, thiab txhawb synchronous audio thiab video kis;

Saib xyuas IPc tswj

Txhawb IPC Network CamCetwork Ntaus Cov Duab Ua Haujlwm Tswj, Rub Cov Cai Saib Xyuas Dej los tso rau ntawm qhov screen, txhawb nqa IPC PTZ tswj hwm;

Saib Xyuas Platform

kev tswj hwm

Pab Txhawb Lub Tebchaws GB / T28181 raws qauv los txuas rau kev saib xyuas cov cim ntawm kev soj ntsuam cov tshuab xov xwm kev soj ntsuam, thiab txhawb PTZ tswj PT kev saib xyuas platform;

Kev sib tham video McU tswj

Txhawb Huawei, Polycom, thiab Dongwei sib tham McU kev sib tham ntawm kev sib tham ntawm video sib tham, thiab tswj cov zaub ntawm cov cim qhia tawm ntawm lub vijtsam;

Kev sib txuas ceeb toom

Kev nkag mus ntawm lub tswb ntsuas kev lag luam los ntawm dav dawb hau, Metlife, Hikvision, thiab Putek, thiab kev sib txuas los mus hloov cov kev pab cuam thaum tau txais lub tswb;

UI Cov Neeg Siv Khoom

Txhawb nqa kev khiav ntawm Kylin, Windows 7/10/11, Android, thiab iOS system system;

Txhawb cov neeg siv los tsim tus kheej tswj tus kheej interface; txhawb tus qauv ntawm ntau cov txheej txheem ntawm cov kev tswj hwm;

Txhawb kev ua yeeb yam hauv kev sib txuas lus rau kev koom ua ke rau kev koom ua ke audio thiab video teeb liab teem caij, tswj cov suab, tswj ib puag ncig;

Txhawb cov zaub ntawm ntau hom hom xws li cov nyees khawm, cov npe, cov duab ntoo, kho cov thawv, duab, thiab lwm yam.

Tswj raws tu qauv

Txhawb UDP, TCP, http network raws cov txheej txheem tswj hwm;

Cov ntawv txhawb nqa, Hexadecimal, thiab kev tswj hwm hom kev cai tswj hwm;

Txhawb kev txhawb nqa onvif thiab GB t - 28181 Txoj Kev Cai PTZ tswj;

Cov Log Phaj

Txhawb kev tswj kev ua ke daim ntawv thov, txhawb cov npe teev ua ntu zus tiav, thiab kev txiav txim siab thiab xaiv cov xwm txheej tiav;

Txhawb kev pab cuam Bidirectional ua tiav kev thaum kho kev kub ntxhov;

Txhawb lub sijhawm ua tiav cov xwm txheej tiav, cov xwm txheej ua tiav, thiab ua tiav cov xwm txheej ua tiav;

Media raws tu qauv

Pab Txhawb Nqa Tshuab, Tshaj nrog cov kev cai hauv qab no:

Txhawb AAC, G.711, G.722 audio hom encoding thiab seev cev;

Txhawb tswj kev tswj hwm ntawm Dante, Cobranet, thiab TAC Audio raws kev cai;

Txhawb H.264 thiab H.265 Video Formor Formor thiab kev txiav txim siab, txhawb RTP thiab RTSP Media cov txheej txheem;

Muaj nuj nqi txij nkawm

Txhawb System Placuration ntshuam / export ua haujlwm;

Txhawb nqa phau ntawv backup, teem sijhawm thaub qab, thiab ib-nias kev teeb tsa;

Txhawb kev cia thiab export ntawm cov cav hauv lub cav, suav nrog cov cav cav, cov cav nkag, cov cav ua haujlwm, thiab cov cav ceeb toom;

Txhawb cov tshuaj xyuas thiab tshuaj xyuas ntawm cov cuab yeej online li cas;

Txhawb nqa batch txhim kho ntawm codec ntawm software version version;
