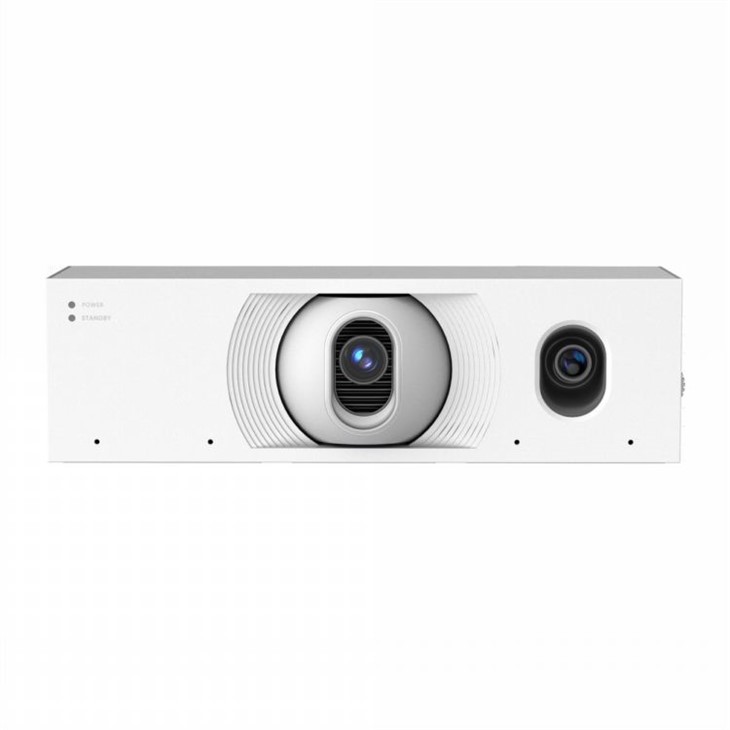

Tsim los rau cov xwm txheej zoo li qub thiab tshaj tawm hauv kev kawm, nws tau nruab nrog cov cuab yeej ntse binocular, lub koob yees duab panoramic ze-up, ob-hauv-ib lub microphone, ntse taug qab thiab kev daws teeb meem ultra-high-txhais, uas tuaj yeem rov qab txhua qhov kev nthuav dav. Nws yog lub teeb thiab nqa tau yooj yim, haum rau ntau qhov chaw kaw, thiab ua tau raws li qhov xav tau ntawm daim ntawv thov scenarios xws li kev qhia kaw.
Khoom nta
● Binocular kev koom ua ke
Nws txais yuav lub panoramic + ze-up dual-lens tsim, nrog rau 8-megapixel close-up lens thiab 5-megapixel wide-angle panoramic lens, uas tuaj yeem npog tag nrho cov chav kawm thiab muab cov ntsiab lus siab. cov duab nyob ze.
● Ultra-clear close-up
Kev txhaj tshuaj ze nrog qhov me me ntawm qhov pom zoo ua kom pom tseeb ntawm cov duab ze. Lub 8-megapixel daws teeb meem 21 degree ze-up txhaj rau cov kws qhia ntawv thiab 43 degree ze-up txhaj rau cov tub ntxhais kawm yog sib npaug rau qhov pom tseeb ntawm 95 degree lens.
● Kev qhia txawj ntse taug qab
Built-in ua cov duab pom thiab taug qab algorithms, nws tuaj yeem ua tiav cov txiaj ntsig zoo thiab kev taug qab ntuj yam tsis muaj lub koob yees duab tso rau lub koob yees duab lossis tus tswv tsev. Cov koob yees duab sib txawv tuaj yeem sib sau ua ntej tsim khoom kom ua tiav cov kws qhia ntawv lossis cov tub ntxhais kawm taug qab. Nws tuaj yeem ua ib txhij tso tawm ntau txoj kev mus txog 5M panoramic thiab 4K cov duab kaw.
● Micro PTZ
Tus tsim tshiab micro-mechanical lauj kaub / qaij muaj kab rov tav kev sib hloov ntawm ± 40 degree. Nrog rau qhov pib-focus ze-up lens (tus kws qhia tshuab), cov kws qhia ntawv tuaj yeem pom meej dua. Nws kuj txhawb nqa hluav taws xob lauj kaub / qaij, uas ua rau nws yooj yim rau kev nthuav dav thiab pom kom meej meej. Lub tshuab hluav taws xob yias / qaij thiab hluav taws xob yias / qaij yog seamlessly ua ke, txo cov kev sib hloov me me ntawm cov tshuab tshuab / qaij.
● Ntau interface tso zis
Txhawb ntau qhov video tso zis interfaces xws li PoE thiab USB 3.0 interface.
● Built-in tus thawj coj
Nws txhawb cov thawj coj sab nraud thiab tsim-hauv. Tus kws qhia ntawv lub khoos phis tawj thiab cov tub ntxhais kawm lub khoos phis tawj tuaj yeem ua khub kom tso tawm ntau lub koob yees duab tus thawj coj ntws los ntawm lub network lossis USB interface.
Cim npe nrov: Tuam Tshoj 4k binocular ntse qhia tus kws qhia lub koob yees duab, Tuam Tshoj 4k binocular ntse qhia xib fwb lub koob yees duab manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kaw-upCamera |
|
|
sensor |
1/2.7 nti, CMOS, zoo pixels: 8.29 lab vam meej |
|
Txoj kev luam theej duab |
Kab ntawm Kab |
|
Lens Mount hom |
M12 |
|
Xib fwb zeej |
Focal ntev: f=12.49mm, kab rov tav pom: 26 degree |
|
Digital zoom |
2x |
|
Yam tsawg kawg illumination |
0.5 Lux @ (F2.4, AGC ON) |
|
Electronic shutter |
1/30s-1/10000s |
|
White Balance |
Pib, Sab Hauv Tsev, Sab Nraud, Ib qho kov, Phau Ntawv Qhia, Cov xim kub tshwj xeeb |
|
Digital suab nrov txo |
2D & 3D cov suab nrov txo |
|
Backlight them nyiaj |
kev txhawb nqa |
|
Kab rov tav rotation ntau |
± 40 degree |
|
Vertical rotation ntau |
+5 degree --30 degree |
|
Kev sib hloov ceev tshaj plaws |
Kab rov tav: 30 degree / s, ntsug 30 degree / s (xib fwb) |
|
Kab rov tav thiab ntsug tig |
kev txhawb nqa |
|
Duab khov |
kev txhawb nqa |
|
Tus naj npawb ntawm preset txoj haujlwm |
255 |
|
Preset txoj hauj lwm raug |
0.5 degree |
|
PanoramicCamera |
|
|
sensor |
1/2.7 nti, CMOS, zoo pixels: 4.93 lab vam meej |
|
Txoj kev luam theej duab |
Kab ntawm Kab |
|
Lens Mount hom |
M12 |
|
Xib fwb panoramic lens |
Focal ntev: f=7.37mm, kab rov tav pom: 43 degree |
|
Yam tsawg kawg illumination |
0.5 Lux @ (F2.4, AGC ON)) (Xib fwb Panorama) |
|
Electronic shutter |
1/30s ~ 1/10000s |
|
White Balance |
Pib, Sab Hauv Tsev, Sab Nraud, Ib qho kov, Phau Ntawv Qhia, Cov xim kub tshwj xeeb |
|
Digital suab nrov txo |
2D & 3D cov suab nrov txo |
|
Backlight them nyiaj |
kev txhawb nqa |
|
Vertical rotation ntau |
+0 degree --24 degree |
|
Duab khov |
kev txhawb nqa |
|
Kab rov tav thiab ntsug tig |
kev txhawb nqa |
|
Suab |
|
|
Analog Audio Input |
Txhawb nqa 1- txoj kev tawm tswv yim |
|
Analog audio tso zis |
Txhawb nqa 1- txoj kev tawm tawm |
|
Digital Audio Interface |
Txhawb 1 channel USB audio input thiab tso zis |
|
Txhawb 1 channel network audio input thiab output, txhawb 1588-raws li lub moos synchronization |
|
|
USB nta |
|
|
Txhawb kev khiav hauj lwm systems |
Windows ® 7 (txhawb 1080p thiab hauv qab nkaus xwb), Windows 8.1, Windows 10, Windows 11 lossis siab dua |
|
macOS™ 10.10 lossis siab dua |
|
|
Google™ Chromebook™ Version 29.0.1547.70 lossis siab dua |
|
|
Linux (yuav tsum tau txhawb nqa UVC) |
|
|
Hardware xav tau |
2.4 GHz Intel ® Core 2 Duo processor lossis siab dua |
|
2 GB RAM lossis siab dua |
|
|
USB 3.0 lossis USB 2.0 interface |
|
|
Xim chaw / compression |
YUY2/MJPEG/H.264 |
|
Video hom ntawv |
Mus txog 4K thiab lwm yam video tawm tswv yim nrog cov nqi sib txawv thiab kev daws teeb meem |
|
USB Video Communication Protocol |
UVC 1.1 |
|
USB Audio |
Qhov siab tshaj plaws 48K sampling tus nqi, txhawb UAC1.0 |
|
UVC PTZ tswj |
kev txhawb nqa |
|
Network yam ntxwv |
|
|
Video Coding Standards |
H.265 / H.264 / MJPEG |
|
Video kwj |
Thawj tus lej kwj dej, tus lej thib ob, tus lej thib peb, tus lej thib plaub |
|
Close-up main stream daws teeb meem |
3840x2160, 1920x1080,1280x720, 1024x576, 960x540, 640x480,640x360,320x240,320x180 |
|
Panorama lub ntsiab kwj daws teeb meem |
2880x1620,1920x1080,1920x1080,1280x720,1024x576,720x576(50Hz), 720x480(60Hz), 720x408,640x360,480x270 |
|
Close-up theem nrab kwj daws teeb meem |
1920x1080,1280x720,1024x576,960x540,720x576(50Hz), 720x480(60Hz), 720x408,640x360,480x270,320x240,320x |
|
Panoramic auxiliary stream daws teeb meem |
1920x1080,1280x720,1024x576,960x540,720x576(50Hz), 720x480(60Hz), 720x408,640x360,480x270,320x240,320x |
|
Video bitrate |
32Kbps ~ 16384Kbps |
|
Kev tswj tus nqi me ntsis |
Hloov pauv bitrate, Tsau bitrate |
|
Ncej tus nqi |
25/30fps Default 25fps |
|
Suab compression qauv |
AAC/G.711A |
|
Audio bitrate |
96Kbps, 128Kbps, 256Kbps |
|
Kev Txhawb Nqa Daim Ntawv Pom Zoo |
TCP/IP, HTTP, HTTPS, NDI, SRT, RTSP, RTMP, Onvif, DHCP, GB28181, multicast, thiab lwm yam. |
|

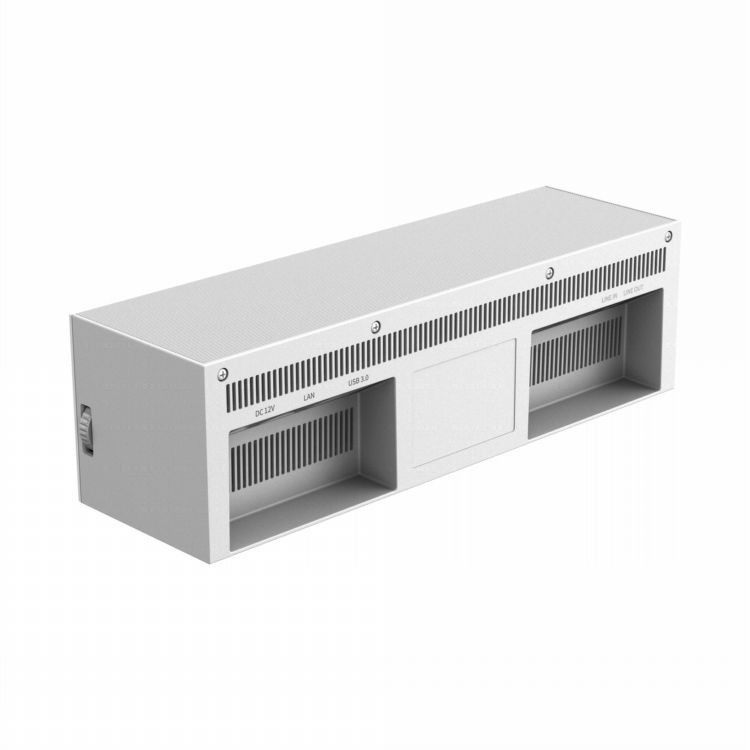

Input thiab output interface |
|
|
USB interface |
1 channel, USB 3.0: TYPE-C |
|
Network Interface |
Txhawb 10M / 100M hloov kho, txhawb POE fais fab mov (802.3af), xaiv kev txhawb nqa NDI raws tu qauv |
|
Kab input interface |
1 channel, Kab Hauv, 3.5mm audio input interface |
|
Kab tso zis interface |
1 channel, Kab tawm, 3.5mm audio output interface |
|
Lub zog interface |
DC005 hom (DC 12V) |
|
Pib dua khawm |
RESET |
|
Qhov taw qhia Teeb |
POWER xiav, STANDBY ntsuab |
|
General Specifications |
|
|
Input voltage |
DC 12V / PoE (802.3af) |
|
Input Tam sim no |
Max 1A |
|
Ua haujlwm kub |
0 degree ~ 40 degree |
|
Cia kub |
-40 degree ~ 60 degree |
|
Kev siv fais fab |
Max 12 W |
|
qhov loj |
242.05 * 86.03 * 70.55 hli |
|
net luj |
0.62 kg |
|
Lub sijhawm nruab nrab ntawm kev ua tsis tiav |
30000h |
