Txheej txheem cej luam
CC-9N yog qhov kev ua haujlwm ntse thiab kev saib xyuas lub zog tshiab tshaj tawm los ntawm Tendzone rau kev lag luam dav dav. Cov khoom no txhawb cov kev txheeb xyuas lub zog ntse, uas tuaj yeem suav tus neeg siv hluav taws xob ntawm txhua qhov khoom siv sab nraud, thiab tseem tuaj yeem suav tag nrho lub zog siv ntawm tag nrho cov khoom siv sab nraud. Lub vaj huam sib luag pem hauv ntej yog tsim los nrog ib qho tseem ceeb ntse tag nrho rau / tawm khawm thiab ib lub khawm qhib / tawm rau txhua qhov channel, uas tuaj yeem ua tau raws li qhov xav tau ntawm txhua qhov channel rau / tawm thiab ib qho channel rau / tawm tib lub sijhawm.
Cov cuab yeej muaj ib tug built-in overcurrent tiv thaiv kom muaj kev ruaj ntseg ntawm cov khoom siv fais fab. Nws yog tsim rau cov chaw hais kom ua thiab kev tswj hwm, cov rooj sib tham loj hauv multimedia, ntau chav ua haujlwm, kev tshaj tawm xov xwm, cov chaw cob qhia, chav kawm multimedia, high-end villas, tsev so, tsev ntse, thiab lwm yam. Nws tuaj yeem siv dav hauv tsoomfwv / kev lag luam, pej xeem kev ruaj ntseg, kev ncaj ncees, nyiaj txiag, kev thauj mus los, tub ceev xwm, kev kawm, kev kho mob thiab lwm yam lag luam.
Nta
Txhawb kev teeb tsa ntawm cov cuab yeej ua haujlwm, suav nrog hom sequencer thiab hom relay. Hauv hom sequencer, qhov kev txiav txim thiab ncua sij hawm ntawm txhua qhov hloov pauv tuaj yeem teeb tsa. Hauv hom relay, txhua qhov kev hloov pauv tsuas tuaj yeem tswj tau los ntawm phau ntawv khawm, lub vev xaib keeb kwm yav dhau, thiab kev tswj hwm cov lus txib.
Txhawb nqa tus kheej rau / tawm tswj ntawm 8 lub zog tso zis cuam tshuam los ntawm nplooj ntawv web tom qab thiab cov khawm tswj ntawm lub vaj huam sib luag pem hauv ntej ntawm lub cuab yeej, thiab tseem txhawb nqa tag nrho rau / tawm tswj ntawm 8 lub zog tso tawm interfaces;
Ordinary anti-accidental touch key lock: Txhawm rau tiv thaiv kev ua haujlwm tsis sib haum xeeb, xauv lossis qhib lub zog tso zis tswj tus yuam sij los ntawm lub xauv khawm ntawm lub vaj huam sib luag pem hauv ntej ntawm lub cuab yeej;
Kev tso cai siab tshaj los tiv thaiv kev sib tsoo lub network xauv: txhawb cov thawj coj nkag mus rau hauv lub vev xaib thiab teeb tsa lub xauv lossis qhib lub luag haujlwm ntawm txhua tus tswj khawm ntawm lub vaj huam sib luag pem hauv ntej ntawm lub cuab yeej kom tiv thaiv kev sib tsoo. Kev xauv tsuas tuaj yeem ua tiav tom qab dhau qhov kev lees paub kev tso cai ntawm tus thawj tswj hwm;
Cua hloov (overcurrent protector): me me Circuit Court breaker, 40A, 2P ob-ncej cua hloov;
Kev tiv thaiv xob laim: nrog surge suppression circuit;
Thaum qhib tag nrho lossis kaw tag nrho, lub sijhawm ncua sij hawm ntawm txhua qhov channel tuaj yeem teem caij sib cais, nrog kev ncua ntev tshaj plaws ntawm 999 vib nas this thiab ncua sijhawm ncua sijhawm ntawm 1 thib ob;
Txhawb cov neeg thib peb lub platform los tswj cov khoom siv los ntawm lub network, remotely tau txais cov khoom siv hluav taws xob, txhua qhov tso zis tam sim no, kev siv hluav taws xob, kev siv hluav taws xob, sijhawm ua haujlwm, ceeb toom txawv txav thiab lwm yam ntaub ntawv, remotely hloov cov zis ntawm kev ua haujlwm ntse thiab kev tswj xyuas lub zog, teeb tsa hom kev ua haujlwm, lub hwj chim-on ncua sij hawm, lub sij hawm hloov thiab lwm yam tsis; network chaw taws teeb tswj interface (lub sij hawm lub sij hawm rau / tawm), tej thaj chaw deb hwj chim txheeb cais interface (tam sim no tso zis tam sim no ntawm txhua channel, tam sim no hwj chim noj ntawm txhua channel), thiab kev khiav hauj lwm raws li txoj cai ntawm txhua qhov chaw nres nkoj;
ceeb toom cov ntaub ntawv thaum cov zis tam sim no ntawm txhua lub hwj huam mov loj dhau los yog tsawg dhau. Lub tswb tam sim no pib thiab lub sij hawm pib yog configurable thiab tsis enabled los ntawm lub neej ntawd. Cov ntaub ntawv ceeb toom tau tshaj tawm rau lwm qhov chaw ua haujlwm tej thaj chaw deb thiab txij nkawm platform los ntawm lub network;
Tom qab lub tshuab hluav taws xob raug kaw thiab rov ua dua, nws cia li nkag mus rau qhov kev teeb tsa preset hom, suav nrog: tag nrho rau, tag nrho tawm, thiab rov kho lub xeev ua ntej lub hwj chim tsis ua haujlwm;
8 pawg ntawm timers, uas tuaj yeem ua ke arbitrarily; txhawb kev teeb tsa ntawm lub sijhawm hloov pauv rau txhua qhov tso zis, thiab lub voj voog lub sijhawm tuaj yeem raug teeb tsa kom ua tiav ib zaug lossis txhua hnub, lis piam, hli, thiab lwm yam .;
Lub vaj huam sib luag pem hauv ntej muaj lub teb chaws tus qauv 5- core socket rau lub zog ntev; lub vaj huam sib luag tom qab muaj 5 lub teb chaws tus qauv 5- lub qhov (sockets) thiab 3 universal 3- qhov (sockets), ntawm 8 lub qhov (socket) ntawm lub vaj huam sib luag nram qab tuaj yeem tswj tau;

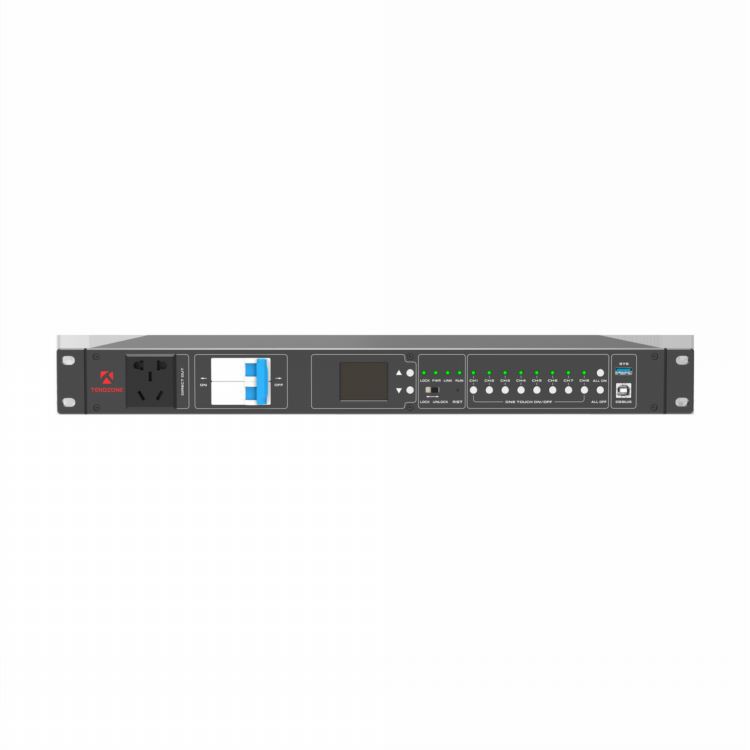

Lub vaj huam sib luag pem hauv ntej muaj lub vijtsam LCD uas xaiv thiab qhia cov ntaub ntawv ua haujlwm, xws li: lub npe ntaus ntawv / cov qauv khoom / software thiab kho vajtse version, cov ntaub ntawv network (IP chaw nyob / MAC chaw nyob), hnub tim, tam sim no / voltage / tag nrho cov ntaub ntawv hluav taws xob ntawm txhua channel, thiab tuaj yeem saib xyuas cov xwm txheej ntawm txhua tus channel;
Lub vaj huam sib luag pem hauv ntej muaj 1 LOCK tiv thaiv kev sib tsoo qhov ntsuas ntsuas lub teeb, 1 PWR lub teeb lub ntsiab, 1 LINK network teeb, 1 RUN lub teeb, thiab CH1 ~ CH8 channel ua haujlwm teeb pom kev zoo.

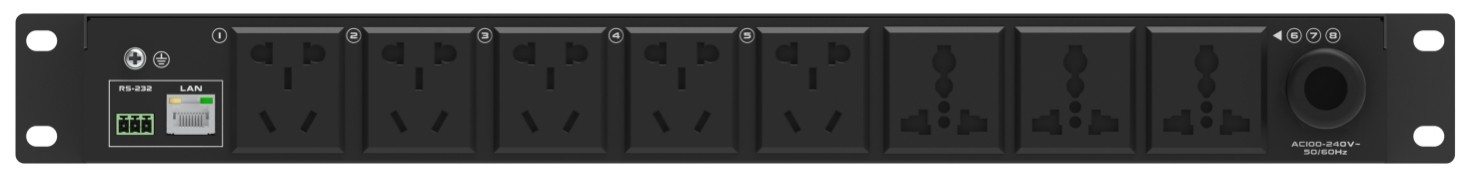

Lub Vaj Huam Sib Luag
Cim npe nrov: Tuam Tshoj ntse kev ua haujlwm thiab kev saib xyuas fais fab, Tuam Tshoj ntse kev ua haujlwm thiab kev saib xyuas fais fab manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Hardware Function |
|
|
Hom Chaw |
Txhawb kev teeb tsa ntawm cov cuab yeej ua haujlwm, suav nrog: hom sib txuas, hom relay; Lub cuab yeej ua haujlwm rau hom sequencer, uas qhov kev txiav txim thiab ncua sij hawm ntawm txhua qhov hloov pauv tuaj yeem teeb tsa; nyob rau hauv relay hom, txhua qhov hloov pauv tuaj yeem tswj tau los ntawm phau ntawv khawm, web backend, lossis tswj cov lus txib; |
|
Fais fab tso zis hloov |
Kev them nyiaj yug rau / tawm tswj ntawm 8 lub zog tso zis cuam tshuam los ntawm lub vev xaib keeb kwm yav dhau los thiab cov khawm tswj ntawm lub vaj huam sib luag pem hauv ntej ntawm lub cuab yeej; Nws kuj txhawb nqa tag nrho rau / tawm tswj ntawm 8 lub zog tso zis interfaces; |
|
Fais fab interface hom |
Lub vaj huam sib luag pem hauv ntej muaj ib lub teb chaws tus qauv 5- core socket rau lub hwj chim ntev; lub vaj huam sib luag tom qab muaj tsib lub teb chaws tus qauv 5- qhov (sockets) thiab peb lub universal 3- qhov (sockets), ntawm yim lub qhov (socket) ntawm lub vaj huam sib luag nram qab tuaj yeem tswj tau. |
|
Central tswj interface |
1- txoj kev RS232 tswj , 1- txoj kev RJ45 network tswj; |
|
USB interface |
1 HOM-A interface rau kev hloov kho software; 1 HOM-B interface, siv rau cov khoom siv debugging; |
|
LCD zaub |
LCD npo pov ntawv pov thawj, xws li: lub npe ntaus ntawv / ntaus ntawv qauv / software thiab kho vajtse version, cov ntaub ntawv network (IP chaw nyob / MAC chaw nyob), hnub tim system, tam sim no / voltage / tag nrho cov ntaub ntawv hluav taws xob ntawm txhua channel; |
|
LED qhov taw qhia ua haujlwm |
Lub vaj huam sib luag pem hauv ntej muaj 1 LOCK tiv thaiv kev sib tsoo qhov ntsuas qhov ntsuas lub teeb, 1 PWR lub teeb lub ntsiab, 1 LINK network teeb, 1 RUN lub teeb, thiab lub vaj huam sib luag pem hauv ntej qhia cov teeb pom kev ua haujlwm ntawm CH1 ~ CH8 raws; |
|
Anti-accidental touch key xauv |
Txhawm rau tiv thaiv kev ua haujlwm tsis raug, xauv lossis qhib lub zog tso zis tswj khawm los ntawm lub xauv khawm ntawm lub vaj huam sib luag pem hauv ntej ntawm lub cuab yeej; |
|
Lub suab nrov nrov |
Thaum ua haujlwm hauv pem hauv ntej vaj huam sib luag tswj cov nyees khawm, muaj lub suab tam sim; |
|
Cua hloov (overcurrent protector) |
Miniature Circuit Court breaker, 40A, 2P ob-ncej cua hloov; |
|
xob laim tiv thaiv tsim |
Nrog surge suppression Circuit Court; |
|
Max load zog |
6500W, voltage 220V, tag nrho cov khoom tso tawm tam sim no ntawm cov cuab yeej yog li 30A, thiab qhov siab tshaj plaws tso zis tam sim no ntawm ib lub qhov (socket) yog 10A; |
|
Lub zog nkag |
100-230V AC, 50/60Hz, tawm tswv yim los nrog 3-core 6-square fais fab cord 1.8 meters liab qab hlau (tsis muaj fais fab plug) |
|
Factory Reset |
Nrog lub Hoobkas pib dua khawm |
|
Chaw taws teeb tswj |
|
|
Built-in WEB nplooj ntawv |
Built-in WEB nplooj ntawv, txhawb cov neeg siv kev nkag mus rau kev tswj hwm kev ua haujlwm, txhawb nqa txhua lub zog tso zis tswj cov cuab yeej, network, kev hloov kho, kev tswj hwm hauv nruab nrab thiab lwm yam kev teeb tsa |
|
Tus neeg siv tus password hloov pauv |
Txhawb kev hloov kho tus neeg siv nkag tus password |
|
Cov neeg siv online txheeb cais |
Txhawb kev txheeb cais ntawm cov neeg siv tam sim no nkag rau hauv lub cuab yeej |
|
Chaw taws teeb ua haujlwm thiab tu |
Txhawb cov neeg thib peb lub platform los tswj cov khoom siv hauv lub network, remotely tau txais cov ntaub ntawv xws li cov zis hluav taws xob, tam sim no, lub zog siv hluav taws xob, kev siv hluav taws xob, sijhawm ua haujlwm, ceeb toom txawv txav, thiab lwm yam ntawm txhua qhov channel, hloov pauv txhua lub channel tso tawm, teeb tsa kev ua haujlwm, fais fab tuag ncua sij hawm, lub sij hawm hloov thiab lwm yam tsis; muab lub network chaw taws teeb tswj interface (lub sijhawm ntawm lub cuab yeej rau / tawm), cov chaw taws teeb tswj hluav taws xob sib txuas (tam sim no cov zis tam sim no ntawm txhua channel, tam sim no tso zis hluav taws xob noj ntawm txhua channel); |
|
Tswb muaj nuj nqi |
tshaj tawm cov ntaub ntawv ceeb toom thaum cov zis tam sim no ntawm txhua lub zog hluav taws xob loj lossis me dhau, thiab lub tswb tam sim no pib thiab lub sijhawm pib raug teeb tsa; Tsis tau qhib los ntawm lub neej ntawd; ceeb toom cov ntaub ntawv ceeb toom rau lwm qhov chaw ua haujlwm tej thaj chaw deb thiab txij nkawm ntawm lub network; |
|
Serial chaw nres nkoj tswj |
Txhawb lwm yam khoom siv los tswj cov cuab yeej los ntawm qhov chaw nres nkoj serial; txhawb kev teeb tsa ntawm cov chaw nres nkoj serial xws li baud tus nqi, cov ntaub ntawv me ntsis, parity check, nres me ntsis, thiab lwm yam. |
|
Network Tswj |
Txhawb TCP / UDP network tswj raws tu qauv; Kev txawj ntse cascading tuaj yeem ua tiav los ntawm RJ45 network interface, thiab mus txog 255 kev ua haujlwm ntse thiab kev tswj xyuas fais fab tuaj yeem tswj tau ib txhij; |
|
Muab cov cuab yeej tswj API |
Cov cuab yeej txhawb nqa muab API interface, koom ua ke thiab tswj hwm los ntawm cov txheej txheem thib peb, thiab muab cov websocket interface; |
|
Nta ntxiv |
|
|
Kev tso cai siab tshaj los tiv thaiv kev sib tsoo lub network kaw |
Cov thawj coj tuaj yeem nkag mus rau hauv lub vev xaib thiab teeb tsa kom kaw lossis qhib txhua lub khawm tswj ntawm lub vaj huam sib luag pem hauv ntej ntawm lub cuab yeej kom tiv thaiv kev sib tsoo. Kev xauv tsuas tuaj yeem ua tiav tom qab dhau qhov kev lees paub ntawm tus thawj tswj hwm; |
|
Ordinary anti-accidental touch key xauv |
Kev them nyiaj yug xauv los yog xauv lub hwj chim tso zis tswj khawm los ntawm lub xauv khawm ntawm lub vaj huam sib luag pem hauv ntej ntawm lub cuab yeej; |
|
Channel ncua kev ua haujlwm |
Thaum qhib tag nrho lossis kaw tag nrho, lub sijhawm ncua sij hawm ntawm txhua qhov channel tuaj yeem teem caij sib cais, nrog kev ncua ntev tshaj plaws ntawm 999 vib nas this thiab ncua sijhawm ncua sijhawm ntawm 1 thib ob; |
|
Restore nco hom |
Tom qab lub tshuab hluav taws xob raug kaw thiab rov ua dua, nws cia li nkag mus rau qhov kev teeb tsa preset hom, suav nrog: tag nrho rau, tag nrho tawm, thiab rov qab mus rau lub xeev ua ntej lub zog tsis ua haujlwm |
|
Timer |
8 pawg ntawm timers, uas tuaj yeem ua ke arbitrarily; txhawb kev teeb tsa ntawm lub sijhawm hloov pauv rau txhua qhov tso zis, thiab lub sijhawm voj voog tuaj yeem tsim kho kom ua tiav ib zaug lossis txhua hnub, lis piam, hli, thiab lwm yam; |
|
Cov lus nug txog kev ua haujlwm |
Txhawb querying ua hauj lwm raws li txoj cai tsis xws li tso zis voltage, tso zis tam sim no, hwj chim, hwj chim noj, sij hawm ua hauj lwm, thiab lwm yam rau txhua channel; txhawb querying ua hauj lwm raws li txoj cai parameters los ntawm lub web los yog lwm yam platforms; |
|
Tso zis zog txheeb cais |
Kev txheeb cais ntawm kev siv hluav taws xob ntawm 8 qhov chaw tso zis; Txhawb kev nug cov ntaub ntawv txheeb xyuas los ntawm lub vev xaib lossis lwm lub platform; lub zog tuaj yeem hloov kho manually; |
|
Qhov System Management |
|
|
Cov Ntaub Ntawv Txheej Txheem |
Txhawb lub vev xaib ntawm cov ntaub ntawv ntaus ntawv xws li lub npe ntaus ntawv, hom ntaus ntawv, ntaus qauv, software thiab kho vajtse version, MAC chaw nyob, thiab lwm yam. |
|
Hloov kho lub npe ntaus ntawv |
Txhawb kev hloov kho lub npe ntawm lub vev xaib; |
|
System Configuration |
Txhawb kev teeb tsa ntawm lub sijhawm synchronization, NTP, txuas thiab lwm yam haujlwm; |
|
Cov npe kev pabcuam |
Txhawb kev tswj hwm cov kev pabcuam hauv nruab nrab, saib xyuas cov xwm txheej ntawm txhua qhov kev pabcuam kev pabcuam, thiab tuaj yeem pib thiab tso tseg cov kev pabcuam kev pabcuam; |
|
WebDav |
Txhawb nqa uploading, rub tawm, tsim, hloov kho thiab lwm yam haujlwm ntawm cov ntaub ntawv ntawm lub cuab yeej los ntawm lub vev xaib; |
|
Network Configuration |
Txhawb lub network IP chaw nyob, subnet daim npog qhov ncauj, lub qhov rooj default, DNS thiab lwm yam kev teeb tsa; |
|
Tswj raws tu qauv |
Txhawb serial chaw nres nkoj raws tu qauv, TCP\UDP network raws tu qauv; |
|
Lub cev Parameters |
|
|
Ua haujlwm ib puag ncig |
Kub -10 degree -50 degree, av noo 10 ~ 80%, pom zoo qhov siab Tsawg dua lossis sib npaug li 2000 meters |
|
Cia ib puag ncig |
Kub {{0}} ~ 65 degree, av noo 0 ~ 95%, pom zoo qhov siab Tsawg dua lossis sib npaug li 2000 meters |
|
Cov khoom loj (dav * qhov siab * qhov tob) |
436.8 hli * 50 hli * 300 hli |
|
Khoom hnyav |
Puag hnyav 4.5KG, ntim hnyav 5.4KG |
