Hwm Cov Ntaub Ntawv thiab Tshaj Tawm Hauv Chav Kawm Terminal

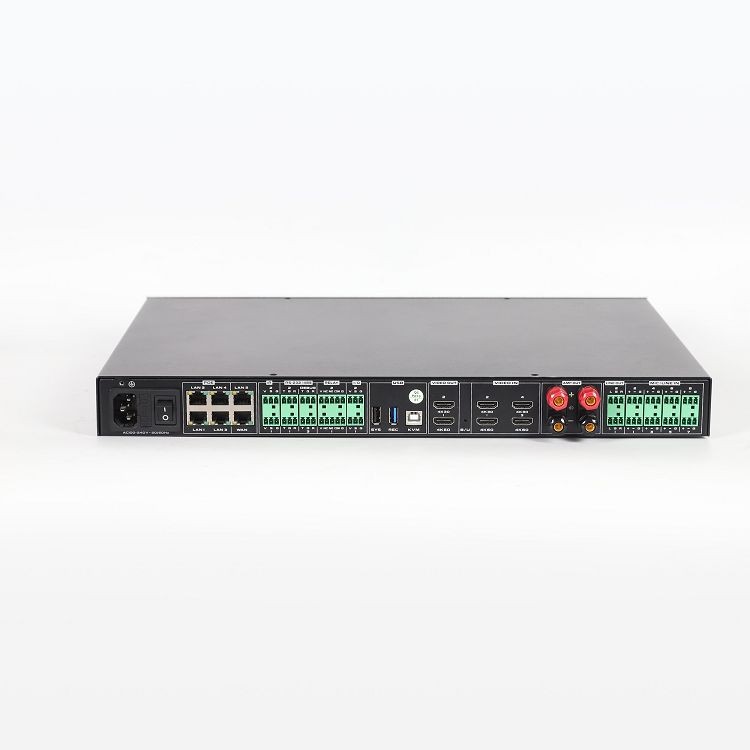

Lub tsev kawm ntawv ntse TCN108P RO tau txais kev hloov kho tshiab ua haujlwm siab ua haujlwm. Nws yog cov khoom siv ntse ntse uas sib txuas ua ke digital audio processing, video matrix, qhia kev tswj hwm hauv nruab nrab, kev tshaj tawm xov xwm, kev sib tham video, IoT tswj, boutique kaw thiab tshaj tawm, POE hloov thiab lwm yam kev ua haujlwm. Tus tswv tsev muaj RS-232, RS-485, RELAY, I/O, infrared I/R, USB, fais fab amplifier davhlau ya nyob twg, MIC/LINE IN input (txhawb phantom fais fab mov), Phoenix taub hau stereo LINE OUT, HDMI, LAN chaw nres nkoj, WAN chaw nres nkoj thiab lwm yam kev nplua nuj tawm tswv yim thiab tso tawm lub cev sib cuam tshuam, sib piv ntau yam khoom siv suab thiab video thiab cov cuab yeej tswj ib puag ncig kom tau raws li qhov xav tau ntawm kev qhia qhia ntawv hauv daim ntawv thov scenario ntawm boutique kaw thiab tshaj tawm hauv chav kawm.

Video tswv yim:4 HDMI interfaces (HDMI1 thiab HDMI3 inputs txhawb 4K30 thaum tus thawj coj hom tsis tau qhib), IP network lub koob yees duab hauv zos tau txais kev txhawb nqa tsis pub tsawg dua 16 channel, thiab kev xa tawm network txhawb tsis pub tsawg dua 4 raws;

Video tso zis:2 HDMI interfaces;

Suab input:8 channel Phoenix davhlau ya nyob twg inputs, txhawb 48V phantom fais fab mov, MIC input thiab kab hauv linear input adaptive;

Suab tso zis:2 khub ntawm Kab OUT Phoenix terminals rau tso zis tso suab (L / R tuaj yeem tso tawm suab ntawm nws tus kheej), 2 channel 100W @ 8 ohm digital amplifier outputs;

Tswj chaw nres nkoj:3 x RS-232/RS-485, 2 x RELAY, 2 x I/O, 2 x infrared IR, 1 x Debugging chaw nres nkoj ;

Gigabit network hloov:1 WAN chaw nres nkoj, 5 LAN chaw nres nkoj, VLAN tuaj yeem muab faib, LAN1-LAN4 txhawb POE fais fab mov;

USB interface:2 x USB Hom-A, 1x USB Hom-B, txhawb nqa tsis siv neeg luam ntawm cov ntaub ntawv kaw tseg thiab hloov kho qhov system;

Hard disk:Built-in txheem 2TB hard disk;

Kev teeb tsa:Txheem 19-inch khib installation, qhov siab tsis tshaj 1U;

ZigBee qhov rooj nkag:Txhawb lub rooj vag nkag mus rau lub davhlau ya nyob twg ntawm RJ45, thiab tswj IoT module los ntawm kev tswj vaj huam sib luag;

Kev sib txuas:Lub koob yees duab qhia kev taug qab yog txuas nrog lub chaw kawm ntse ntawm lub network cable, thiab lub koob yees duab yog siv los ntawm POE;

Hloov khawm:Ob chav fais fab hloov ua kom lub cev muaj kev ruaj ntseg, pem hauv ntej vaj huam sib luag high-power mos hloov, rear vaj huam sib luag high-power nyuaj hloov.

• Txhawb HDMI teeb liab thiab network RTSP kwj teeb liab nkag mus, ywj siab encoding thiab txiav txim siab ntawm txhua HDMI video, 8-channel 1080P@30 encoding thiab 8-channel 1080P@30 kev txiav txim siab; txhawb H.265 thiab H.264;
• Kev sib cuam tshuam yees duab muaj qhov siab tshaj plaws los tiv thaiv lub network jitter muaj peev xwm txog li 600ms, kom ntseeg tau tias qhov kev vam meej ntawm kev sib tham sib hu yog qhov pib tsis cuam tshuam thaum muaj kev sib tham hauv network. Qhov siab tshaj plaws lub ntsiab thiab theem nrab cov kwj dej tuaj yeem hloov kho rau 8Mbps, qhov siab tshaj plaws ntws tswj yog 20 zaug, qhov kuv lub sijhawm thov tuaj yeem hloov kho, thiab qhov siab tshaj plaws ntawm kev txiav txim siab qhov kev ua siab ntev yog 100;
• Tus tswv tsev muaj built-in hybrid multi-screen synthesis, txhawb ntau yam video hloov, faib, subtitle overlay, duab parameter hloov, thiab mosaic configuration;
• Built-in cov ntaubntawv povthawj siv hauv zos thiab khaws cia ua haujlwm, txhawb nqa txog li 6 txoj hauv kev kaw cov yeeb yaj kiab thiab suab (movie hom thiab hom peev txheej); txhawb RTMP nyob streaming laub muaj nuj nqi, thiab nyob streaming muaj peev xwm arbitrarily xaiv lub suab thiab video kwj txuas nrog lub tshuab hauv zos; Cov yeeb yaj kiab kaw tuaj yeem ua si raws li qhov xav tau ntawm WEB, lossis tso tawm rau cov zaub los ntawm HDMI rau kev txiav txim siab thiab rov ua haujlwm; txhawb nqa docking nrog peb-tog FTP platforms, upload cov ntaub ntawv kaw tseg, lub sijhawm upload tuaj yeem hloov kho, thiab lub sijhawm kaw tuaj yeem teem rau txhua hnub (ntau tshaj 24 teev);
• Cov ntaub ntawv kaw MP4 tuaj yeem rub tawm los ntawm W EB davhlau ya nyob twg. Koj tuaj yeem xaiv rub tawm cov yeeb yaj kiab hom ntaub ntawv lossis tag nrho cov ntaub ntawv. Cov ntaub ntawv kaw tseg tuaj yeem txheeb xyuas raws sijhawm thiab lub sijhawm kaw. Koj tuaj yeem rub tawm cov ntaub ntawv ncaj qha mus rau USB flash drive.
• Built-in video splitting thiab synthesis muaj nuj nqi, uas muaj peev xwm paub ib qho screen, ob-screen, peb-screen, cuaj-screen, kaum rau-screen thiab lwm yam ib qho screen / duab-hauv-daim duab / duab-tawm-daim duab synthesis thiab subtitle overlay;
• Txhawb kev nkag mus rau cov kev tswj hwm kev faib tawm, txhawb lub davhlau ya nyob twg nkag mus rau cov duab saib ua ntej, faib kev pom kev tswj xyuas thiab faib cov duab ntawm lub vijtsam, thiab siv los ua ib qho kev faib tawm tswv yim thiab cov khoom siv interface;
• Lub suab processor module sib xyaw ua haujlwm: txhawb kev sib xyaw ntawm lub suab hauv zos, HDMI embedded suab, thiab tej thaj chaw deb network suab ntws mus rau hauv lub zos audio interface; kuj txhawb kev sib xyaw ntawm lub suab hauv zos, HDMI embedded suab, thiab network suab ntws mus rau hauv lub network suab module;
• Audio processing module, built-in AFC, ANS, AEC, AGC audio processing algorithms, nruab nrog expander, equalizer, compressor, ncua, limiter thiab pre- thiab post-processing modules; kev sib xyaw ua ke, txhawb MIC / LINE, HDMI, network audio input, suab routing tuaj yeem hloov kho LINE OUT, HDMI OUT, lub zog amplifier AMP OUT tso zis;
• Txhawb SIP dual-kem kev sib tham video hu, txhawb txuas ntxiv kev sib tham hauv ntau qhov video, thiab txhawb nqa 1+3- tog chaw taws teeb qhia kev sib tham video;
• Kev sib txuas lus raws tu qauv: SIP, BFCP dual kwj, RTSP, RTMP, TCP/IP, FTP, UDP, TLS;
• Txhawb nqa tsis siv neeg thev naus laus zis ntawm tus tswv tsev kaw cov ntaub ntawv rau USB flash drive, txhawb kev luam cov chav kawm tshiab thiab ib lub lim tiam, yuam kev hloov kho ntawm USB flash drive system thiab kho dua tshiab ntawm kev teeb tsa thawj zaug;
• Lub Vev Xaib muaj qhov chaw nres tsheb tsis siv neeg tshaj tawm, uas txhawb nqa tsis siv neeg, semi-automatic thiab phau ntawv tshaj tawm hom; txhawb PVW thiab PGM npo hloov, kaw, nres thiab nres ua haujlwm; lub koob yees duab kev lag luam, kev tshuaj ntsuam synthesis thiab pib tshaj tawm nyob; txhawb kev txuas lub sijhawm teem sijhawm;
• Tus thawj coj chaw nres tsheb txhawb kev saib ua ntej ntawm lub khoos phis tawj lub khoos phis tawj, lub khoos phis tawj desktop, tus kws qhia ntawv panorama, tus kws qhia ntawv kaw, cov tub ntxhais kawm panorama, cov tub ntxhais kawm kaw, sab laug blackboard, txoj cai blackboard, thiab PVW thiab PGM cov ntxaij vab tshaus; thiab raws li tus thawj coj lub tswv yim, nws tuaj yeem ua tsis siv neeg, semi-automatic, thiab phau ntawv tswj tus thawj coj.
• Tus thawj coj lub chaw nres tsheb txhawb kev sib txuas nrog lub platform rau cov sij hawm hauv chav kawm, thiab ua cov ntaub ntawv tsis siv neeg thiab tsis siv neeg tswj raws li cov txheej txheem hauv chav kawm;
• Kev tswj lub koob yees duab ntawm tus thawj coj chaw nres tsheb, txhawb kev tswj lub koob yees duab pem hauv ntej-kawg, teeb tsa preset txoj haujlwm, hu rau preset txoj haujlwm, txhawb 10 txoj haujlwm preset; txhawb kev tswj lub koob yees duab focal ntev thiab kab rov tav tig;
• Tus thawj coj chaw nres tsheb txhawb kev kaw cia thiab tshaj tawm kev tswj hwm, txhawb kev kaw thiab tshaj tawm xov xwm pib, nres, thiab nres ua haujlwm; txhawb kev tshaj tawm hauv xov tooj cua pib thiab nres ua haujlwm; txhawb nqa tsis siv neeg, semi-automatic, thiab phau ntawv tus thawj coj teeb tsa;
• Tus thawj coj lub console txhawb layout chaw, txhawb 12 tsau video synthesis hom layout hu, thiab yuav customize 6 layout hom;
• Tus thawj coj lub chaw nres tsheb txhawb nqa video hom layout chaw rau HDMI1, HDMI2, thiab virtual multi-screen channels;
• WEB txhawb kev hloov pauv tus tswj vaj huam sib luag txoj kev nkag mus, thiab txoj kev nkag mus txhawb ib tus password nkag thiab username + password nkag mus;
• Txhawb nqa tsis siv neeg nrhiav lossis kev teeb tsa ntawm cov cuab yeej IP chaw nyob, rooj vag, thiab cov ntaub ntawv npog npog, thiab txhawb nqa VLAN faib thiab NAT teeb tsa ntawm cov chaw nres nkoj network;
• Txhawb video encoding nqis, koj tuaj yeem teeb tsa cov video encoding zoo, ncej tus nqi, tus nqi me ntsis (128K-8}M), kev daws teeb meem, kuv lub sijhawm ncua sijhawm, kuv ncej thiab P ncej quantization coefficient;
• Txhawb multicast muaj nuj nqi, koj tuaj yeem teeb tsa chaw nyob multicast thiab multicast chaw nres nkoj;
• Txhawb kev kaw lus tsis siv neeg thiab tshaj tawm kev teeb tsa, teeb tsa tus kws qhia ntawv, tub ntxhais kawm, lub koob yees duab blackboard nkag mus rau cov ntaub ntawv ntws, manually teeb tsa tus thawj coj code, tus thawj coj hloov code; tus thawj coj kaw npo channel;
• Txhawb kev teeb tsa ntawm cov xwm txheej tsis siv neeg tshaj tawm ua rau muaj qhov tseem ceeb thiab ua rau lub sijhawm khaws cia;
• Kev tswj hwm ib puag ncig: koj tuaj yeem teeb tsa lub hauv paus tswj hwm cov lus txib rau txhua RS232/485, I / O, thiab infrared tswj interface, teeb tsa cov ntawv, cov txheej txheem, cov haujlwm tau teem tseg, IoT rooj vag, suab thiab video txuas, ntaus ntawv tsa suab, kev tswj hwm network, Huawei kev tshuaj ntsuam xyuas (Hongmeng), ob txoj kev tsom xam, Beidou AI thiab lwm yam kev tswj hwm;
• Txhawb nqa mus txog 16 lub network video kwj nkag, tuaj yeem yooj yim saib xyuas cov suab thiab video raws tu qauv, cov ntaub ntawv bandwidth, network pob ntawv poob cov ntaub ntawv ntawm cov kwj video nkag, thiab teeb tsa mosaics rau cov kwj video; 2. RTSP streaming kev pabcuam, txhawb kev saib ua ntej thiab saib txhua qhov RTSP xa mus rau kwj ntawm nplooj ntawv web, teeb tsa txhua qhov kwj suab raws tu qauv (AAC, G711, G722), thiab video nkag mus xaiv qhov chaw xaiv;
• Kev them nyiaj yug system configuration ntaub ntawv ntshuam thiab export, Android tswj ntsiav tshuaj configuration ntaub ntawv ntshuam thiab download tau;
• Cov yeeb yaj kiab kaw tuaj yeem ua si raws li qhov xav tau hauv ntau lub vijtsam ntawm WEB, lossis tso tawm rau cov zaub los ntawm HDMI rau kev txiav txim siab thiab rov ua haujlwm; nws kuj txhawb kom tau txais cov ntaub ntawv video ntawm cov khoom siv zoo sib xws hauv tib lub network rau kev saib ntawm qhov xav tau.
