Txheej txheem cej luam

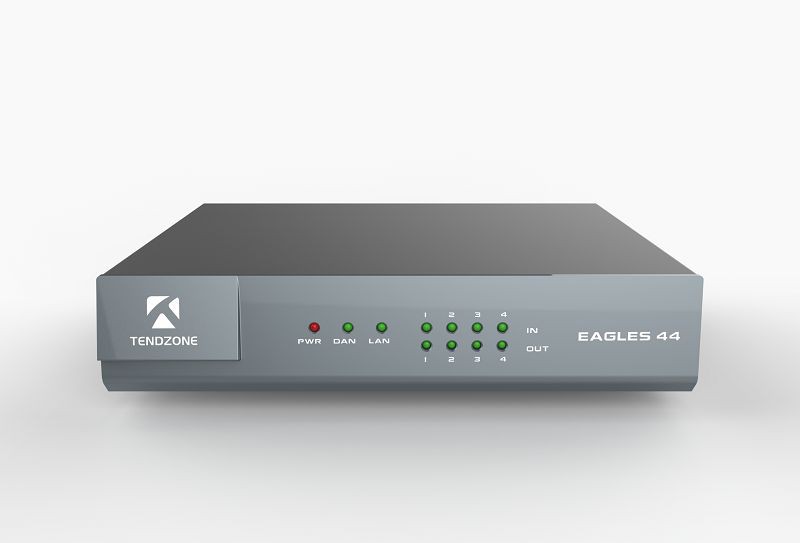

Tendzone EAGLES 44 audio interface tshuab siv Dante network suab tshuab nrog kev sib raug zoo, muab kev daws teeb meem rau kev xa tawm suab. Nws yog qhov yooj yim heev los txuas lub zog thiab cov ntaub ntawv (tswj + cov ntaub ntawv suab) los ntawm CAT5 / CAT6 network cable. Lub tshuab suab interface muaj ntau hom kev tawm tswv yim lossis cov zis rau cov neeg siv khoom xaiv los ntawm, nrog ntau hom kev teeb tsa. Nws tuaj yeem ntsia tau rau hauv cov txee, phab ntsa mounted, lossis ntau qhov sib xyaw ua ke kom tau raws li daim ntawv thov kev xa tawm suab xav tau ntawm ntau qhov chaw..
Nta
- 4- txoj kev sib npaug microphone / kab tawm tswv yim, siv 3.81 Phoenix davhlau ya nyob twg interface;
- 4- txoj kev tso zis, siv 3.81 Phoenix davhlau ya nyob twg interface;
- Cov tswv yim muaj 5 theem ntawm adjustable nce, +48V phantom fais fab mov, uas ua tau raws li qhov yuav tsum tau ntawm kab theem, dynamic microphone, thiab capacitive microphone kev twb kev txuas. Qhov nce tuaj yeem hloov kho los ntawm software;
- POE interface, tuaj yeem siv Ethernet powered keyboards uas ua raws li 802.3af tus qauv los txuas cov khoom siv rau kev sib txuas;
- Intuitive dual xim LED taw qhia lub teeb, tso saib cov teeb liab thiab clipping raws li txoj cai ntawm channel;
- Txhawb sab nraud 24VDC fais fab mov;
- 2- txoj kev GPIO, txhawb kev tswj kom muaj nuj nqis;
- Ib qho RS -232 bidirectional serial tswj interface;
- Dual 1000M network nkag, thiab tuaj yeem ua tiav cov ntaub ntawv tseem ceeb thiab theem nrab sib cais, nrog rau daisy saw network qauv.
QabVaj huam sib luag
Cim npe nrov: Tuam Tshoj 4x4 Dante interface manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
|
|
Input impedance |
Ntsuas 10K ohms, tsis sib npaug 5K ohms |
|
Sib npaug input nrov |
{{0}}dBu@0dB |
|
Qib siab tshaj tawm |
{{0}}dBu @ 0dB nce |
|
Tso zis rhiab heev |
0dBu, -6dBu, -12dBu |
|
Cov zis siab tshaj plaws |
{{0}}dBu@0dB nce |
|
Cov zis impedance |
200 ohms (sib npaug), 100 ohms (tsis sib npaug) |
|
zaus teb |
20 Hz -20 kHz, ± 0.5 dB |
|
dynamic ntau yam |
>106dB ib |
|
Tag nrho harmonic distortion ntawm qhov system (TH + N) |
<0.01% |
|
PoE qib |
Ua raws li 802.3af PoE PD qib 0 tus qauv |
|
ua haujlwm kub |
0 degree -40 degree |
|
ua haujlwm voltage |
DC 12V 1A |
|
Loj (dav * qhov siab * qhov tob) |
214mm x 44mm x 164mm |
