TheSlzone Mcn - 4611 Yog cov khoom siv sib xyaw ua ke nrog cov huab, txhawb nqa cov qauv kev sib xyaw ua ke rau cov khoom lag luam, cov qauv kev sib xyaw ua ke, uas tuaj yeem xaiv ntawm kev thov hauv Peb tes num. Thaum siv raws li cov qauv encoding Thaum siv raws li kev txiav txim siab ntawm node, nws txhawb 4K @K @K @K video decoding thiab video tawm khoom; Txhawb KVM lub rooj siv, thiab txhawb LED / LCD Splicing daim ntawv thov.
Nta
Lub ntsiab lus txhais, muaj ntau-ua haujlwm
- Txhawb Nqa 4K @ 60 Daws Teeb Meem Tso Tawm
- Txhawb Nqa 4K @K 30 Video PointionStal Nrhiav Tau thiab encoding
- Txhawb KVM Lub Rooj Thov
Cov ntse Spicing, koomhaum tswj hwm
- Txhawb cov zaub synchronous ntawm LED / LCD npo splicing cov duab
- Txhawb kev tswj hwm kev sib koom ua ke thiab kev tswj hwm ntawm cov txheej txheem xa tawm system platform software
- Txhawb nqa cov duab qhov rai, hla-screen, roaming, thiab overlay zaub
Kev nyab xeeb thiab txhim khu kev qha
- Kev Chips Hauv Tsev, Embedded Linux System, Tus Kab Mob-Dawb
- Txhawb Poe fais fab mov thiab sab nraud fais fab mov thaub qab
- Txhawb Kev Txuas Rov Qab Txuas Rov Qab
Yooj yim txij nkawm
- Fanless thiab kev tsim khoom ntsiag to, Optoelectronic thaub qab
- Kev tsim qauv ua ke, pub dawb rau encoding lossis decoding
- Txhawb 2 chav nyob sab los ntawm sab teeb; Txhawb nqa 12 chav nyob nruab nrab teeb tsa

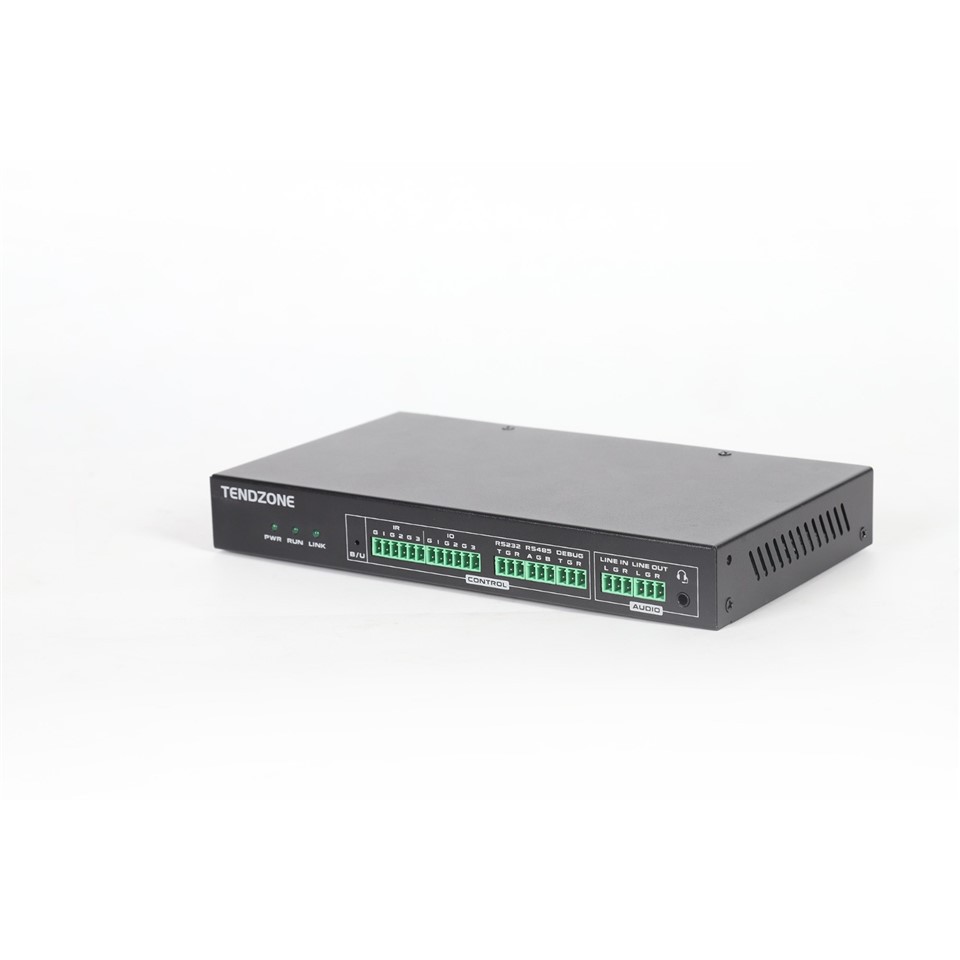

Cov Ntaub Ntawv Vaj Huam Sib Luag
(1) Daim Ntawv Qhia Lub Zog Ntsuas: Ib txwm nyob thaum muaj hwj chim rau
(2) Ua Haujlwm Teeb Meem Teeb: Flashes thaum lub program khiav ib txwm ua, thiab ib txwm nyob ntawm thaum txawv txav
(3) Qhov taw qhia sib txuas lus: flashes thaum txuas nrog tus neeg rau zaub mov, txawv txav thaum ib txwm muaj
(4) {{3 - txoj kev IO
(5) {3 - txoj kev ir
(6) ib channel RS 232
(7) ib qho Rs 485
(8) Debug Chaw nres nkoj Daim Ntawv Teev: Debug chaw nres nkoj, siv los nrhiav cov teeb meem
(9) txoj kab hauv cov lus qhia sib npaug
(10) Kab tawm cov khoom siv tawm
(11) 3. 5 hli interface ceeb toom: cov tswv yim thiab tso zis ua ke

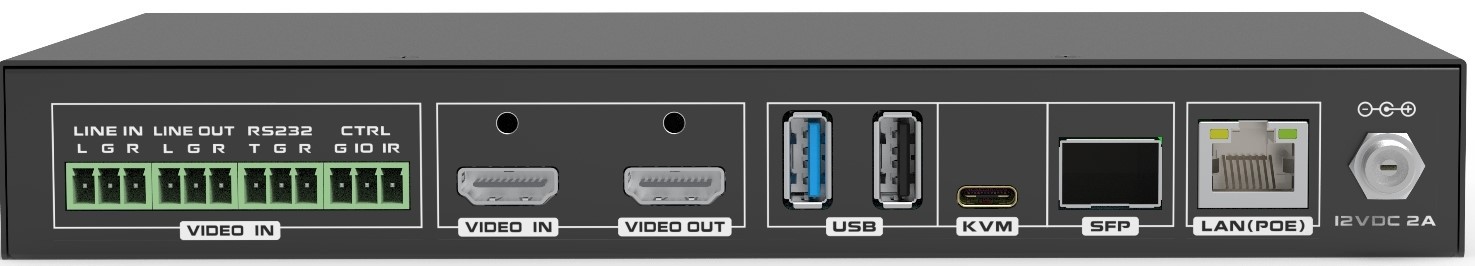

(1) txoj kab hauv cov lus qhia sib npaug
(2) Kab tawm cov khoom tawm
(3) ib channel RS 232
(4) ib qho io + ib tug ir
(5) HDMI In1 cov tswv yim (nrog audio)
(6) HDMI tawm cov zis tawm (nrog suab)
(7) USB3. {{0 Hom Tus Tswv Chaw Phot Copy: Txuas cov keyboard thiab nas thaum KVM Kev Txiav Txim Siab Ntawm
(8) USB2. {{0 Hom WEBS Chaw nres nkoj Nco: Txuas cov keyboard thiab nas thaum KVM
(9) Hom chaw nres nkoj (txhim kho) Nco ntsoov) Sau rau lub khoos phis tawm rau kev tswj hwm thaum siv KVM encoding ntawm
(10) SFP GigitS Optical Optical Network
(11) Poe Gigabab Equernet Chaw nres nkoj Chaw nres nkoj Ceeb Toom: Txhawb Paus Poe fais fab mov
(12) DC 12V / 2A fais fab chaw nres nkoj
Cim npe nrov: 4K AV Hla Decoder, Tuam Tshoj 4K AV Hla Decoder Chaw Tsim Tshuaj, Chaw muag khoom, Hoobkas
Cov lus qhia
|
Kev Ua Haujlwm General |
||
|
Cov Khoom Kho Vajtse |
Kev ua haujlwm hauv tsev codec chip; tsim raws li cov ntawv sau Linux, tsis muaj kab mob los yog trojan ntxeem tau; |
|
|
Vaj huam sib luag |
3 Cov xwm txheej xwm txheej: PWR, khiav, thiab txuas; |
|
|
Video Sib Xws |
1 Channel HDMI Video Cov Lus Qhia; 1 Channel HDMI video tawm; Txhawb nqa HDMI tsau khi; |
|
|
Suab interface |
{{0 {0}} txoj kev 3.5mm Lub Taub Hau Hau Ncaws / Tso Tawm; 2 lub kab sib piv audio; 2- Txoj Kev Ntsuas Kab Audio Tawm Tawm; |
|
|
Cov ntaub ntawv interface |
{{{0}} txoj kev USB 3.0 tus tswv tsev; {{{0}} Txoj kev usb 2.0 tsev; 1 hom-c inface, txhawb otg; |
|
|
Tswj interface |
4 io; 4 ir; 2 RS232; 1 Rs485; 1 RS232 Debug chaw nres nkoj; |
|
|
Network interface |
1 1000 m BPS Optical Fiber network chaw nres nkoj; 1 1000 m BPS Ethernet Chaw nres nkoj Chaw nres nkoj, txhawb POE fais fab tuag; |
|
|
Fais fab interface |
1 DC lub zog hluav taws xob sib cuam tshuam, 12v / 2A lub tswv yim; |
|
|
Ntaus Khoom Siv Hluav Taws Xob |
Tsawg dua los yog sib npaug rau 12 w; |
|
|
Kev tiv thaiv xau niaj hnub |
0. 25ma |
|
|
Kev Ua Haujlwm Ib puag ncig |
Kub: 0} ~ 45 degree; Tus txheeb ze cov av noo: 10% -90}% rh; |
|
|
Chaw Cia Ib Cheeb Tsam |
Kub: {-20 degree -60 degree; Tus txheeb ze cov av noo: 5% {1}}}}% Rh; |
|
|
Kev muab cia |
Ob tug 1U kab txee nruab ib sab; 8 Kev sib sau hauv nruab nrab; |
|
|
Qhov loj |
Cov khoom loj: 220 * 124 * 30 hli; Ntim loj: 540 * 280 * 90 hli; Luj nyhav: 0. 7kg; Tag nrho qhov hnyav: 2.48kg; |
|
|
Hoob txaws |
Txiav txim |
|
|
Cov tswv yim video |
N/A |
Txhawb 1- channel 4k @ 60fps kev nrhiav tau, 4K @ 30FPS video encoding, thiab rov qab zoo sib xws; Txhawb cov kev txiav txim siab encoding, tus nqi me me, tus nqi xaiv, tus nqi tswj tau li cas, tus nqi tswj hwm, tus nqi hloov kho tau 5 ~ 60 thav ntawv; |
|
Video Tso Tawm Lawm |
Txhawb 1 - channel 4K @K 4 Video tawm thiab txiav txim siab, nrog downward daws teeb meem; Txhawb kev teeb tsa kev cai; Txhawb H 264 / h265 daim ntawv cog lus video; |
Txhawb 1- channel 4k @ 30fps cov voj video tawm; |
|
Suab tawm tswv yim |
Thaum siv los ua KVM lub rooj zaum ntawm KVM ntawm, nws txhawb 1 3. 5mm audio cov tswv yim thiab 1 kab audio cov tswv yim; |
Txhawb 1- txoj kev 3.5mm lub taub hau khoom siv; 2- txoj kev ntsuas kab audio cov tswv yim; Txhawb AAC, G.711A, G.711U, G.722 audio hom encoding, 48kHz {{} me ntsis ntsuas tus nqi; |
|
Audio tso zis |
Txhawb 2- txoj kev ntsuas audio audio tawm; 1- Txoj kev 3.5mm Lub Taub Hau Taub Hau Tso Tawm; Txhawb AAC, G.711A, G.711U, G.722, o pus audio hom cim, 48kHz {{4 4 4}} me ntsis ntsuas tus nqi; |
N/A |
|
Video Paub |
Txhawb kev txheeb xyuas tsis siv neeg ntawm cov Edid ncua cov qauv qhia cov cim; Tau tshaj nrog txoj kev ntsuas PANG P system tau nce zuj zus; |
|
|
Kev Sib Txuas Lus Sib Tw |
Txhawb kev sib txuas lus hla-ntu; Txhawb DH CP rau Dynamically Tau Txais IP Chaw; Txhawb Nqa RTSP / RTP raws tu qauv; Pab txhawb nqa unicast thiab multicast; |
|
|
Cuab Yeej Siv thiab Txij Nkawm |
Txhawb nqa cov txheej txheem cov ntaub ntawv muaj sia nyob, cov ntaub ntawv nco txog cov ntaub ntawv, cov ntaub ntawv hauv CPU, thiab disk cov ntaub ntawv; Pab Txhawb Lub Vev Xaib; Kev txhawb nqa network teeb tsa, kev txhim kho, RESTART, log export, configuration ntshuam / export, ntshiab cov neeg siv kev teeb tsa, thiab lub Hoobkas restore; |
|
|
Subtitles / Tom Qab |
Txhawb cov chaw tom qab; Txhawb cov chaw subtitle; Txhawb cov zaub liab chij; |
|
|
Daim ntawv thov |
Txhawb KVM Tus Neeg Sawv Cev Thov; Kev them nyiaj yug Spricing zaub daim ntawv thov; Txhawb nqa ultra-siab-daws video shotchronization daim ntawv thov; |
|
