Amber NV200 Txheej txheem cej luam
Amber NV200 yog lub network adapter ntawm nws tus kheej tsim los ntawm TENDZONE, uas tuaj yeem txuas cov cim suab analog rau Vailink network, muab cov suab analog tawm tswv yim, tswj, thiab xa cov suab zoo hauv lub network los ntawm TENDZONE Vailink raws tu qauv. Tus neeg siv tuaj yeem tswj hwm Amber NV200 nyob rau hauv kev faib tawm lub suab kaw lus. Cov cuab yeej no feem ntau yog muab tso rau ze rau pem hauv ntej-kawg multimedia qhov chaw, microphone thiab lwm yam khoom siv, ua tus choj rau lub teeb liab sib txuas.
Nta
- Txais Suav ARM nti ua cov haujlwm tseem ceeb rau kev tswj cov cuab yeej thiab kev xa xov

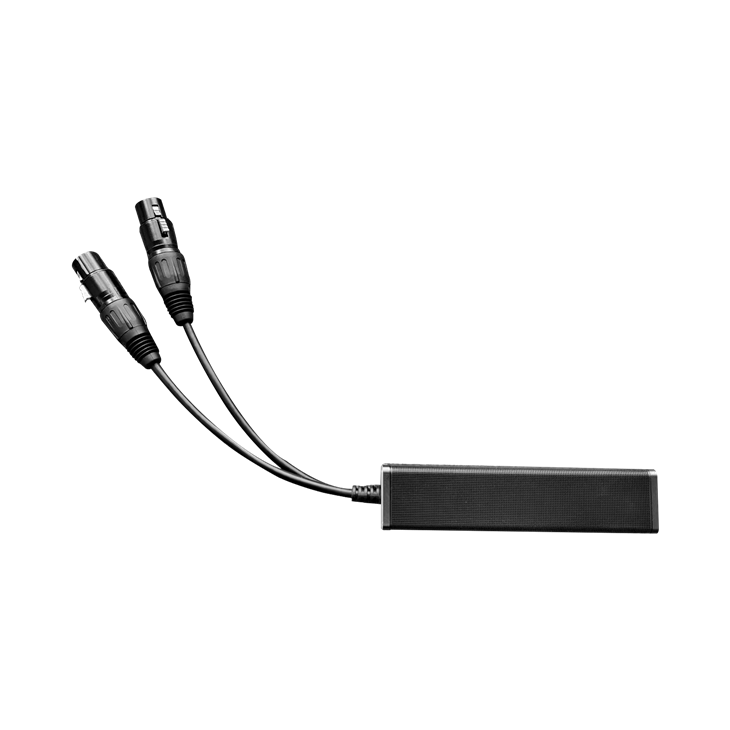

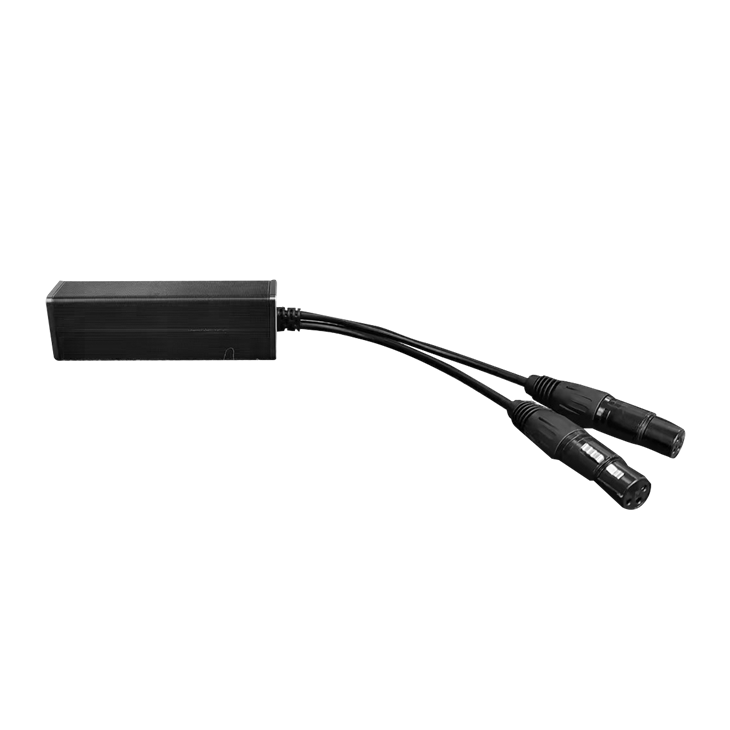

- 2 sib npaug kab inputs, XLR-F connector
- Txhawb kab thiab microphone tswv yim nrog 48V phantom zog
- 2 Vailink network audio transmission channels

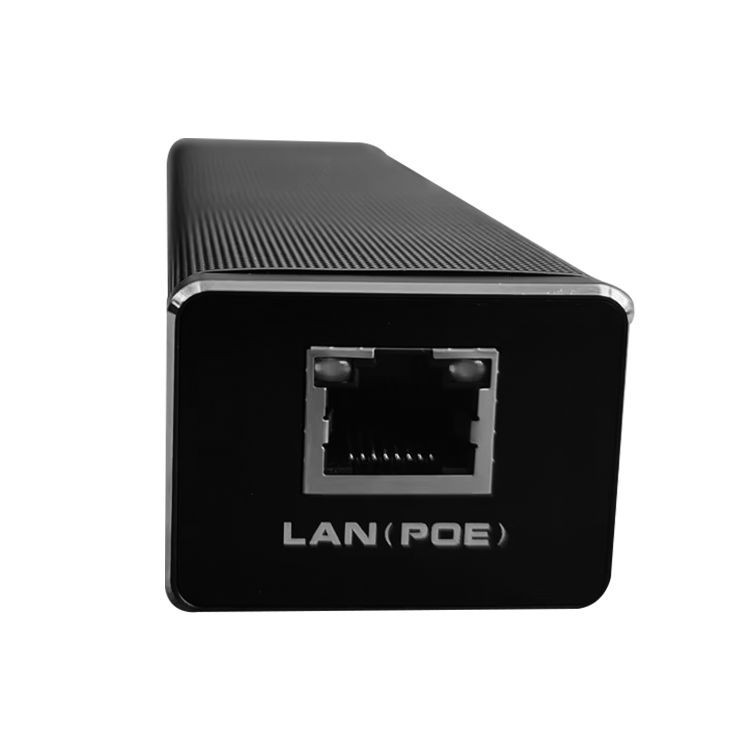

- RJ45 network interface, txhawb PoE fais fab mov, ua raws li tus qauv 802.3af
- Lub platform tswj thiab teeb tsa cov teeb liab routing
Cim npe nrov: vailink 2ch analog input adapter, Tuam Tshoj vailink 2ch analog input adapter manufacturers, lwm tus, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
|
|
Txoj Haujlwm Saib Xyuas |
Txhawb lub vev xaib hloov kho dua tshiab, kev teeb tsa network, lub Hoobkas pib dua, cav xa tawm haujlwm |
|
Analog Audio Input |
2 CH microphone / kab inputs, XLR-F kev suab interfaces, txhawb 48V phantom zog |
|
Analog Input Gain |
0 dBu , -10 dBu , -20 dBu , -30 dBu , -40 dBu |
|
Network Interface |
1 1000M adaptive Ethernet chaw nres nkoj, txhawb nqa lub zog ntawm PoE |
|
Zaus teb |
20Hz–20kHz, ± 0.2dB |
|
Tus nqi piv txwv |
48 KHz / 24 ntsis |
|
Dynamic Range |
>110 dB, qhov hnyav A |
|
TH + N |
<0.006 %@ 1KHz , 4 dBu |
|
Hom Kev Tsis Txaus Siab Sib Piv |
>76db ua |
|
Noise Floor (A-weighted) |
< -90 dBu |
|
Qib siab tshaj tawm |
{{0}} dBu@0dB nce |
|
Cov cuab yeej siv hluav taws xob |
5W |
|
Ua haujlwm kub |
0 degree -40 degree |
|
Cov av noo |
10% ~ 90% tsis muaj condensation |
|
Qhov hnyav |
0.2Kg |
