Txheej txheem cej luam
Lub network PoE phab ntsa-mounted kov npo TCP-200 yog lub rooj sib tham tswj cov ntsiav tshuaj tsim los ntawm TENDZONE rau CLIMBER series tag nrho-hauv-ib lub davhlau ya nyob twg. Lub vijtsam yog tsim rau siv hauv CLIMBER series built-in central tswj module. Nws tuaj yeem siv rau ib qho kev hloov pauv ntawm lub zog hluav taws xob ntawm cov khoom siv hauv chav sib tham, kev tshuaj ntsuam video hloov ntawm lub matrix built-in, kev tswj lub suab nrov, kev kaw suab thiab tshaj tawm, kev tswj hwm kev sib tham video, thiab txhawb kev npaj hu xov tooj. Nws yog qhov tsim nyog rau kev tswj hwm kev sib tham ntawm ntau hom chav sib tham. Thov nco ntsoov tias cov ntsiav tshuaj no tsis txhawb kev tswj qhov muag pom. Thaum siv kev tswj qhov muag pom, thov xaiv lub ntsiav tshuaj tswj nrog cov kev xav tau sib faib. Nws tuaj yeem siv rau qhov kov vaj huam sib luag ntawm CC-800 lub hauv paus tswj hwm.
Nta
- 10.1 nti, ARM architecture, mus txog 1.8Ghz lub ntsiab zaus
- Android 9.0 lossis siab dua, 8GB Emmc Flash, 2GB DDR4 RAM
- 1280 * 800 (16:10) daws teeb meem, embedded installation tsim, txheem installation puag lub thawv thiab connectors
- Txhawb kev lag luam tus qauv kev sib txuas lus network raws tu qauv
- Txhawb 1 Gigabit network interface, nrog tus nqi siab tshaj plaws txog li 1Gbps
- Txhawb POE fais fab mov lossis ywj siab DC 24 V / 1 A fais fab mov
- Txhawb nqa cov ntaub ntawv xa mus los ntawm POE network chaw nres nkoj thiab APP tswj software, paub txog ib kab ua haujlwm
- Capacitive kov npo, txhawb ntau kov
- Android ntsiav tshuaj tsim, tuaj yeem nruab daim ntawv thov thib peb, thiab txhawb kev txhim kho theem nrab;

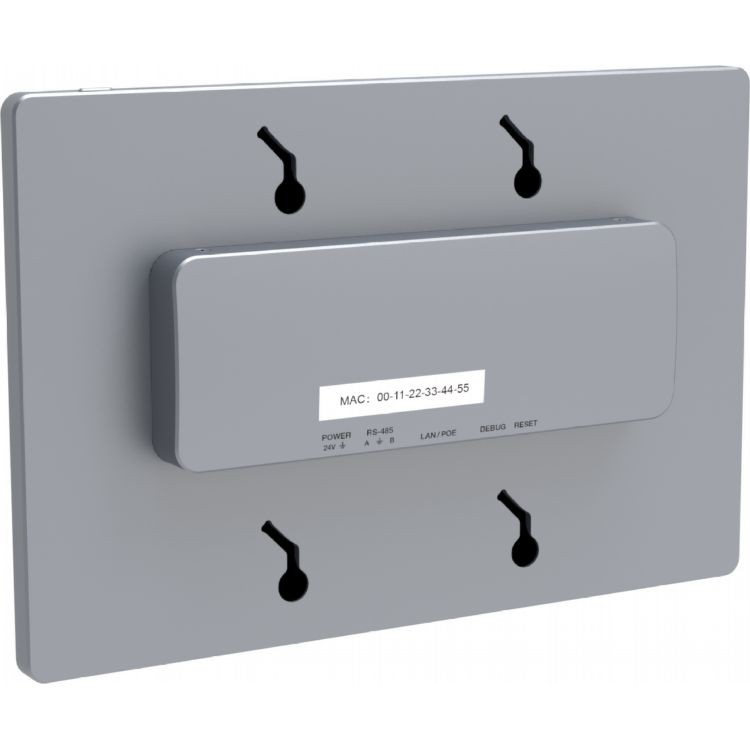

Kev teeb tsadaim duab ntawm lub box hauv qab:
Cim npe nrov: Tuam Tshoj embedded wired tswj kov vaj huam sib luag, Tuam Tshoj embedded wired tswj kov vaj huam sib luag manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
qhov project |
Specifications |
|
CPU |
Quad-core ARM 1.8GHz |
|
kev khiav hauj lwm qhov system |
Android 9 thiab saum toj no |
|
Nco |
2 GB DDR4 RAM |
|
flash nco |
8GB EMMC Flash |
|
Kev daws teeb meem |
1280*800 |
|
Kov hom |
Capacitive kov |
|
LAN/POE |
1 × RJ45 interface, 10M / 100M / 1000M Ethernet interface, txhawb POE muaj nuj nqi |
|
USB |
1 × Micro USB chaw nres nkoj, Debug lossis cov ntaub ntawv xa mus |
|
plhaub |
Vaj Huam Sib Luag - Kov npo; Rov qab plhaub - aluminium alloy plhaub |
|
xim |
Vaj huam sib luag - dub; Rov qab plhaub - apple grey; |
|
qhov loj |
245.4mm (ntev) × 164mm (dav) × 27mm (thickness) |
|
hnyav |
826g |
|
Fais fab mov |
DC 24V / 1A lossis POE fais fab mov |
|
Kev siv fais fab |
7 W |
|
Ua haujlwm kub |
0 degree ~ 40 degree / 32 degree F ~ 104 degree F |
|
txheeb ze humidity |
10 ~ 90% RH (tsis-condensing) |
