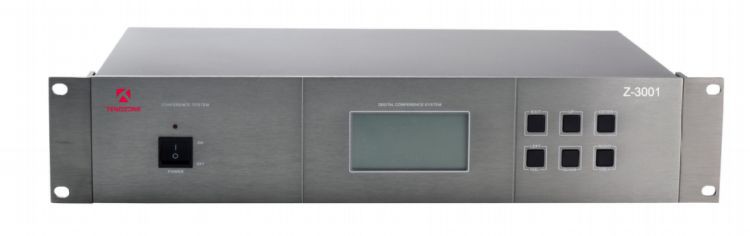

24G Wireless Conference Host-1

Txheej txheem cej luam

Tendzone Z-3001 digital wireless lub rooj sib tham yog cov txheej txheem ua tiav raws li 2.4G tus qauv, sib txuas cov suab zoo thiab yees duab thev naus laus zis nrog lub zog sib tham sib wireless cov ntaub ntawv xa mus ua haujlwm. Raws li cov tub ntxhais DSP suab thev naus laus zis thiab 2.4G wireless kis tau tus mob thev naus laus zis, nws muaj tswv yim siv cov cuab yeej sib txuas lus sib txuas lus ntse los daws cov kev faib tswj cov teeb liab, txhim kho kev ntseeg tau zoo ntawm kev tswj cov teeb liab kis tau tus mob, thiab muab kev ruaj ntseg, txhim khu kev qha, kev lag luam, tswv yim thiab muaj zog wireless lub rooj sib tham system rau ntau yam kev thov ib puag ncig.

Nta

Tus tswv tsev txhawb nqa txuas 128 microphones thiab tuaj yeem nthuav dav raws li xav tau;
Tus tswv tsev txhawb nqa 4 lub microphones ua haujlwm tib lub sijhawm, thiab tus naj npawb ntawm microphones tuaj yeem teeb tsa;
Kev sib kis tau txais cov ntshiab digital 2.4G wireless kis tau tus mob thev naus laus zis, uas tuaj yeem pab txhawb kev ua haujlwm zoo ntawm 25 meters yam tsis muaj kev cuam tshuam;
Cov cuab yeej txhawb nqa peb lub tswv yim thiab ib qho tso zis video matrix. Nws tuaj yeem txuas ncaj qha rau 1-3 koob yees duab kom ua tiav kev yees duab tsis siv neeg;
Cov khoom siv LCD tuaj yeem tso saib cov ntawv ua tiav, ua haujlwm yooj yim thiab meej;
Tus tswv tsev muaj ib qho built-in DSP audio processing module, uas tuaj yeem tiv thaiv kev quaj qw rau qhov tsawg;
Lub kaw lus tshwj xeeb nrhiav kom pom muaj nuj nqi, uas tuaj yeem kuaj xyuas lub microphone chav tsev code thiab tuaj yeem txuas qhov zaus thaum lub tshuab qhib;
2.4G wireless high-frequency kis tau tus mob hom, 32-ntsis chaw nyob code zaus txuam tshuab, muaj zog tiv thaiv kev cuam tshuam;
Txhim kho cov ntaub ntawv tsis pub lwm tus paub los tiv thaiv cov xov tooj cua phem cuam tshuam thiab eavesdropping;
Lub kaw lus microphone chav tsev txais yuav hom wireless, uas yooj yim rau kev sib txuas, yooj yim rau kev tsim kho nyuaj, txo qhov project nqi thiab muaj kev ruaj ntseg zoo;
Yooj yim rau kev khiav lag luam: ib tus neeg, ib lub tshuab, cov neeg sawv cev tuaj yeem hais lus los ntawm kev nias lub pob yooj yim;
Nruab nrog RS -232 serial chaw nres nkoj rau kev txuas mus rau lub hauv paus tswj system kom ua tiav kev tswj hwm hauv nruab nrab;
ruaj khov thiab txhim khu kev qha chassis tsim: tus qauv 2U tus tswv chassis, txias-kuav los tiag steel phaj, txheej txheem tshuaj pleev xim, thiab lub vaj huam sib luag tag nrho xav txog kev zoo nkauj;
Sab hauv ntawm rooj plaub thiab qhov qhib tau tsim tau zoo, thiab lub tshuab muaj cua sov zoo

QabVaj huam sib luag

24G Wireless Conference Host-2

Cim npe nrov: Tuam Tshoj 2.4g wireless lub rooj sib tham host manufacturers, lwm tus neeg, Hoobkas

SPECIFICATIONS

Kev ua tau zoo
Zaus teb	20-20kHz
Teeb liab-rau-Noise Ratio	>80 dB (A)
Dynamic Range	>90dB ua
Tag nrho Harmonic Distortion	Tsawg dua lossis sib npaug rau 0.01%
Siv zaus band	2400-2479 MHz, ISM band, 79 channels muaj rau siv dawb
Modulation	DSSS (Direct Sequence Spread Spectrum) + GFSK
RF tso zis zog	1mW (0dBm, 7- theem adjustable)
Tau txais rhiab heev	-96dBm
Zaub	128 x 64 LCD zaub
Ambient kub thiab cov av noo xav tau	-20-60 degree /0-95% (tsis muaj condensation)
fais fab mov	115/230VAC (± 5%) - 50/60Hz
Kev siv fais fab	Txheem:<50 W
Qhov ntev (ntev x qhov siab x qhov tob)	482 x 88 x 270 mm
hnyav	4 KG
