Txheej txheem cej luam

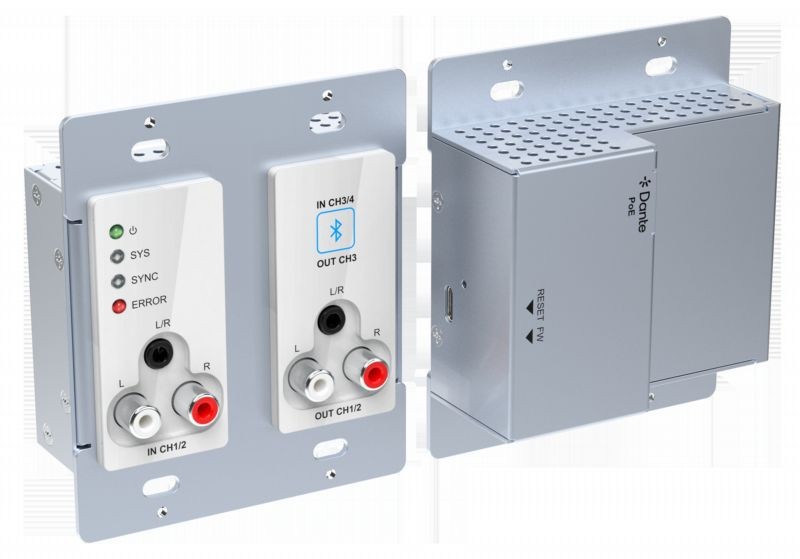

Tendzone EAGLES DA22 yog tus kws tshaj lij 4x3 Dante phab ntsa vaj huam sib luag nrog Bluetooth. Nws suav nrog stereo Bluetooth wireless audio input, 3.5mm jack thiab RCA jack rau kab nkag thiab txhawb nqa kev hloov pauv suab tsis sib xws ntawm cov qauv Ethernet network nrog zero latency. Chav tsev kuj suav nrog 3.5mm jack thiab RCA jack rau kab tawm.Cov phab ntsa vaj huam sib luag yog siv los ntawm PoE thiab txhawb nqa Web-UI thiab Dante software tswj..
Nta
- Dante 4x3 phab ntsa vaj huam sib luag nrog Bluetooth;
- Ib qho tseem ceeb ua ke nrog rov qab teeb pom kev;
- Txhawb Bluetooth 5.3, tsis txaus siab nrog V5.0/4.0/2.1+EDR;
- Kev sib kis tsis muaj kev cuam tshuam txog li 20m;
- Tau tshaj smartphones feem ntau, Kua iPads, thiab Android ntsiav tshuaj;
- Tswj tau los ntawm Web-UI, Dante Controller lossis Dante Tus Thawj Coj software;
- Txhawb API rau kev tswj chaw rau kev tswj hwm kev siv;
- Powered los ntawm kev hloov network ntawm PoE (IEEE 802.3af).
Cim npe nrov: 4x3 dante aes67 phab ntsa vaj huam sib luag nrog bluetooth, Tuam Tshoj 4x3 dante aes67 phab ntsa vaj huam sib luag nrog bluetooth manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Tswv yim |
|
|
Tswv yim |
(1) L + R unbalanced analog suab, (1) 3.5mini tsis sib npaug analog suab |
|
Input Connector |
(2) RCA jack, (1) 3.5mm mini jack |
|
Tso zis |
|
|
Tso zis |
(1) L + R unbalanced analog suab, (1) 3.5mini tsis sib npaug analog suab |
|
Output Connector |
(2) RCA jack, (1) 3.5mm mini jack |
|
SuabPkev ua haujlwm |
|
|
Tau txais |
0 dB |
|
Ntim |
Cov tswv yim: -12 ~ +18dB, 6dB ib kauj ruam Cov zis: {{0}} ~ 0dB, 1dB ib kauj ruam |
|
Qib siab tshaj |
Cov tswv yim: {{0}}dBu @ 0dB input nce Cov zis: {{0}}dBu @ 0dB tso zis nce |
|
S/N ratio |
>90dB @ Max Qib (A-hnyav) |
|
Tawm suab nrov |
< -79dBu @ 0dB gain (A-weighted) |
|
THD |
< 0.05% at 0dBu,1kHz, 0dB gain (A-weighted) |
|
Tus nqi piv txwv |
44.1kHz lossis 48kHz |
|
Tswj |
|
|
Tswj txoj kev |
(1) Web-UI thiab Dante tswj (1) Pair khawm |
|
Tswj Connector |
(1) RJ45 (1) Bluetooth khawm |
|
General |
|
|
Sab nraud fais fab mov |
PoE (IEEE 802.3af) |
|
Kev ua haujlwm kub |
- 5 degree ~ + 55 degree (23吓 ~ 131吓) |
|
Cia Kub |
- 25 degree ~ + 70 degree (-13吓 ~ 158吓) |
|
Kwv tij txo hwj chim |
90% RH lossis tsawg dua (Tsis muaj condensation) |
|
Kev siv fais fab |
4.22W (Max) |
|
Qhov Loj (W * H * D) |
1 04.5 x 89.0 x 43.7 mm |
|
Net nyhav |
265g |
