Txheej txheem cej luam

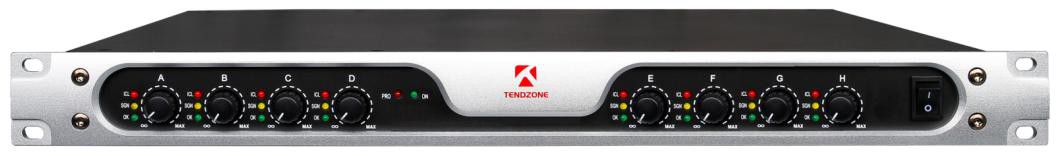

Tendzone AMD8150 amplifier yog ib qho 8-channel tsau impedance digital amplifier, siv cov cuab yeej Class D siab heev, tsim los rau cov neeg siv uas nrhiav lub suab zoo thiab yooj yim.
Qhov no amplifier boasts ib tug ultra-slim 1U tsim, ua rau nws lub teeb yuag thiab exceptionally portable, zoo tagnrho rau ntau yam kev ua yeeb yam thiab suab tshuab. Nws los nruab nrog cov yam ntxwv ntawm kev nyab xeeb, suav nrog kev txwv tsis siv neeg tso tawm, kev tiv thaiv luv luv, tiv thaiv kev tiv thaiv overload, tiv thaiv overheating, thiab lub hwj chim-on ncua, tag nrho cov uas ua kom muaj kev nyab xeeb thiab ua haujlwm ntev ntawm koj cov cuab yeej hauv txhua qhov chaw. Tsis tas li ntawd, kev ncua kev pib ua haujlwm tau koom ua ke los tiv thaiv cov neeg hais lus los ntawm kev cuam tshuam sai, tiv thaiv kev puas tsuaj.
Lub vaj huam sib luag nram qab muaj ntau yam kev xaiv tso zis, suav nrog dual-channel, ib-channel kom haum rau ntau yam kev thov. Nws kuj suav nrog cov kev sib txuas lus sib txuas thiab SPEAKON cov zis, ua kom muaj kev sib txuas ruaj khov thiab txhim khu kev qha.
Nta
- Compact thiab Lightweight Design: Lub amplifier nta 1U daim ntawv zoo, ua rau nws yooj yim rau thauj thiab nruab.
- High Efficiency: Siv Class D thev naus laus zis, nws ua tiav kev hloov dua siab tshiab tshaj 90%.
- Kev Tiv Thaiv Cov Nta: Nws suav nrog kev txwv tsis siv neeg tso zis, kev tiv thaiv luv luv, tiv thaiv kev tiv thaiv overload, tiv thaiv kub dhau, thiab lub hwj chim qeeb.
- Kev Tiv Thaiv Tus Neeg Hais Lus: Lub amplifier yog tsim los nrog lub sijhawm pib qeeb los tiv thaiv cov neeg hais lus los ntawm kev puas tsuaj los ntawm kev siv hluav taws xob tam sim ntawd.
- Ntau Yam Kev Xaiv Tso Tawm: Lub vaj huam sib luag tom qab muaj kev xaiv rau ob-channel, ib leeg-channel, thiab kev sib txuas cov khoom tsim tawm kom haum rau ntau yam kev siv.
- Txhim khu kev sib txuas: Nws tau nruab nrog cov kev sib txuas lus sib luag thiab SPEAKON tso zis rau kev sib txuas ruaj ntseg thiab ntseeg tau.
- Kev ua kom txias txias: Lub tshuab hluav taws xob hloov hluav taws xob muaj xws li lub tshuab cua txias rau kev ua haujlwm zoo.
- Advanced Cooling Mechanism: Cov kiv cua txias ua haujlwm nrog cov txheej txheem hloov pauv nrawm nrawm kom tswj tau cov cua sov kom zoo.
Back ibPanel
Cim npe nrov: 8ch digital power amplifier, Tuam Tshoj 8ch digital power amplifier manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Kev ua tau zoo |
|
|
Tus naj npawb ntawm cov channel |
8 |
|
Stereo hom @8Ω, txhua channel |
150W |
|
Lub tso suab hom @4Ω, txhua channel |
250W |
|
Zaus teb |
500W |
|
Teeb liab-rau-Noise Ratio/S/N |
20 Hz -20 kHz (± 3 dB) |
|
Tag nrho Harmonic Distortion |
Ntau dua lossis sib npaug li 80dB |
|
Input rhiab heev |
Tsawg dua lossis sib npaug rau 0.05% (8Ω, 150W) |
|
Input Impedance |
+4dB * (1.23V) |
|
Dimensions (W x H x D) |
10kΩ (electronically sib npaug) |
|
net luj |
483 × 45 × 355 hli |
|
Cov tswv yim (CH1-2) |
5.5kg ib |
|
Cov zis (CH1-2) |
XLR Input Connectors |
