Txheej txheem cej luam

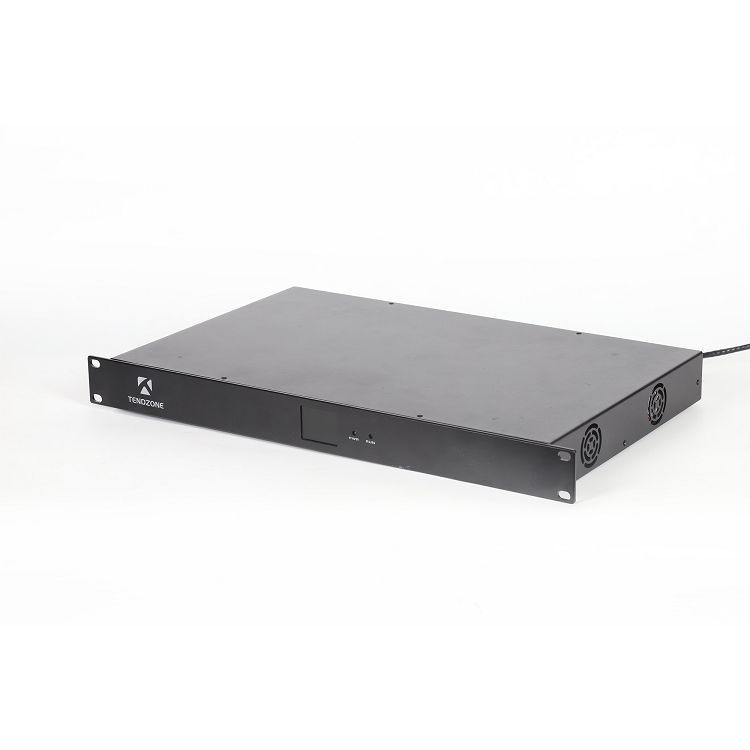

Tendzone AMH-800N tag nrho-digital network lub rooj sib tham system tus tswv yog qhov tsis muaj kev poob thiab tsis muaj kev sib koom tes-raws li tes-hauv-tes cov rooj sib tham digital nrog ntau yam DSP core algorithms. Cov tswv tsev thiab cov chav nyob, thiab cov chav nyob thiab cov chav nyob ncaj qha txuas nrog lub network cables, txhawb nqa cov nplhaib txuas. Tus tswv tsev ntawm lub rooj sib tham no tuaj yeem txuas mus txog 60 microphone units, txhawb nqa lub koob yees duab taug qab, kaw lub rooj sib tham thiab lwm yam haujlwm. Nws yog qhov tsim nyog rau siv hauv chav sib tham.

Nta

Ua raws li IEC 60914 tus qauv thoob ntiaj teb
Suab sampling tus nqi 48KHz
Ua-nyob rau hauv high-kev ua tau zoo suab DSP ua nti, muab vaj huam sib luag, high-pass lim, tawm tswv yim suppression, tsis siv neeg nce, suab nrov txo, suab sib tov matrix, ncua thiab lwm yam dej num. Lub suab matrix tuaj yeem paub txog kev sib xyaw ntawm cov tswv yim rau cov zis.
Lub rooj sib tham tus tswv tsev thiab cov chav siv cov kev xa xov hluav taws xob tiag tiag, nrog rau kev ywj pheej ntawm cov tswv cuab kev txawj ntse thiab cov thawj coj puv-network lossless non-compressed digital audio transmission technology
Ib tus tswv tsev muaj 4-channel unit microphone kev sib txuas interface, 2 channel tuaj yeem ua suab nrov, ib qho channel tuaj yeem nqa tau 15 units, ib chav tsev tuaj yeem nqa txog 60 units, thiab lub microphone tuaj yeem kub- swapped
Configure thiab tswj lub rooj sib tham ua haujlwm tsis ua haujlwm los ntawm lub vev xaib browser
Nrog lub rooj sib tham chav tswj kev ua haujlwm, kev txhawb nqa chaw taws teeb qhib lossis kaw cov chav nyob hauv qhov system tuaj yeem hloov kho, nrog qhov siab tshaj plaws ntawm 10 microphones

Cim npe nrov: Tuam Tshoj network sib tham system host manufacturers, lwm tus neeg, Hoobkas

SPECIFICATIONS

Hardware Spetso cai
Qauv	AMH-800N
MIC/LINE INPUT	2 sib npaug 3.81mm Phoenix davhlau ya nyob twg interfaces
Kev Sib Tham Network	4 x etherCon RJ45 connectors
MIX LINE OUTPUT	4 x sib npaug 3.81mm Phoenix davhlau ya nyob twg interfaces
Network	1 x RJ45 Ethernet chaw nres nkoj
USB Recording Playback	1 x USB Hom-A , 1 x USB Hom-B txuas rau lub computer ua suab paj nruag 2 x 2
Tswb	1 x 3.81mm Phoenix davhlau ya nyob twg
DEBUG	1 x 3.81mm Phoenix davhlau ya nyob twg, debug chaw nres nkoj
TSI RS232	1 x 3.81mm Phoenix davhlau ya nyob twg, bidirectional tswj
SIB 485	1 x 3.81mm Phoenix davhlau ya nyob twg, lub koob yees duab tswj
Xim npo	1 x 1.8- nti siab-txhais LCD npo
fais fab mov	1 x IEC C14 peb-pin fais fab qhov (socket) nrog hloov AC 100-240V ~ 50/60Hz
Kev ua tau zoo
Tus nqi piv txwv	48 kHz
Quantization ntsis tus lej	32bit ib
Zaus teb	20Hz ~ 20KHz (+/-0.5dB)
Dynamic Range	>100 dB
Teeb liab-rau-Noise Ratio	>100 dBA
Kev cais tawm Channel	>90dB ua
Input Impedance	10kΩ
Cov zis impedance	100 Ω
Tag nrho Harmonic Distortion	< 0.5% ( 20-20,000 Hz )
Qib siab tshaj tawm	+4dBu
Cov zis siab tshaj plaws	+4 dBu
Lwm tus
Ua haujlwm kub	0 degree ~ 40 degree
Cia qhov kub thiab txias (kev thauj mus los nrog cov ntim sab nraud, qhov chaw cia khoom)	-20 degree - 60 degree
Ua haujlwm av noo	20 ~ 95%, tsis-condensing
Tsis ua hauj lwm ib puag ncig humidity	5 %- 95 % RH
Ua haujlwm voltage	AC 100-240V - 50/60Hz
