Txheej txheem cej luam

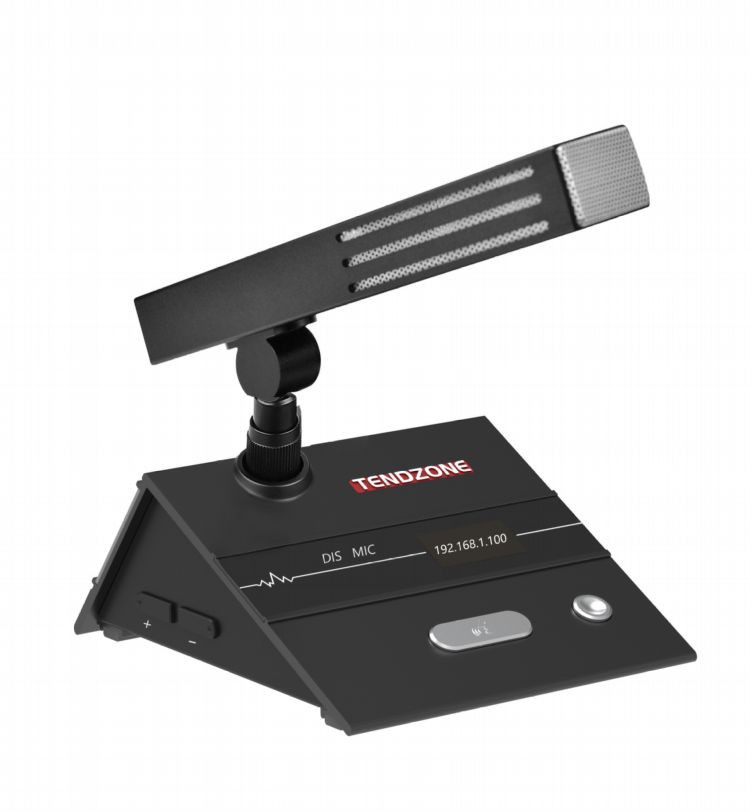

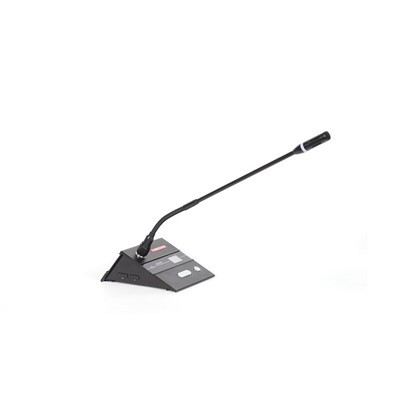

Tendzone AMH-N72C & AMH-N72D tag nrho-digital network lub rooj sib tham kaw lus microphone yog cov chav sib tham sib tham dawb huv. Cov tswv tsev thiab cov chav nyob, thiab cov chav nyob thiab cov chav nyob ncaj qha txuas nrog lub network cables, txhawb nqa cov nplhaib txuas. Chav tsev hais lus muab tus thawj tswj hwm thiab tus neeg sawv cev. Chav tsev delegate tuaj yeem tsim ua VIP. Lub rooj sib tham chav tsev muaj tus thawj tswj hwm khawm thiab txhawb ntau lub rooj sib tham hom kev xaiv kom hloov mus rau qhov sib txawv ntawm lub rooj sib tham.Cov kev hais lus hloov khawm thiab lub microphone qia yog ob qho tib si nruab nrog xiav LED cov xwm txheej tawm tswv yim qhia, muab 3.5mm lub tso suab tso suab tso suab interface, thiab cov ntim nws tus kheej adjustable.
Nta
- Suab sampling tus nqi 48KHz
- Condenser supercardioid directional microphone rau cov khoom siv suab zoo;
- Lub microphone txais 48KHz tus qauv siab, thiab lub suab thiab lub suab yog qhov dav thiab siab ncaj ncees;
- Muab cov suab nrov txo kev ua haujlwm, lub suab tuaj yeem ncav cuag 80cm;
- Tub rog-qib high-brightness ultra-clear OLED zaub vaj huam sib luag;
- Pawg thawj tswj hwm muaj qhov kev pom zoo / qhov tseem ceeb xaiv qhov tseem ceeb (customizable los ntawm lub system host), thiab tus yuam sij tseem ceeb yog siv los tswj kev hais lus;
- Txhawb "ntiv nplhaib" tes-hauv-tes redundant kev twb kev txuas;
- Txhawb kev ua haujlwm kub-swap ntawm cov chav nyob yam tsis muaj kev cuam tshuam rau kev siv ib txwm siv ntawm lwm chav nyob, thiab tus tswv tsev tuaj yeem txheeb xyuas cov chav txuas tshiab sai sai;
- Lub tsev txhawb nqa software chaw taws teeb qhib lossis kaw haujlwm;
- Chav tsev muaj lub tso suab lub mloog pob ntseg thiab txhawb nqa lub mloog pob ntseg sab nraud;
- Chav tsev yog nruab nrog 1 tus qauv RJ45 universal interface, txhawb nqa tus qauv Cat5e thiab siab dua specification cables, thiab chav tsev siv "T" hom kev sib txuas kab txoj kev;
- Tiv thaiv lub xov tooj ntawm tes thiab RF cuam tshuam;
- Txoj kev teeb tsa: desktop;
- Microphone qia ntev: 18.5 CM;
- Chav tsev xim: Moonlight Silver, Elegant Dub;
- Microphone ncej nrog ntuj xiav qhia halo;
- Lub square tsim tuaj yeem hloov kho 180 degree sab laug thiab sab xis thiab nce thiab nqis.
Cim npe nrov: Tuam Tshoj desktop lub rooj zaum rooj zaum rooj zaum, Tuam Tshoj desktop lub rooj zaum rooj zaum rooj manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Hardware Specification |
|
|
Qauv |
AMH-N72C / AMH-N72D Cov |
|
Conference Bus |
1 RJ45 universal standard interface, lub rooj sib tham tus tswv tsev thiab chav tsev txuas nrog tes hauv tes lossis hauv lub nplhaib, thiab yuav tsum muaj peb txoj kev txuas |
|
Microphone connector |
Txais kev lag luam-qib 4-core pluggable self-locking aviation plug, kev sib txuas yog qhov tseeb dua thiab ruaj khov |
|
Qhov taw qhia LED |
Ob lub microphone qia thiab lub microphone hloov khawm muaj LED cov lus qhia tawm tswv yim |
|
pob ntseg |
1 3.5mm mini peb-core, nrog lub mloog pob ntseg mloog, lub mloog pob ntseg tuaj yeem hloov kho, |
|
khawm ua ntej |
Lub rooj zaum lub rooj zaum muaj lub khawm qhov tseem ceeb ntawm tus thawj tswj hwm nrog lub luag haujlwm tseem ceeb. |
|
Kev ua tau zoo DSP |
Chav tsev nws tus kheej muaj DSP built-in nrog kev ua haujlwm xws li nce, lub rooj vag suab nrov, lim dej siab, DEQ , thiab 10- band parametric sib npaug. |
|
Kev ua tau zoo |
|
|
Hom Microphone |
Rectangular columnar microphone, aluminium alloy columnar khoom |
|
Nqa taub hau |
Supercardioid unidirectional condenser microphone |
|
rhiab heev |
-38dBV/Pa |
|
Zaus teb |
50-20KHz |
|
Input Impedance |
2KΩ |
|
Sib npaug suab nrov |
20dBA SPL |
|
Maximum input suab siab theem |
139dB ib |
|
Lwm tus |
|
|
Ua haujlwm kub |
0 degree ~ 45 degree |
|
Cia qhov kub thiab txias (kev thauj mus los nrog cov ntim sab nraud, qhov chaw cia khoom) |
-20 degree - 60 degree |
|
Ua haujlwm av noo |
10% - 90 % RH |
|
Tsis ua hauj lwm ib puag ncig humidity |
5 %- 95 % RH |
|
Ua haujlwm kub |
0 degree ~ 45 degree |
