Txheej txheem cej luam

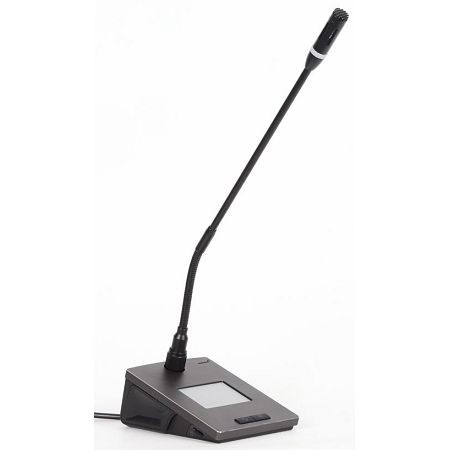

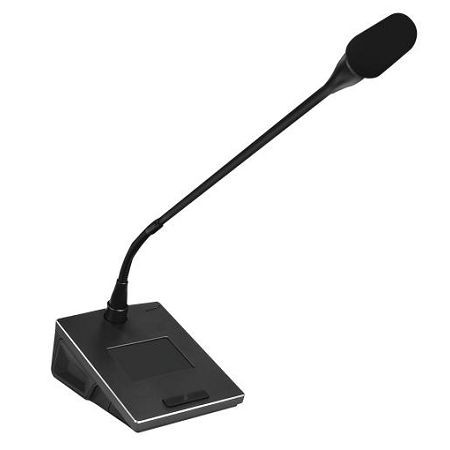

Tendzone MTZ-910C&MTZ-910D tag nrho-digital network lub rooj sib tham kaw lus microphone yog cov chav sib tham sib tham dawb huv. Cov tswv tsev thiab cov chav nyob, thiab cov chav nyob thiab cov chav nyob ncaj qha txuas nrog lub network cables, txhawb nqa cov nplhaib txuas. Chav tsev hais lus muab tus thawj tswj hwm thiab tus neeg sawv cev. Chav tsev delegate tuaj yeem tsim ua VIP. Lub rooj sib tham chav tsev muaj tus thawj tswj hwm khawm thiab txhawb ntau lub rooj sib tham hom kev xaiv kom hloov mus rau qhov sib txawv ntawm lub rooj sib tham.Cov kev hais lus hloov khawm thiab lub microphone qia yog ob qho tib si nruab nrog xiav LED cov xwm txheej tawm tswv yim qhia, muab 3.5mm lub tso suab tso suab tso suab interface, thiab cov ntim nws tus kheej adjustable.
Nta
- Suab sampling tus nqi 48KHz;
- Txais 9.7 hli kub-plated capacitor pickup lub taub hau, ua-nyob rau hauv siab dynamic tsis tshua muaj distortion analog amplifier Circuit Court, kom ua tiav cov khoom zoo, khaws nrug txog 50cm;
- Lub microphone txais yuav 48KHz / 32 ntsis tus qauv siab, thiab cov lus teb lub suab yog qhov dav thiab siab ncaj ncees;
- Ua-nyob rau hauv kev ua tau zoo DSP, chav hais lus tuaj yeem hloov kho nws tus kheej raws li tus neeg siv lub suab yam ntxwv;
- Nrog tib neeg lub suab waveform dynamic ua technology, siab, nruab nrab thiab tsawg zaus yog sib npaug tsis hais qhov kev ncua deb;
- Nws muaj 2. hauv, kev pabcuam kev sib tham, thiab kev pov npav ntau.
- Lub tsev tseem ceeb hloov pauv muaj qhov taw qhia qhia txog xwm txheej LED;
- Ergonomically tsim kho cov yuam sij txhim khu kev nkag siab ntawm kev koom tes hauv cov rooj sib tham;
- Txhawb "loop" redundant kev twb kev txuas thiab unit kub-swap ua hauj lwm yam tsis muaj kev cuam tshuam rau ib txwm siv ntawm lwm units, thiab tus tswv tsev tuaj yeem txheeb xyuas qhov tshiab txuas tshiab;
- Lub rooj zaum lub rooj zaum muaj lub rooj zaum tseem ceeb khawm nrog lub luag haujlwm uas tau hais tseg;
- Chav tsev muaj lub tso suab lub mloog pob ntseg thiab txhawb nqa lub mloog pob ntseg sab nraud;
- Chav tsev siv tus qauv RJ45 universal interface, txhawb nqa tus qauv Cat5e lossis siab dua specification cables, thiab siv "T" hom kev sib txuas kab txoj kev;
- Lub tsev txhawb WEB chaw taws teeb qhib lossis kaw ua haujlwm;
- Nws muaj TF daim npav interface thiab txhawb cov ntsiab lus tom qab hloov kho;
- Gooseneck microphone boom nrog hloov microphone qhia halo;
- Tiv thaiv lub xov tooj ntawm tes thiab RF cuam tshuam;
- Txoj kev teeb tsa: desktop;
- Microphone qia ntev: 42 CM
Cim npe nrov: Tuam Tshoj desktop tus thawj coj gooseneck chav tsev, Tuam Tshoj desktop tus thawj tswj hwm gooseneck tsev manufacturers, lwm tus neeg, Hoobkas
SPECIFICATIONS
|
Hardware Spetso cai |
|
|
Qauv |
MTZ-910C / MTZ-910D |
|
Conference Bus |
1 RJ45 universal standard interface, lub rooj sib tham tus tswv tsev thiab chav tsev txuas nrog tes hauv tes lossis hauv lub nplhaib, thiab yuav tsum muaj peb txoj kev txuas 1 XLR chaw nres nkoj, rau kev sib txuas suab processors thiab lwm yam khoom siv |
|
Microphone connector |
Txais kev lag luam-qib pluggable self-locking aviation plug, kev sib txuas yog qhov tseeb dua thiab ruaj khov |
|
Qhov taw qhia LED |
Ob lub microphone qia thiab lub microphone hloov khawm muaj LED cov lus qhia tawm tswv yim |
|
pob ntseg |
1 3.5mm mini peb-core, nrog lub mloog pob ntseg mloog, lub mloog pob ntseg tuaj yeem hloov kho, |
|
khawm ua ntej |
Lub rooj zaum lub rooj zaum muaj lub khawm qhov tseem ceeb ntawm tus thawj tswj hwm nrog lub luag haujlwm tseem ceeb. |
|
TF interface |
Siv los hloov kho cov duab tom qab |
|
Hom-C interface |
Rau kev debugging thiab kho dua tshiab |
|
Kev ua tau zoo DSP |
Chav tsev nws tus kheej muaj DSP built-in nrog kev ua haujlwm xws li nce, lub rooj vag suab nrov, lim dej siab, DEQ , thiab 10- band parametric sib npaug. |
|
Kev ua tau zoo |
|
|
Hom Microphone |
Gooseneck Microphone |
|
Nqa taub hau |
9.7 hli condenser cardioid |
|
rhiab heev |
-47 dB/1kHz ntawm 1Pa |
|
Zaus teb |
100-15K Hz |
|
Cov zis impedance |
680 Ω |
|
Teeb liab-rau-Noise Ratio |
>52dB / 1kHz ntawm 1Pa |
|
Maximum input suab siab theem |
105dB SPL / 1kHz ntawm 1% THD |
|
Lwm tus |
|
|
Ua haujlwm kub |
0 degree ~ 45 degree |
|
Cia qhov kub thiab txias (kev thauj mus los nrog cov ntim sab nraud, qhov chaw cia khoom) |
-20 degree - 60 degree |
|
Ua haujlwm av noo |
10% - 90 % RH |
|
Tsis ua hauj lwm ib puag ncig humidity |
5 %- 95 % RH |
|
Ua haujlwm kub |
0 degree ~ 45 degree |
