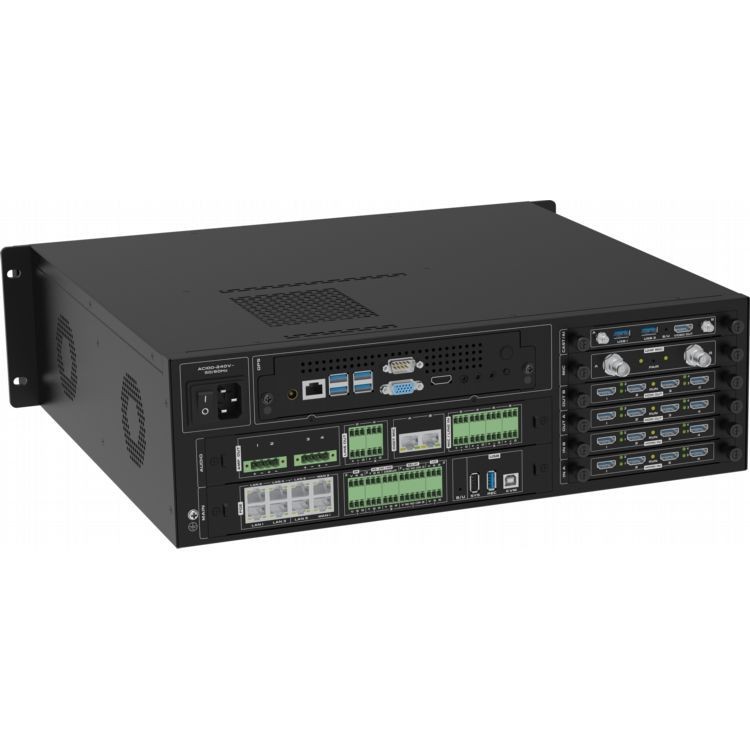

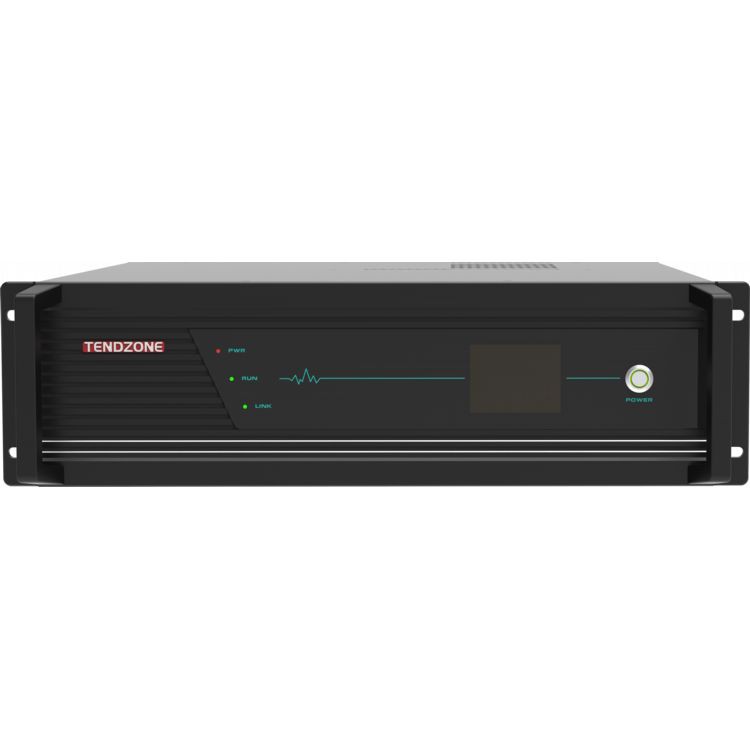

Kaum peb-hauv-ib Integrated Processor

qhov project

Specifications

Muaj kev nyab xeeb thiab ruaj khov

Txais kev lag luam-qib system architecture, tsim raws li kev kos duab, tsis muaj kab mob nkag mus

Data Interface

2 USB Hom-A, 1 USB Hom-B

Lub koob yees duab Network

16 lub koob yees duab hauv zos network, 8 network suab thiab video xa mus

Video Codec

Mus txog 4 raws ntawm 1080P60 encoding, mus txog 4 raws ntawm 1080P @ 60 kev txiav txim siab, lossis 8 raws ntawm 1080P @ 30 encoding thiab 8 raws ntawm 1080P @ 30 kev txiav txim siab;

Suab thiab video raws tu qauv

Suab txhawb G.711, G.722, G722.1, G722.1C, AAC, txhawb kev txiav suab code ntws; txhawb kev encoding ntawm 8-channel ywj siab suab code ntws, txhawb kev ywj pheej suab kaw thiab cia;

Video txhawb H.264HP, MP, BP, H265MP;

Display terminal

Built-in video splitting muaj nuj nqi, uas tuaj yeem paub ib qho screen / duab-hauv-daim duab / duab-tawm-daim duab synthesis xws li ib qho screen split, ob-screen split, peb-screen split, plaub-screen split, tsib- npo split, rau-screen split, xya-screen split, yim-screen split, cuaj-screen split, kaum-screen split, kaum peb-screen split thiab kaum rau-screen split; mus txog plaub pawg ntawm kev ywj pheej multi-screen synthesis zaub, txhawb 2K / 4K npo tso zis;

Tswj vaj huam sib luag

Txhawb ntau yam kev tswj vaj huam sib luag, xaiv tau 10.1-inch wired Android kov npo (tus qauv tsis muaj phab ntsa mount, tsis muaj POE kev txhawb nqa), 10.1-inch network PoE desktop touch screen, 10.{{5 }}inch network PoE embedded phab ntsa kov npo (tus qauv embedded phab ntsa hauv qab lub thawv), 4-inch network PoE version 86 lub thawv kov npo

Tus nqi codec

Ntau tshaj 16 channels ntawm 1080P codec, 512Kbps ~ 16Mbps ib channel

Suab Input

8-txoj kev Phoenix davhlau ya nyob twg input (txhawb 48V phantom zog MIC input los yog kab nyob rau hauv linear input), 8 - txoj kev HDMI embedded suab input, 16- txoj kev RTSP suab, 2- txoj kev DSP suab , 1-txoj kev OPS suab input, 1- txoj kev wireless screen projection suab input, 1- txoj kev wireless hais lus module suab input, tes-hauv-tes digital audio hais lus system digital microphone nkag tau (DIGIT MIC network chaw nres nkoj, txhawb nqa 2 tes-hauv-tes digital microphone txuas nkag)

Suab tso zis

4-txoj kev tawm suab tso zis, 4- txoj kev 200W@8 ohm digital amplifier tso zis , 8 - txoj kev HDMI embedded suab tso zis, 10- txoj kev DSP, 1- txoj kev OPS tso zis; txhawb ntim hloov, suab txhawb synchronization thiab sib tov

Video tswv yim

8- channel 4K HDMI input interface, 16-channel IP network lub koob yees duab tswv yim, 1-channel sab hauv OPS cov tswv yim, 1-channel internal wireless screen projection input

Video tso zis

8- channel 4K HDMI tso zis interface, 8-channel RTMP streaming, 1-channel nrog OPS tso zis, txhawb HDMI tso zis suab ua raws li kev hloov

Kev ua suab

Txhawb tsis siv neeg ncha tshem tawm (AEC), tsis siv neeg nce tswj (AGC), tsis siv neeg lub suab tshem tawm / tshem tawm (ANC / ANS), tsis siv neeg tawm tswv yim tshem tawm (AFC), sib xyaw matrix (AM), pob ntawv poob nyiaj (PLC)

Kev ua yeeb yaj kiab

Txhawb video daws teeb meem adaptation, hloov, faib, npo splitting, subtitle overlay, thiab duab parameter hloov

Kev sib txuas lus raws tu qauv

SIP, BFCP dual kwj, H.323, H.239, E.164, H.245, NAT, H.225, Q.931, RTSP, RTMP, TCP/IP, HTTP, FTP, TCP, UDP, NTP, RTP, RTCP, Telnet, TLS;

Network Interface

2 WAN chaw nres nkoj, 6 LAN chaw nres nkoj; los yog teeb tsa 8 qhov chaw nres nkoj hauv network kom muaj kev sib txuas tag nrho; 4 ntawm lub network ports txhawb PoE fais fab mov;

Kev sib xyaw ua haujlwm

Txhawb lub suab hauv zos, HDMI embedded suab, thiab tej thaj chaw deb suab RTSP network nkag mus rau hauv lub tov khoom, thiab muaj peev xwm dynamically xaiv sib tov; kuj txhawb built-in OPS suab input, built-in wireless screen projection suab input, thiab built-in wireless hais lus module suab nkag mus rau hauv lub tov khoom;

Central Control

One-kov central tswj: hloov qhov system, kho qhov tso zis ntim, hloov lub teeb liab qhov chaw, lub koob yees duab tswj, kaw suab thiab tshaj tawm, tswj chaw taws teeb, tswj ib puag ncig, thiab lwm yam.

Environmental tswj interface

3- txoj kev RS -232/485 interface, 1 * RS232 / RS485 DEBUG , 2- txoj kev RELAY (nrog 12V sab nraud fais fab mov ), 2- txoj kev I / O, {{ 9}} txoj kev infrared IR

Video conference

Txhawb H.323 point-to-point video sablaj hu thiab pab kwj xa;

Txhawb SIP point-to-point video sib tham hu thiab pab kwj xa;

Ib lub tshuab txhawb nqa siab tshaj plaws ntawm 6- tog cov rooj sib tham (ntawm SIP raws tu qauv), txhawb kev tsim ntau lub rooj sib tham templates, txhawb cov rooj sib tham tau teem tseg, thiab tau txais cov rooj sib tham raws li lub sijhawm teem tseg; koj tuaj yeem caw cov davhlau ya nyob twg tshiab tuaj koom lub rooj sib tham thaum lub rooj sib tham, lossis ncaws lub davhlau ya nyob twg tawm ntawm lub rooj sib tham; koj tuaj yeem mute / unmute txhua qhov chaw, lossis mute / unmute txhua qhov chaw nrog ib nias;

Thaum siv H.323 raws tu qauv, kev tso npe GK tau txais kev txhawb nqa thiab kev hu tuaj yeem ua los ntawm tus lej luv;

Thaum siv SIP raws tu qauv, SIP sau npe tau txais kev txhawb nqa thiab hu tuaj yeem ua los ntawm tus lej luv;

Thaum lub rooj sib tham video, nws txhawb encrypted kis ntawm lub suab thiab video, point-to-point hu encryption, thiab multi-tog video tham hu encryption los tiv thaiv lub suab thiab video los ntawm eavesdropped thaum lub sij hawm tag nrho lub rooj sab laj;

Live streaming muaj nuj nqi

Txhawb nqa mus txog rau 10-channel multicast, tshaj tawm hauv xov xwm thiab raws li qhov xav tau

Kev kaw haujlwm

Txhawb nqa siv los ua cov kaw lus thiab tshaj tawm cov khoom xa tawm thiab cov neeg siv khoom, txhawb kev kaw 6 raws ntawm cov suab thiab video tib lub sijhawm; txhawb synthesizing 1 4K multi-screen kaw (piv txwv li 1 channel ntawm 4K synthesized virtual screen, synthesized los ntawm ntau txoj kev ntawm 1920 * 1080 cov ntxaij vab tshaus; tsis txhawb 4K HDMI los yog IPC input qhov chaw kaw); cov ntaub ntawv kaw tseg thiab tshaj tawm cov ntaub ntawv yog MP4, txhawb kev teeb tsa tsis siv neeg / phau ntawv luam ntawm USB disk, yuam kev hloov kho ntawm USB disk system thiab kho dua tshiab ntawm qhov pib teeb tsa, txhawb USB CD hlawv, txhawb kev sau cov ntaub ntawv tswj hwm (download/export/edit/delete)

Sab hauv hard disk

Standard 2TB 3.

Txhawb nqa dual hard disk slots thiab txhawb kev txhim kho sab hauv ntawm ob qhov kev soj ntsuam-qib hard disks;

Txhawb sab nraud hard disk expansion ntawm USB;

Kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig

Txhawb kev pw tsaug zog network thiab sawv-up, ib qho kev kov system hloov

Kev tu vaj tse

Txhawb Web interface tswj, muab kev teeb tsa ceev ntawm cov chaw nres nkoj, txhawb Web chaw nres nkoj password hloov kho, hloov chaw IP, lub Hoobkas pib dua, hloov kho software, ntsuas lub teeb, kev kawm infrared, kev tswj cav, serial chaw nres nkoj debugging, Telnet chaw taws teeb debugging, chaw taws teeb tswj thiab kev tswj xyuas

Built-in OPS lub computer

Fusion OPS computer, 16G nco, 512G hard disk

Built-in wireless screen projection muaj nuj nqi

Txhawb ib-nias screen projection nrog wireless screen projection transmitter, txhawb kev tshuaj ntsuam projection nrog portable davhlau ya nyob twg PC / mobile xov tooj / PAD neeg siv, txhawb lwm tus kav hlau txais xov mus cuag lub teeb liab

Built-in wireless hais lus module

Txhawb kev hais lus nrog ob lub microphone tib lub sijhawm, txhawb nqa wireless microphone / dab tshos clip / headset transmitter; txhawb nqa tus kav hlau txais xov sab nraud kom ntev lub teeb liab txais tos

Kev teeb tsa

3 U telecommunications standard txee installation

Tus ntaus ntawv loj

Qhov loj me: dav * qhov tob * qhov siab 437mm * 442mm * 132.5mm (nrog rau kov)

Qhov loj me: dav * qhov tob * qhov siab 437mm * 410mm * 132.5mm (tsis suav nrog kov)

Input voltage thiab tam sim no

AC100 ~ 240V / 50 ~ 60Hz

Cov cuab yeej siv hluav taws xob

Hom kev siv hluav taws xob50 W; tag nrho load zog noj750W

Khoom hnyav

Net nyhav ntawm tag nrho lub tshuab yog 14.6 KG, tag nrho qhov hnyav yog 16 KG

Ua haujlwm kub

0 ~ 45 degree Ua haujlwm

Humidity Qhov siab

10% mus rau 90%, qhov siab tsawg dua lossis sib npaug li 5000 meters

Tus tswv chassis (lub rooj tsavxwm tseem ceeb thiab lub rooj tsavxwm yog tus qauv, lwm lub rooj tsavxwm yog xaiv tau)

Host chassis

Standard built-in main control card (MAIN card) thiab audio card (AUDIO card)

Main tswj board (MAIN card)

Xws li 8 Gigabit Ethernet chaw nres nkoj (nrog rau 4 POE), 3 RS-232/485 chaw nres nkoj, 1 * RS232 / RS485 DEBUG, 2 RELAY chaw nres nkoj, 2 I / O chaw nres nkoj, 2 infrared IR chaw nres nkoj, 2 USB Hom-A chaw nres nkoj , 1 USB Hom-B chaw nres nkoj

Audio board (AUDIO card)

Tes-hauv-Hand digital audio hais lus, txhawb nqa 2 Tes-hauv-Hand digital microphone txuas nkag mus (DIGIT MIC network chaw nres nkoj), 8- txoj kev Phoenix davhlau ya nyob twg MIC / LINE input (txhawb 48V phantom fais fab MIC input lossis kab hauv linear input), 4-txoj kev Phoenix davhlau ya nyob twg kab audio LINE OUT tso zis, 4-txoj kev digital power amplifier output (4x200W @ 8Ω)

Tus tswv tsev chassis tuaj yeem nruab nrog cov boards xaiv raws li hauv qab no:

Plaub-channel HDMI input card CR-4I-HDMI

Board Hom

Ib daim npav plaub-channel HDMI input card, ntsia rau hauv tus tswv tsev rau kev xa khoom

Kev hloov kho tus tswv

Ib tus tswv tsev txhawb nqa txog li 2 HDMI input phaib

Input teeb liab

4-channel HDMI teeb liab, txhawb embedded audio signal input

Input Connectors

Hom A 19-pin poj niam connector

Hom teeb liab

HDMI, DVI-D, tsis siv neeg txheeb xyuas cov teeb liab tawm tswv yim

Kev daws teeb meem

Qhov siab tshaj plaws input daws teeb meem 4K30

Audio Format

Txhawb PCM hom ntawv

txheem

Txhawb HDMI 2.0

EDID Management

Txhawb EDID ntshuam

Lwm yam nta

Txhawb tus cwj pwm overlay muaj nuj nqi

Plaub-txoj kev HDMI tso zis daim npav CR-4O-HDMI

Board Hom

Ib daim npav plaub-channel HDMI tso zis daim npav, ntsia rau hauv tus tswv tsev rau kev xa khoom

Kev hloov kho tus tswv

Ib tus tswv tsev txhawb nqa txog li 2 HDMI tso zis phaib

Tso zis teeb liab

4-channel HDMI teeb liab, txhawb embedded suab teeb liab tso zis

Input Connectors

Hom A 19-pin poj niam connector

Hom teeb liab

HDMI, DVI-D

Kev daws teeb meem

Qhov siab tshaj plaws tso zis daws teeb meem 4K30

txheem

Txhawb HDMI 2.0

Lwm yam nta

Txhawb configurable tso zis hom

OPS Board CR-OPS-WIN

Board Hom

OPS pawg thawj coj saib, thauj khoom rau hauv tus tswv tsev rau kev xa khoom, cov qauv kev teeb tsa ua ke nrog OPS 11th tiam computer OPS-I5A11-16-512 (16G+512G), pre-installed Windows 11 Professional operating system; (Kev teeb tsa tshwj xeeb yuav raug xa mus)

Kev hloov kho tus tswv

Ib tus tswv tsev txhawb nqa txog li 1 OPS daim npav

OPS Kev Ua Haujlwm

(Kev teeb tsa tshwj xeeb yuav raug xa mus)

1. Rau cores thiab kaum ob threads;

2. Main zaus 2.7GHz-4.6GHz;

3. Cache qib 3 12MB;

4. Motherboard configuration: I5 11500;

5. Graphics card: Intel HD Graphics 750;

6. Kev daws teeb meem 5K60HZ;

7. Basic zaus: 350MHz;

8. Dynamic zaus: 1.3GHz;

9. CPU zog noj: 65W;

10. Lub zog ua haujlwm li qub: 85W;

11. Kev siv hluav taws xob siab tshaj plaws: 120W;

Wireless screen projection card & screen projection device CR-VIA-CAST

Board Hom

Lub wireless screen projection txais daim npav module yog nruab rau hauv tus tswv tsev rau kev xa khoom; lub wireless screen projection txais daim npav module los qauv nrog WIFI ib qho tseem ceeb screen transmitter pigtail VIA-T8; nws los ntawm tus qauv nrog 2 tus kav hlau txais xov luv luv, 2 kav hlau txais xov txuas ntxiv, thiab 2 lub khob nqus dej kom tiv thaiv lub txee los ntawm kev thaiv lub wireless screen projection teeb liab;

Kev hloov kho tus tswv

Ib tus tswv tsev txhawb nqa txog li 1 lub vijtsam wireless projection txais daim npav module

Wireless projection kev ua tau zoo

1. Wi-Fi module: 5GHz / 2.4GHz

2. Wi-Fi bandwidth: 867MHz

3. Lub sijhawm pib:<15s

4. Screen projection teb lub sij hawm: Tsawg dua los yog sib npaug rau 3s

5. Lub sij hawm teb preemption: Tsawg dua los yog sib npaug li 2s

6. Kev them nyiaj yug system: Windows / Mac OS / IOS / Android

7. Kev khiav hauj lwm hom: ntsaws thiab ua si, ib-nias screen projection

8. Pairing method: Ntxig USB chaw nres nkoj ntawm lub receiver kom ua khub

9. Transmission daws teeb meem: 1920 x 1080

10. Ncej tus nqi: 30fps thiab hauv qab no

11. Fais fab mov interface: USB2.0, USB3.0

12. Video kis tau tus mob interface: USB2.0, USB3.0

13. Kov tawm tswv yim: 10 ntsiab lus @Windows/Mac OS

Wireless Microphone Card & Handheld Microphone CR-MD-MIC

Board Hom

UHF wireless hais lus txais module board, ntsia rau hauv tus tswv tsev rau kev xa khoom; UHF wireless hais lus txais module board los nrog 2 wireless handheld microphones MD-13; los nrog 2 lub kav hlau txais xov luv luv, 2 lub kav hlau txais xov txuas ntxiv, thiab 2 lub khob nqus dej kom tiv thaiv lub txee los ntawm kev tiv thaiv lub teeb pom kev wireless;

Kev hloov kho tus tswv

Ib tus tswv tsev txhawb nqa txog li 1 UHF wireless hais lus txais module board

UHF wireless hais lus board ua haujlwm

Wireless microphone txais daim npav tsis:

1. Pom pom band ntau: 470-960MHz (nyob ntawm thaj tsam);

2. Suab teb: 20 Hz-18 kHz;

3. Tag nrho harmonic distortion:<1% (@AF1 KHz, RF46 dBu);

4. Dynamic range: >100 dB;

5. Signal-to-noise ratio: >92 dB;

Wireless handheld microphone parameters:

1. Handheld transmitter microphone core: dynamic hom;

2. Input nce ntau: 30 dB;

3. RF tso zis zog: 10 mw;

4. Lub zog yuav tsum muaj: 2 AA (LR6) alkaline roj teeb;

5. Roj teeb lub neej: mus txog 10 teev;

6. Loj: 36 x 245 (mm);

7. Nyhav: 0.28KG;
