Sau lub ntsiab ntawm Ruby T24

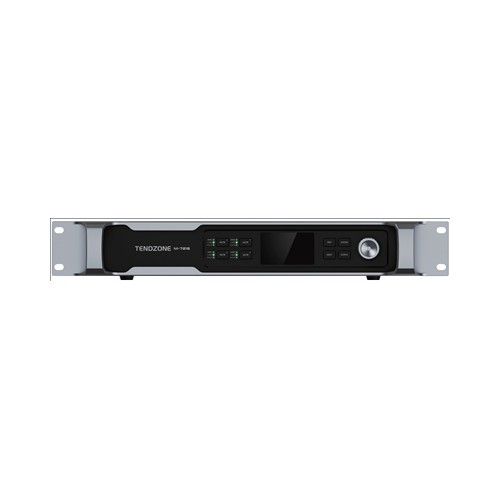

M -7216 yog ib lub cim tshiab qhib lub tshuab audio, Dante Network Audio, thiab UC Cov Suab Detio. Nws muab kev ua haujlwm xws li kev twb kev txuas, sib xyaw, kev coj ua, dav dav thiab ai ua, thiab tso zis ntau yam ntawm cov cim taw tes. Cov txheej txheem no tsom rau cov peev xwm ntawm cov chaw nkag mus, thiab muab cov chaw ua haujlwm tshaj tawm, thiab faib cov chaw zov me nyuam, thiab lwm yam.
Khoom nta
Digital Network Audio Access: Txhawb nqa cov chaw ua haujlwm network audio audio, txhim kho cov suab kaw suab sib xyaw ua ke thoob plaws cov sib txawv.
Ai Audio Ua :High-falinity ai algorithms,Ai- derieverberation, Ai-suab nrov tawm suab, Ai-Agc
Qhib Cov Qauv Suab Tsim Qauv Platform:
Siv Audio Tus Tsim Khoom Siv Ua Ntej Cov Cuab Yeej Siv, software qauv Drag-thiab-poob kev ua haujlwm, kev tswj cov logic.Build thiab pom kev ua haujlwm ua haujlwm,
Tsim los rau cov engineers nrog lub siab ua haujlwm.
Customizable ntsiab, cov qauv, thiab kev sib cuam tshuam.
Kev them nyiaj yug los txhais lub interface pib nplooj ntawv, nplooj dhia, tsim ntau txoj kev tswj hwm, hloov chaw tswj hwm thiab qhov loj me. Ib qho interface nkaus xwb tuaj yeem txhawb nqa ntau nplooj ntawv
Dynamic ControlS: Txhawb kev hloov kho kev sib hloov ntawm kev tswj hwm cov khoom thaum lub sijhawm ua haujlwm.
Cov suab paj nruag audio:8 Ntsuas microphone ntsuas / kab txuas, 8 hom kev tawm tswv yim tawm tsam, 2x2 UAC suab tawm suab, thiab ua kom muaj kev ua kom muaj zog-hauv audio thiab cov txheej txheem kev ua haujlwm.
Advanced Network Audio channel:Nrog 128 (64x64) redundant Dante network audio channel thiab 16 (8x8) audio prudio channel.
Qhib kev tswj raws cov txheej txheem: tuaj yeem tswj thiab tswj tau los ntawm lub network, RS232 serial chaw nres nkoj
PoE + Networking: Tsim nyob rau hauv 4 POE + Network cuam tshuam rau kev faib khoom thiab tswj hwm 4 AOIP (audio dua li IP) li.
A1D Qab Nthab Matrix Microphone: Built-in a1d matrix qab nthab array tsim thiab simulation cuab yeej
Presets: Khaws txog li 1000 presets rau kev rov nco qab ceev thiab teeb tsa kom ntseeg tau cov haujlwm tau zoo.
Daim ntawv muaj cai
Piam
Piam
ISO
ISO
Tsheb Vaj Huam Sib Luag
Cim npe nrov: Qhib architecture Ai DSP, Tuam Tshoj qhib Architecture Ai DSP Manufacturers, lwm tus neeg, Hoobkas
Cov lus qhia
|
Kev Ua Haujlwm General |
||
|
Ua Tseem Ceeb |
ADSP -21593}} / dual-core DSP + ARM / ANTTIAT-BUCT AM PRESSIONS / Built-in Npu Ai Neural Network Network Network Network Hwjchim |
|
|
Cov lej preset |
1000 |
|
|
Tus nqi ntsuas |
48KHZ, 24BUM |
|
|
Cov lus teb (A / D / A) |
2 {0 hz {-20 cmz (± 0.2db) |
|
|
Dynamic ntau ntau (A / D / A) |
>11 {{4 4} db, hnyav (20Hz {{{}} khak @ 0db nce) |
|
|
Cov suab nrov sib npaug |
Tsawg dua los yog sib npaug rau -125 dbu |
|
|
THD |
Tsawg dua los yog sib npaug rau {..,005%@1khz |
|
|
Channel rho tawm |
Tsawg dua lossis sib npaug rau -105 db @ {{+20 dbu, 1kHz |
|
|
Latency (A / D / A) |
5.8 MS, inputs routed kom tawm |
|
|
Lub tsheb nqaj hlau |
Tsawg dua lossis sib npaug rau -105 db @ {{+20 dbu, 1kHz |
|
|
S / n piv txwv |
>110dB |
|
|
Suab tawm tswv yim/ Tawm |
||
|
Tus txuas |
3.81 mm davhlau ya nyob twg |
|
|
Tus naj npawb ntawm analog channels |
8 Ntsuas microphone ntsuas / kab txuas ntxiv, 8 analog kab tawm |
|
|
Tus naj npawb ntawm Dante raws |
64 x 64 |
|
|
Phantom zog |
DC 48 ± 6V, 10MA |
|
|
Cov tswv yim impedance |
2Kω Tshuav |
|
|
Tso Tawm Impedance |
200ω tshuav nyiaj li cas |
|
|
Ntau tshaj plaws qib |
20Dbu |
|
|
Qhov ntau tshaj tawm qib theem |
20Dbu |
|
|
Max input tau txais |
40DB |
|
|
Max Tso Tawm |
Na |
|
|
Vaj huam sib luag |
||
|
Qhov taw qhia lub teeb |
Fais fab / khiav / Txuas |
|
|
Lub vijtsam zaub |
1.8 "Xim LCD zaub qhia cov cuab yeej cuab yeej cuab yeej cuab tam, tus IP addut / tso zis qib thiab ruam xwm txheej, software tam sim no, software version |
|
|
Xaiv lub pob |
Lub laub-rau-tig khawm |
|
|
Tsheb Vaj Huam Sib Luag |
||
|
UAC (USB Bidirectional Audio) |
2x2 suab daim npav, tus nqi ntsuas lej 48KHz, 16 ntsis, cov ntaub ntawv xa khoom USB2. {}}; |
|
|
USB |
Interface type yog USB-A thiab cov ntaub ntawv hloov raws tu qauv yog usb2. 0. Txhawb cov ntaubntawv povthawj thiab playback, tuaj yeem ua si cov ntaub ntawv audio, txhawb nqa Fat32 hom ntawv U disk, cov ntaub ntawv sau cov ntaub ntawv WAV |
|
|
Dante thawj & theem nrab |
/ |
2x1000mrj -45; 16x16; Txhawb kev rov ua dua tshiab, hloov hom; |
|
Rs232 |
4PIN 3.81Phoenix Terminal |
|
|
Tus gpio |
8CH, customized cov tswv yim thiab tso zis, 12pin 3.81 lub davhlau ya nyob twg |
|
|
LAN (TCP / IP network chaw nres paus) |
2 x ethernet 10/100 / 1000MB RJ45 4 x poe + |
|
|
Hluav Taws Xob thiab Lub Cev Tsis Txaus |
||
|
Kev pab fais fab |
Ac 100-240 v ± 10%, 50 / 60Hz |
|
|
Kev siv fais fab |
200W |
|
|
Kev khiav hauj lwm kub |
{{0 {}} degree -45 degree |
|
|
Tus txheeb ze cov av noo |
30%-70％R.H. |
|
|
Qho loj |
1.5U, 483 * 340 * 66mm |
|
|
Ntim Qhov Coob |
570mmx410mmx135mm |
|
